Navigation system connector (635h)

4D

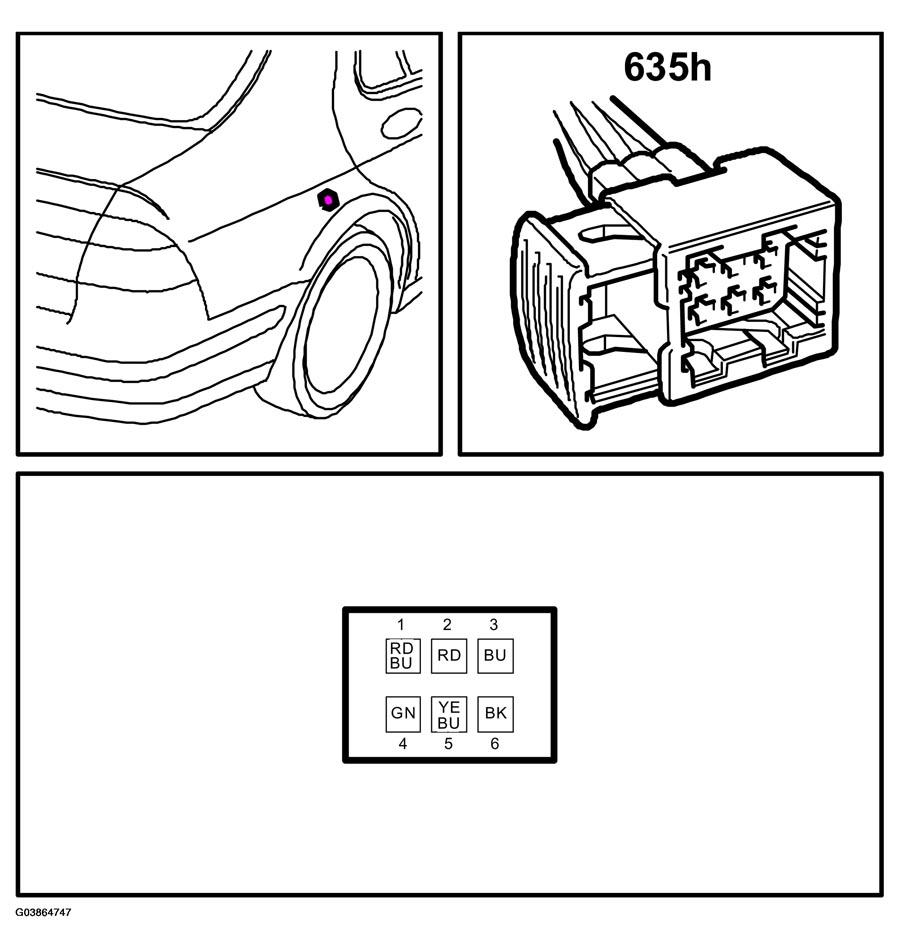

Fig 1: Identifying Navigation System Connector - 4D (635H)
G03864747Courtesy of SAAB-SCANIA OF AMERICA, INC.

5D

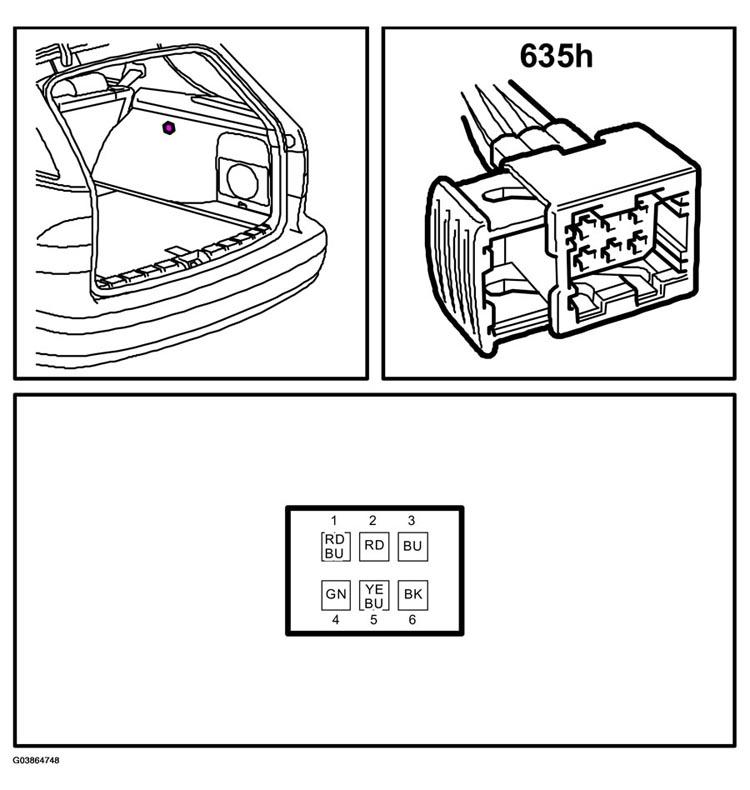

Fig 2: Identifying Navigation System Connector - 5D (635H)
G03864748Courtesy of SAAB-SCANIA OF AMERICA, INC.
