To fit

  1. Plug in the gyro sensor.
  2. Fit the gyro sensor to the bracket. Use a large screwdriver to pry aside the air duct slightly to access the left-hand screw.
    IMPORTANT: Fit the gyro sensor with the connector and arrow pointing forward in the car.

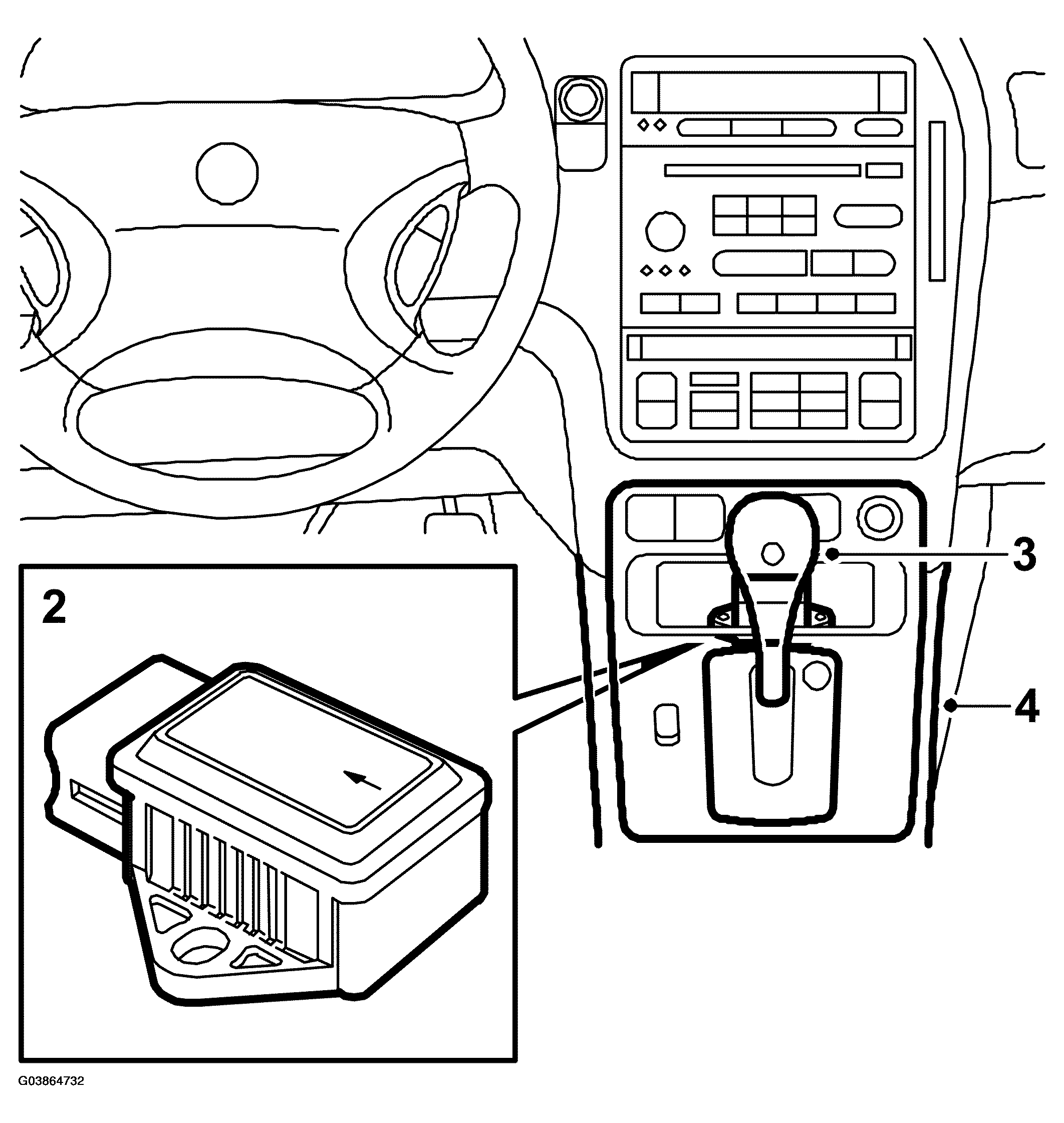

    Fig 1: Illustration For Step 2-4
    G03864732Courtesy of SAAB-SCANIA OF AMERICA, INC.

    Tightening torque 5 Nm (3.5 lbf ft)

  3. Manual gearbox: Fit the gear lever housing.
  4. Fit the centre console.
