To fit

  1. Fit the spark plugs.

    Tightening torque 20 Nm (15 lbf ft)

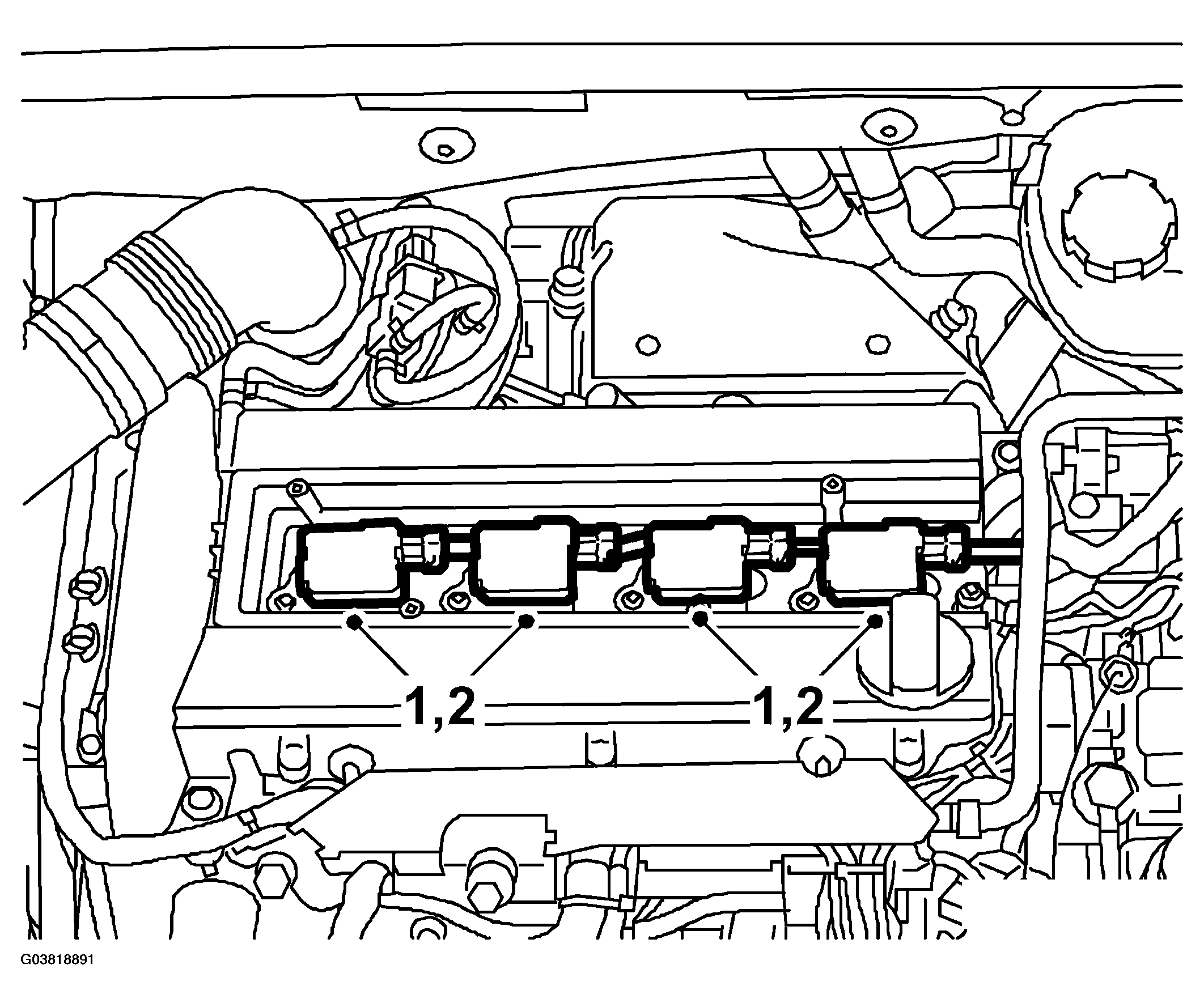

    Fig 1: Illustration For Step 1-2
    G03818891Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the ignition coils.

    Tightening torque 8 Nm (6 lbf ft)

  3. Fit the cover over the ignition coils.

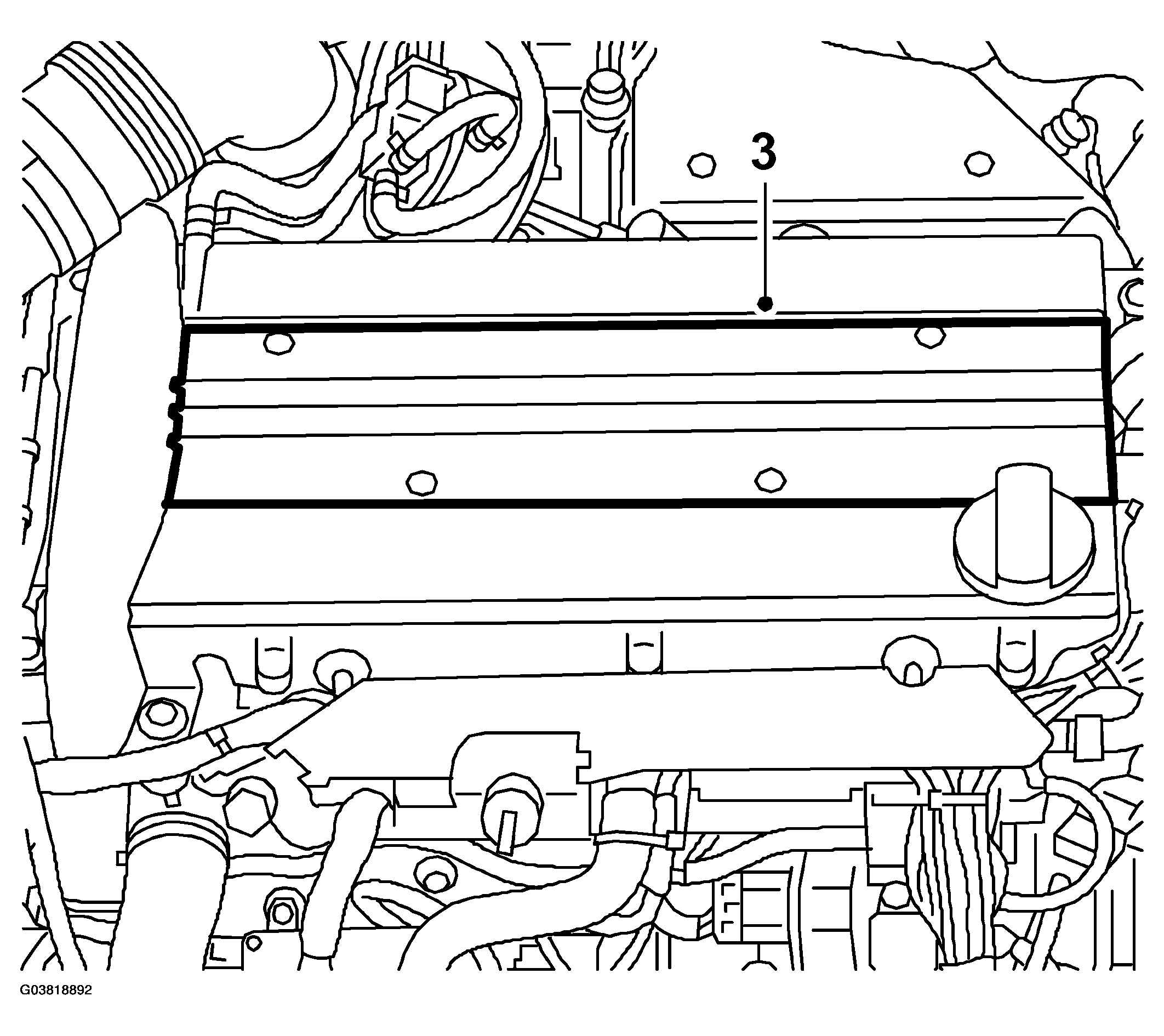

    Fig 2: Illustration For Step 3
    G03818892Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the test cable and put back relay no. 8.
