Crimp connection J3, front harness: Notes

Location:  Approx. 230 mm from branching of grounding point G31 towards the left headlamp

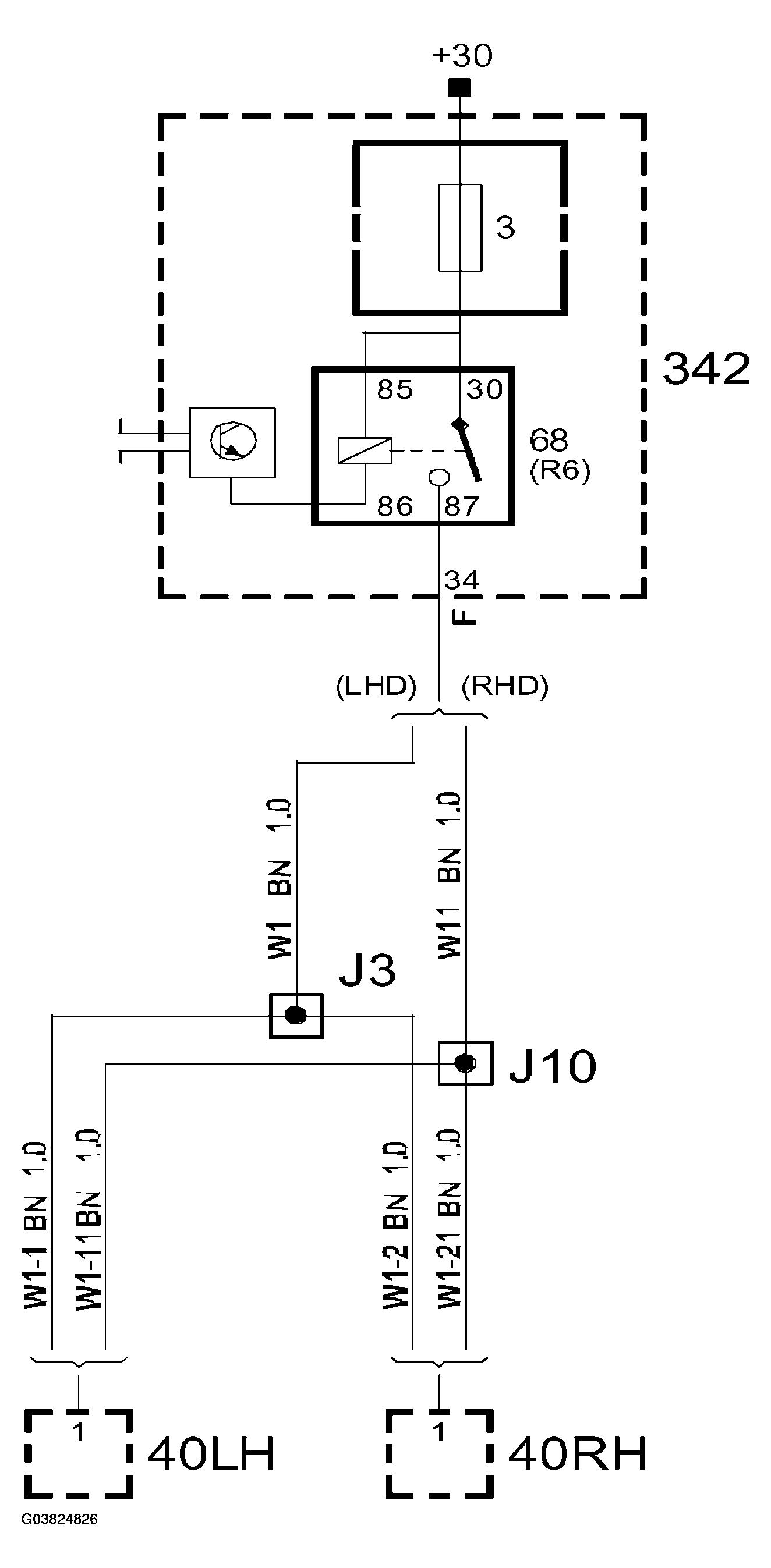

Fig 1: Crimp Connection J3, Front Harness Circuit
G03824826Courtesy of SAAB-SCANIA OF AMERICA, INC.
