Crimp J10, front harness: Notes

Location: Approx. 230 mm from branching point grounding point G31 towards LH headlamp

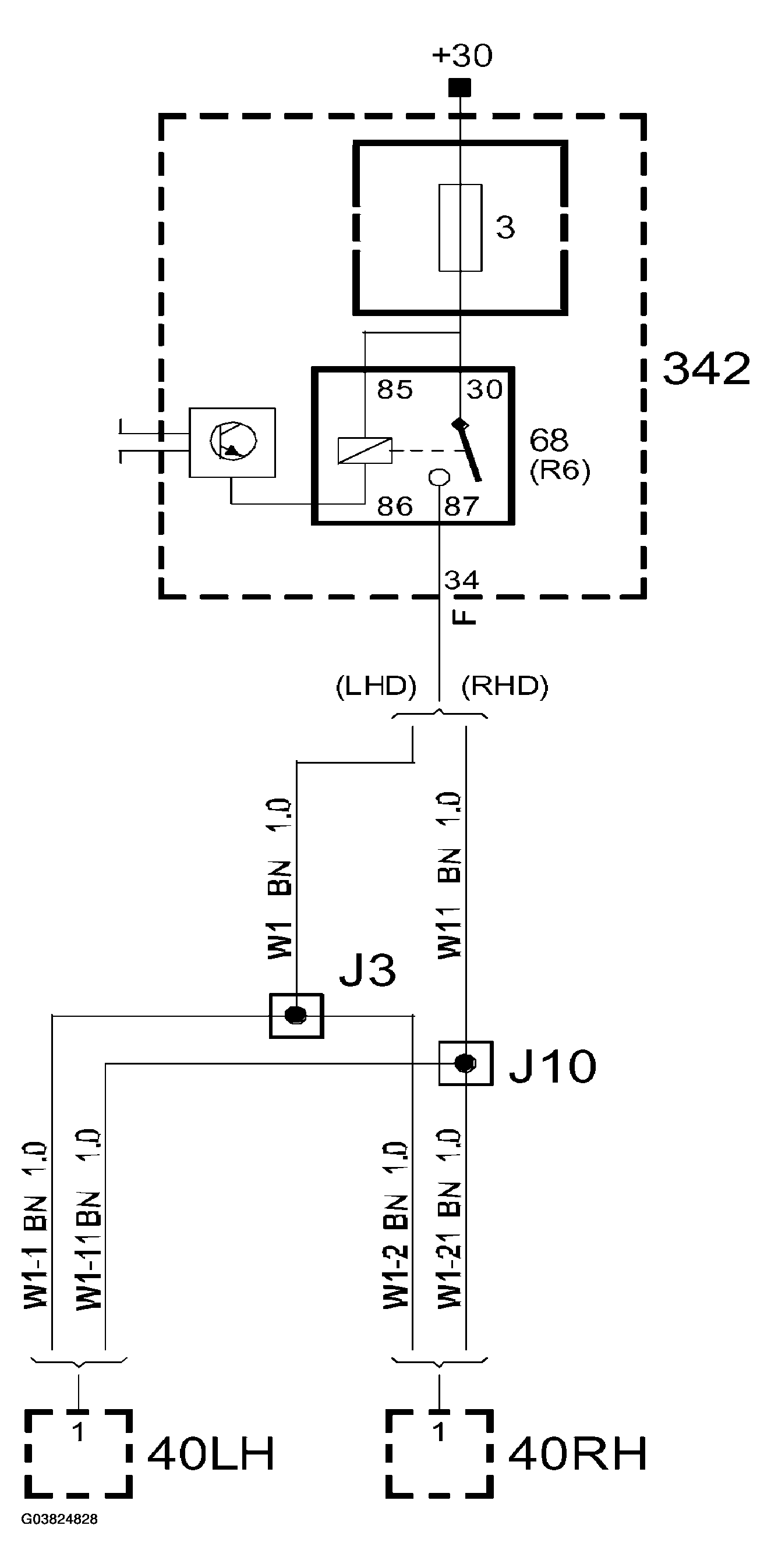

Fig 1: Crimp J10, Front Harness Circuit

G03824828

Courtesy of SAAB-SCANIA OF AMERICA, INC.
