To fit

  1. Fit the flywheel with new bolts. Use 74 96 292 Thread locking adhesive to the bolts. Tighten alternately.

    Tightening torque, Z19 160 Nm (118 lbf ft)

    Tightening torque, B207 65 Nm + 40° (48 lbf ft + 40°)

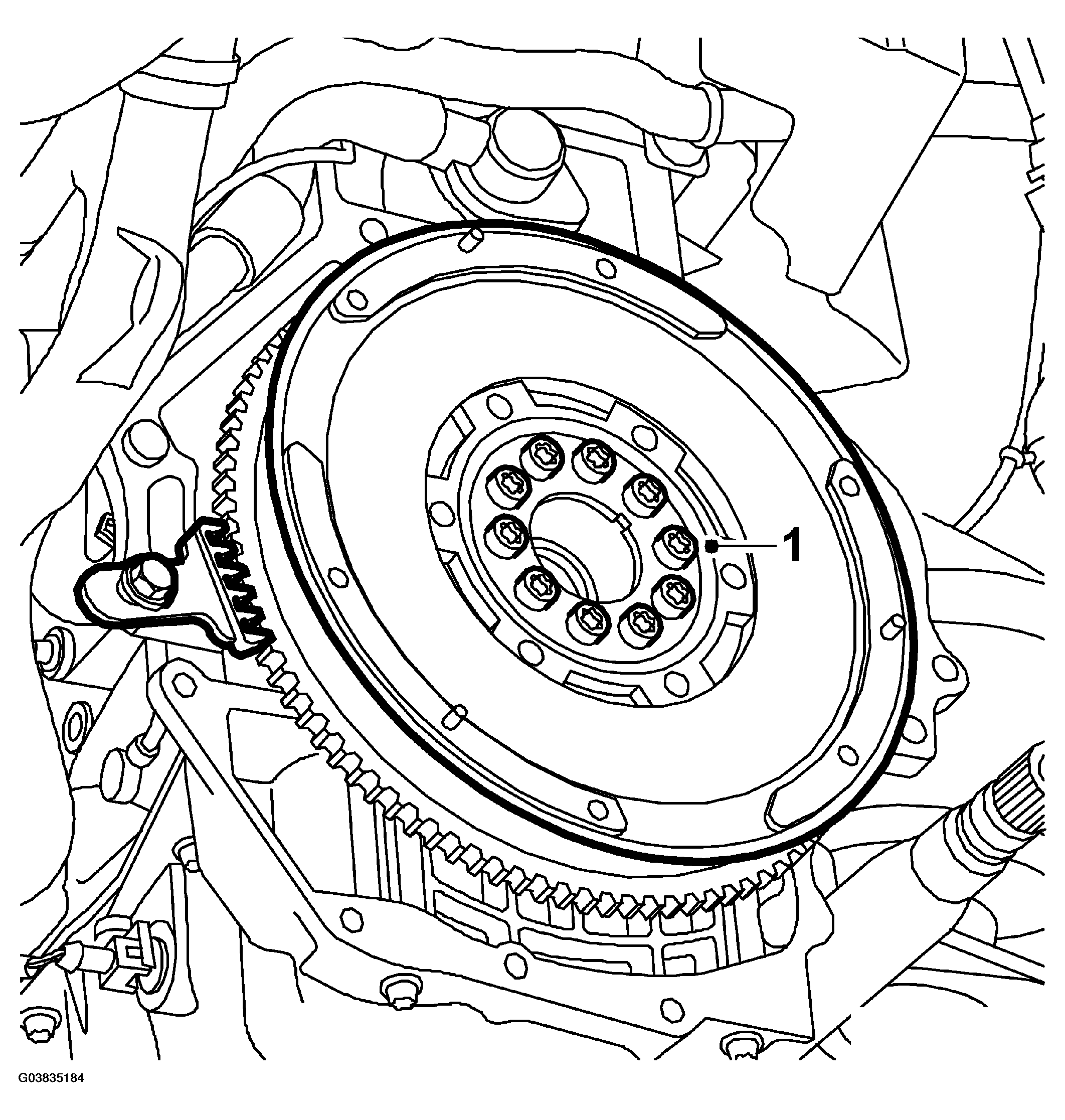

    Fig 1: Illustration For Step 1
    G03835184Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit CLUTCH ASSEMBLY  .
  3. Fit 5-SPEED ,5-SPEED, F17 , or 6-SPEED .
