To fit

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector.
  1. Plug in the control module connector and fit the clip.

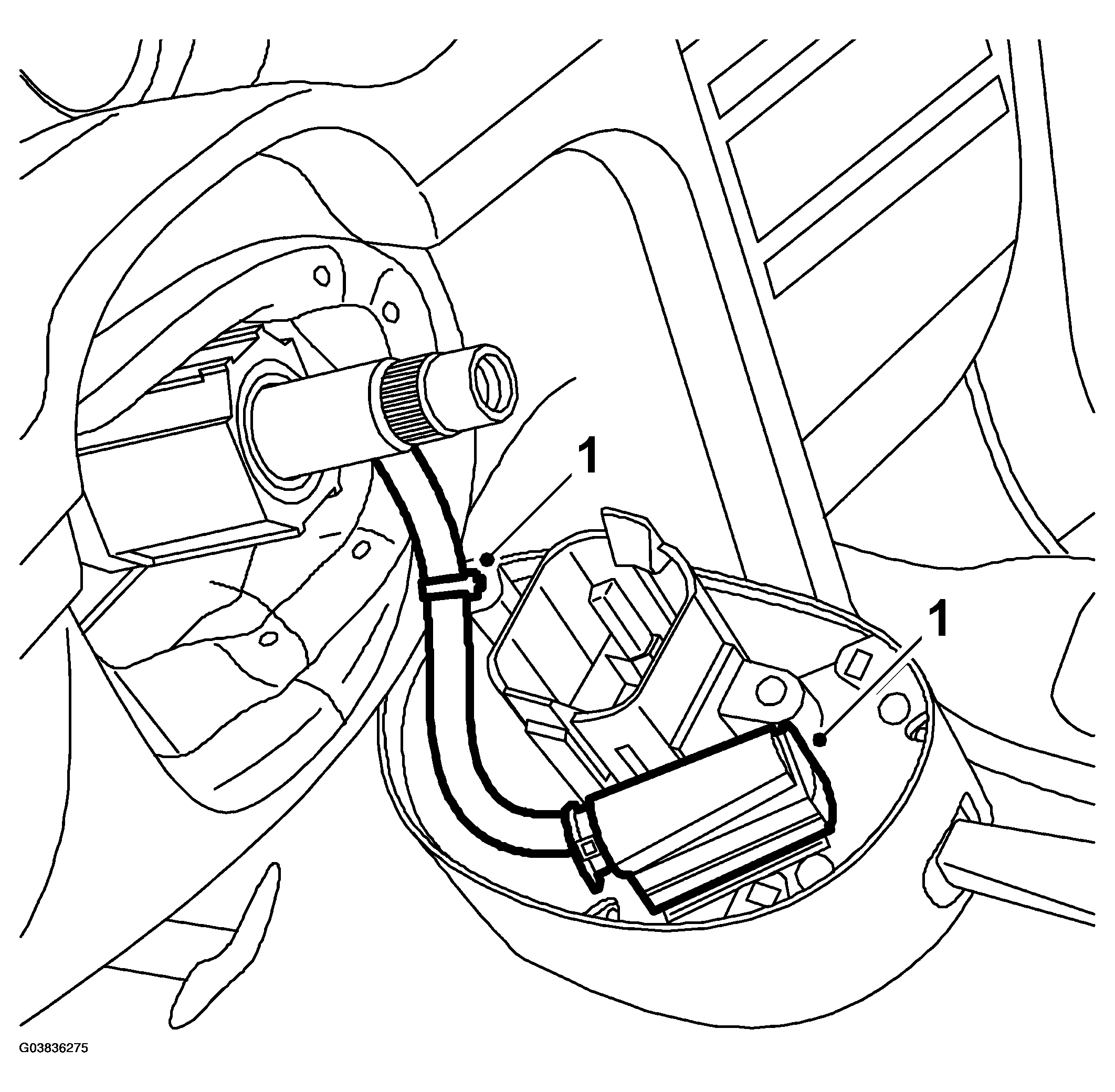

    Fig 1: Illustration For Step 1
    G03836275Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the control module to the steering shaft.

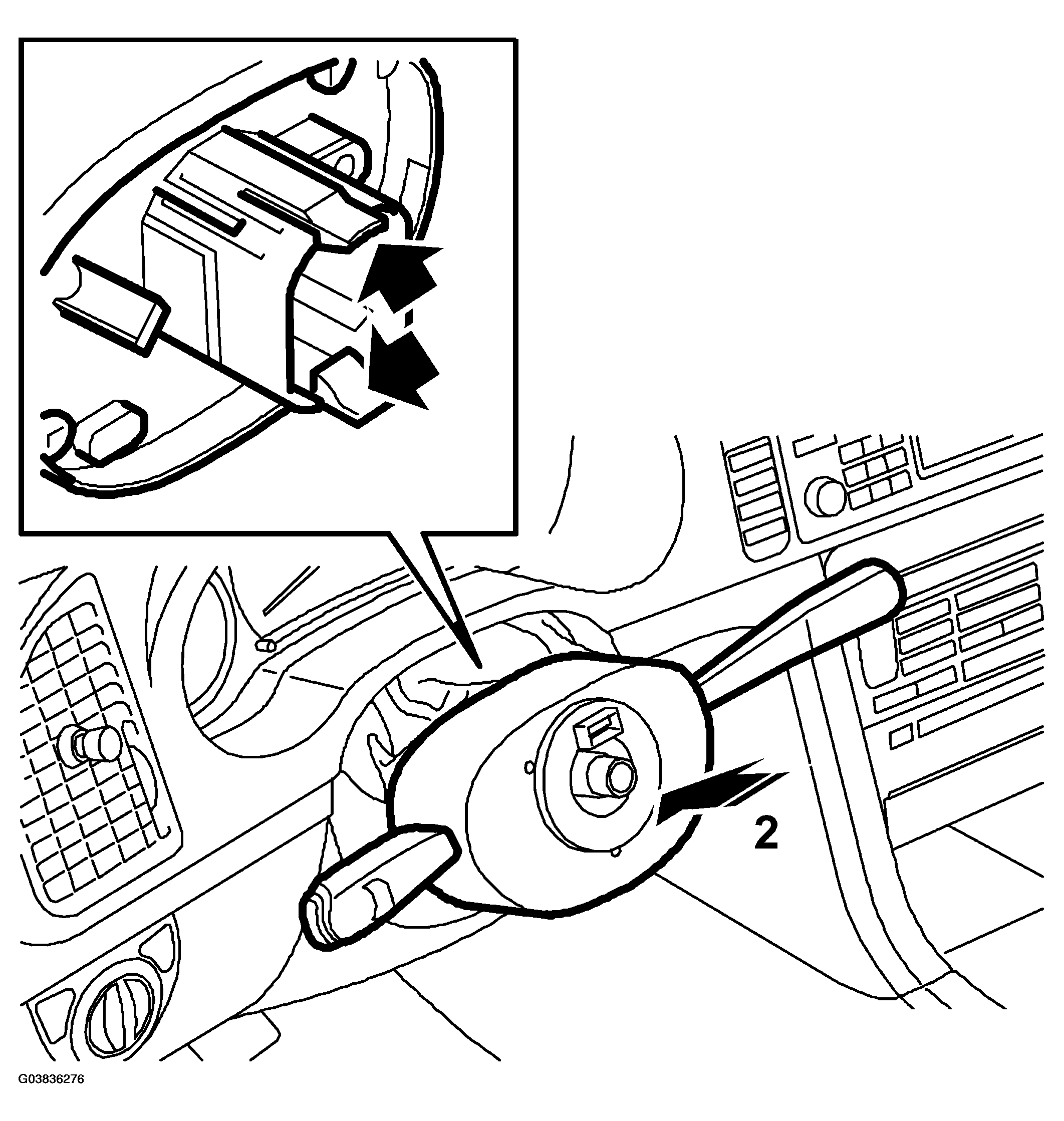

    Fig 2: Illustration For Step 2
    G03836276Courtesy of SAAB-SCANIA OF AMERICA, INC.

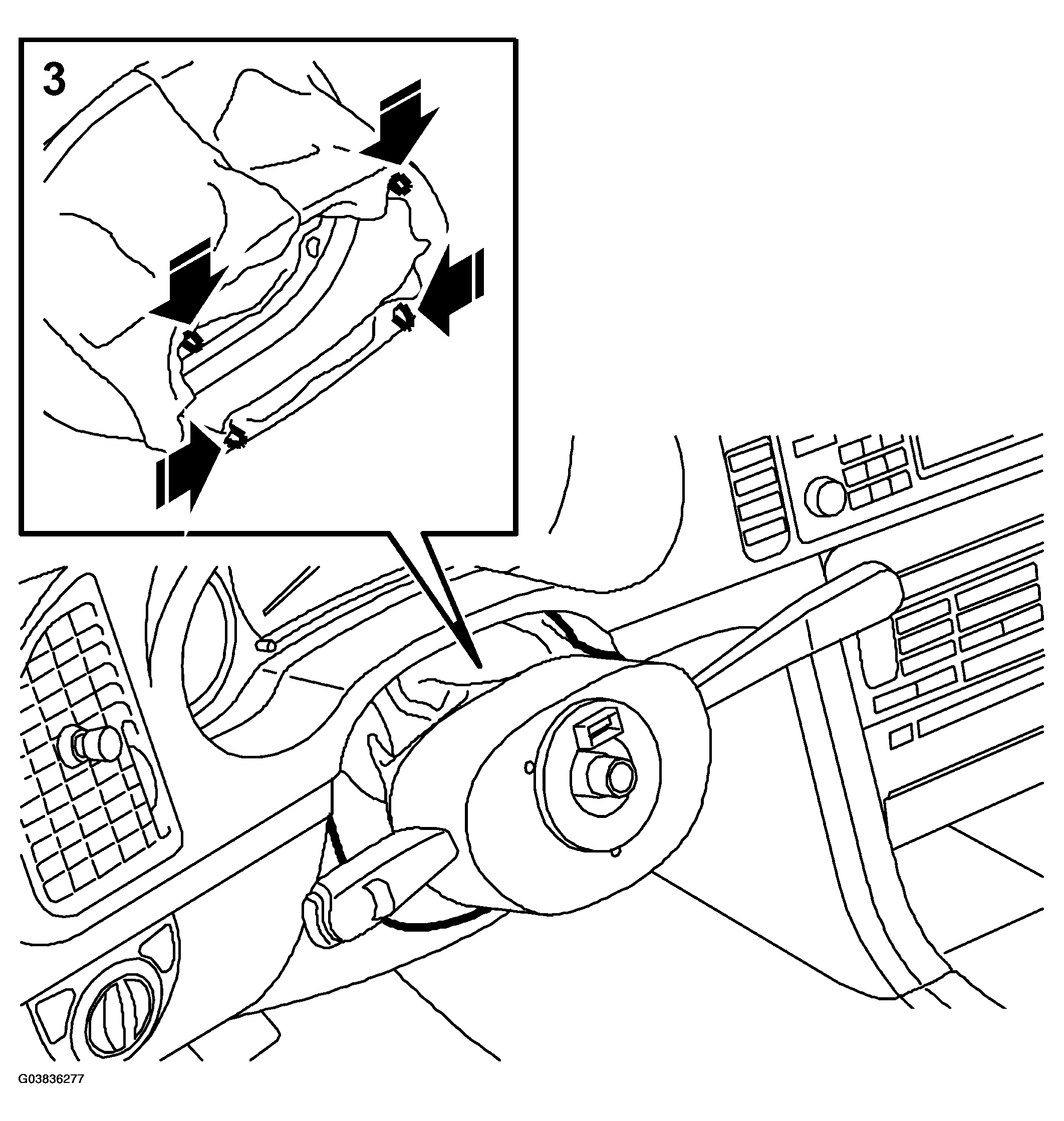

    3. Fig 3: Illustration For Step 3
    G03836277Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the gaiter to the control module.
  4. FIT THE STEERING WHEEL  .
  5. Carry out procedure WHEN THE CONTROL MODULE IS TO BE REPLACED .
