To fit

WARNING: This page is about a different car, the 2004 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

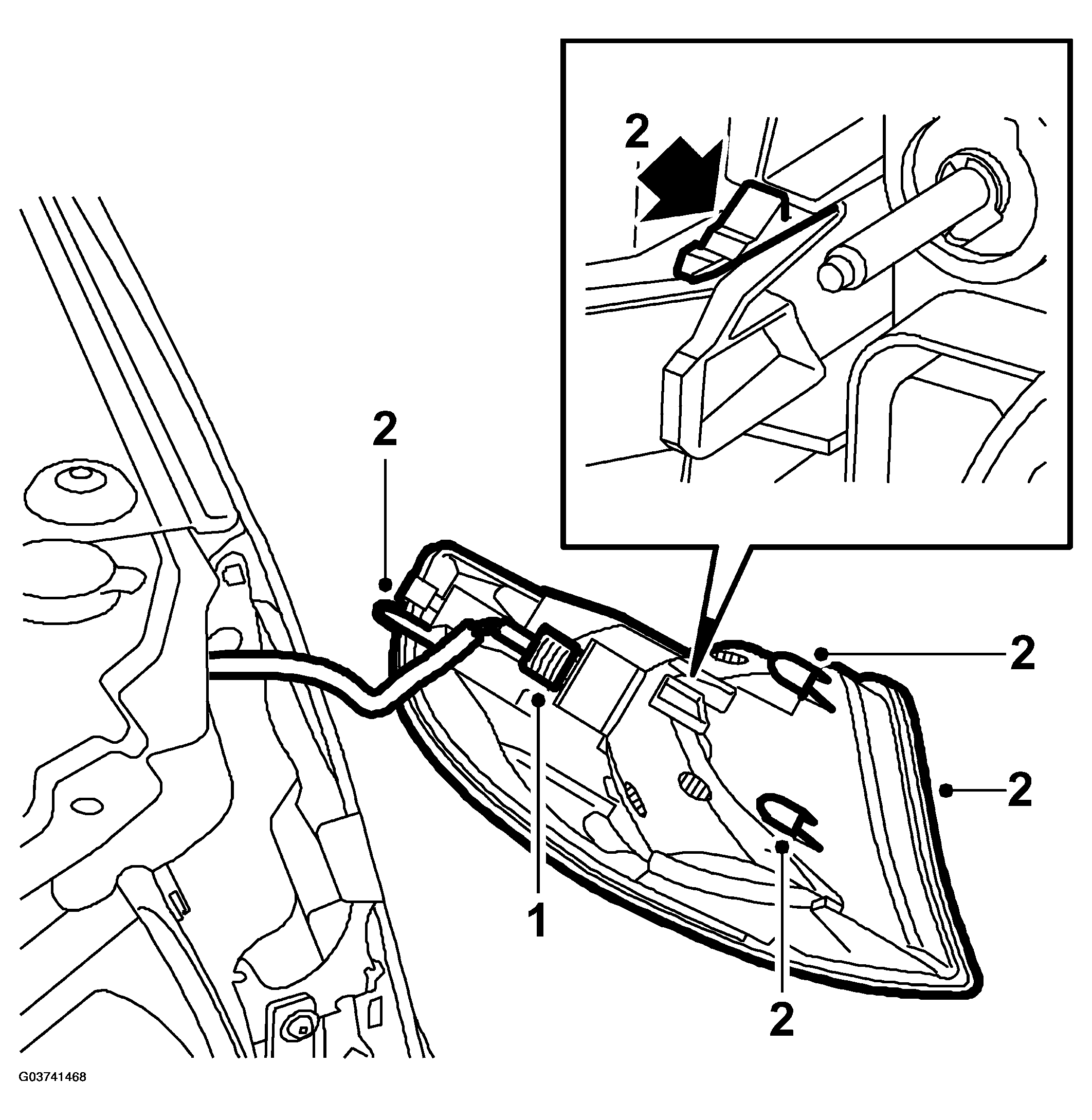

Fig 1: Fitting Direction Indicators, Front
G03741468Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Plug in the direction indicator.
  2. Place the direction indicator so that the three guide pins are correctly located. Press on the direction indicator, making sure the clip fastens properly.
  3. LH  : Fit the upper part of the battery cover.
