Main relay, engine control system (229)

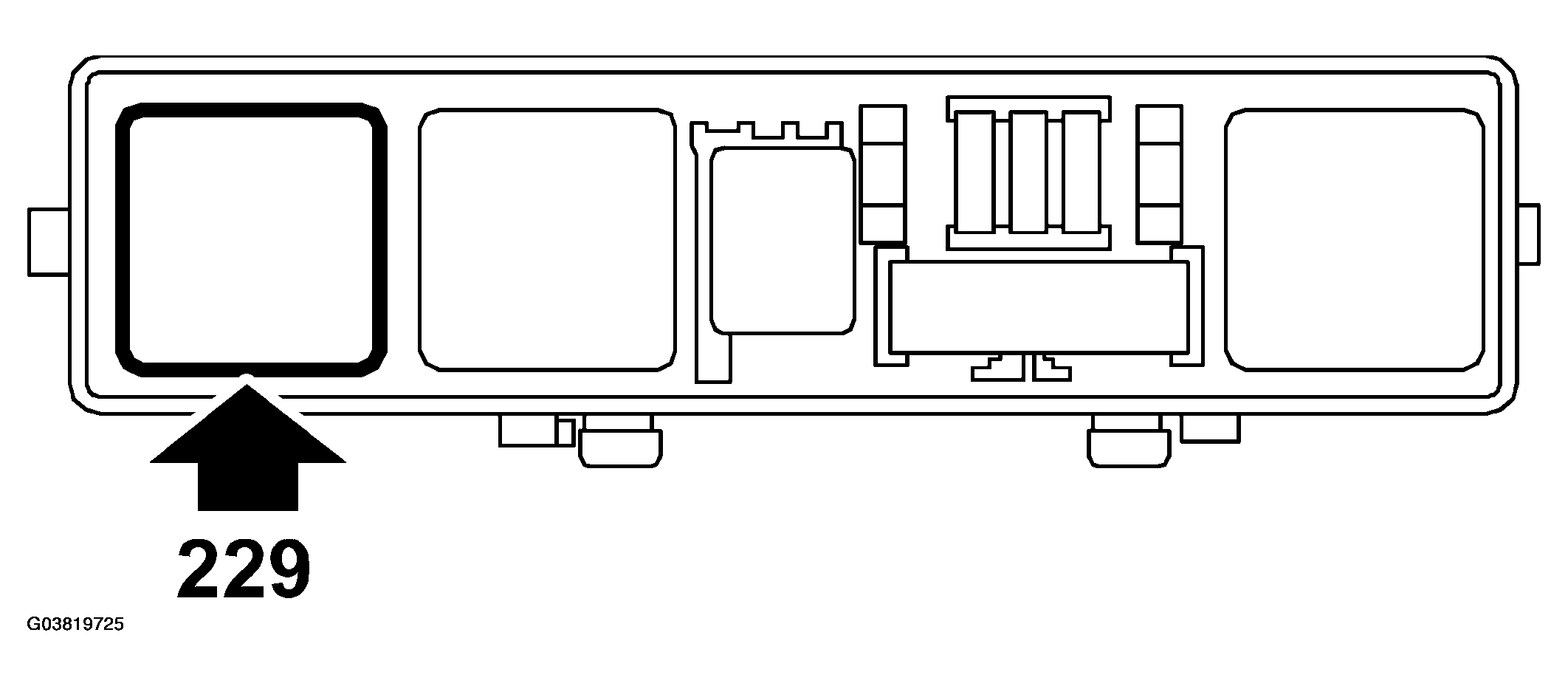

Fig 1: Identifying Main Relay, Engine Control System
G03819725Courtesy of SAAB-SCANIA OF AMERICA, INC.
ENGINE CONTROL SYSTEM SPECIFICATION

Resistance, winding at 20°C (68°F) 85+/-5 Ohm
Nominal control voltage 12 V
Nominal current 30 A
