Main relay, engine control system (229): Location:

in the main fuse box in front of battery

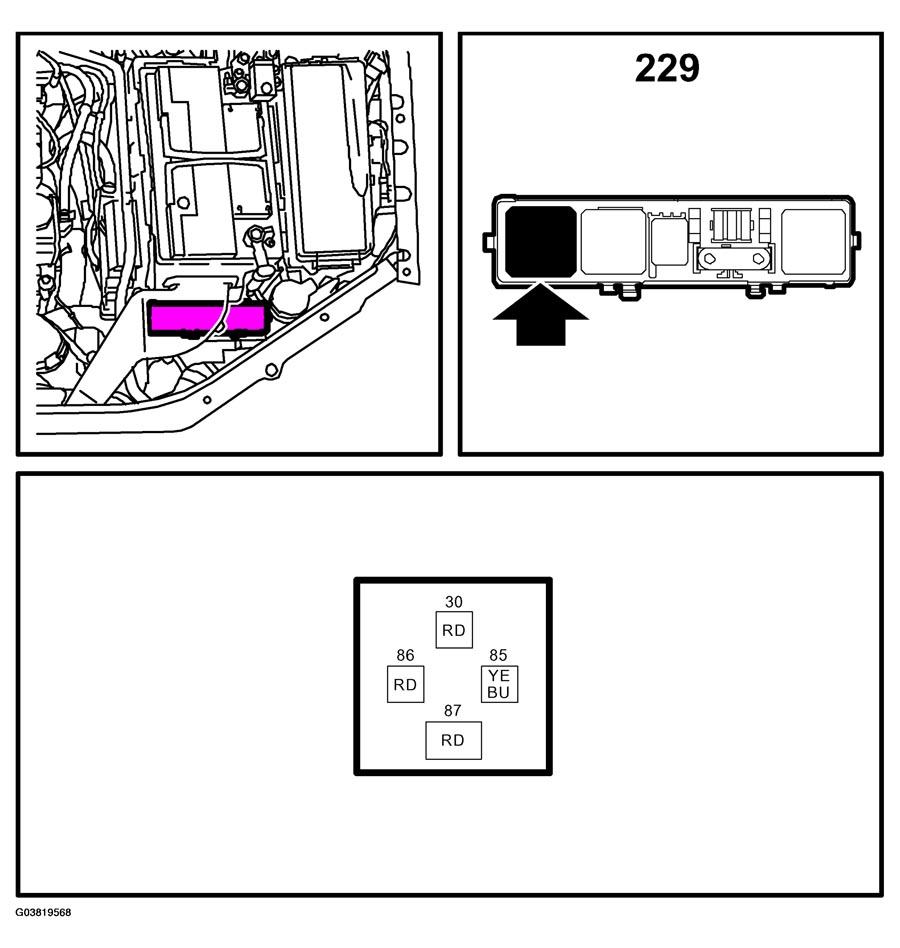

Fig 1: Locating Main Fuse Box

G03819568

Courtesy of SAAB-SCANIA OF AMERICA, INC.
