Exterior lighting

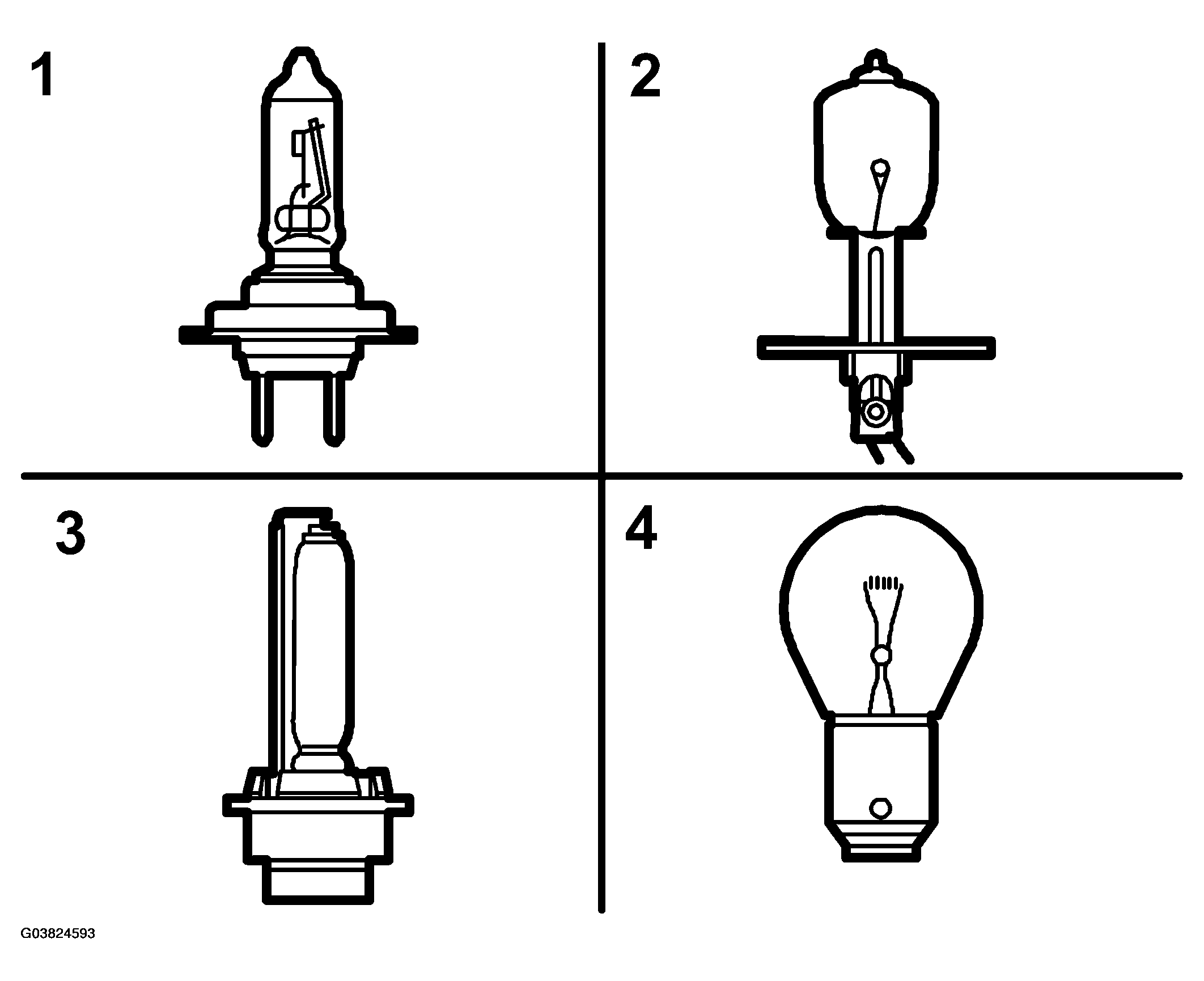

EXTERIOR LIGHTING - TECHNICAL DATA
| Rating (W) | Fitting | Position | |
|---|---|---|---|
| Headlamps (dipped beam) | 55 | H7 | 1 |
| Headlamps (main beam) | 55 | H7 | 1 |
| Front fog lights | 55 | H3 | 2 |
| Xenon headlamps (main and dipped beam) | 35+/-3 | D2S | 3 |
| Front direction indicators (amber lamp) Rear direction indicators (amber lamp) |
21 | BAU 15s amber | 4 |

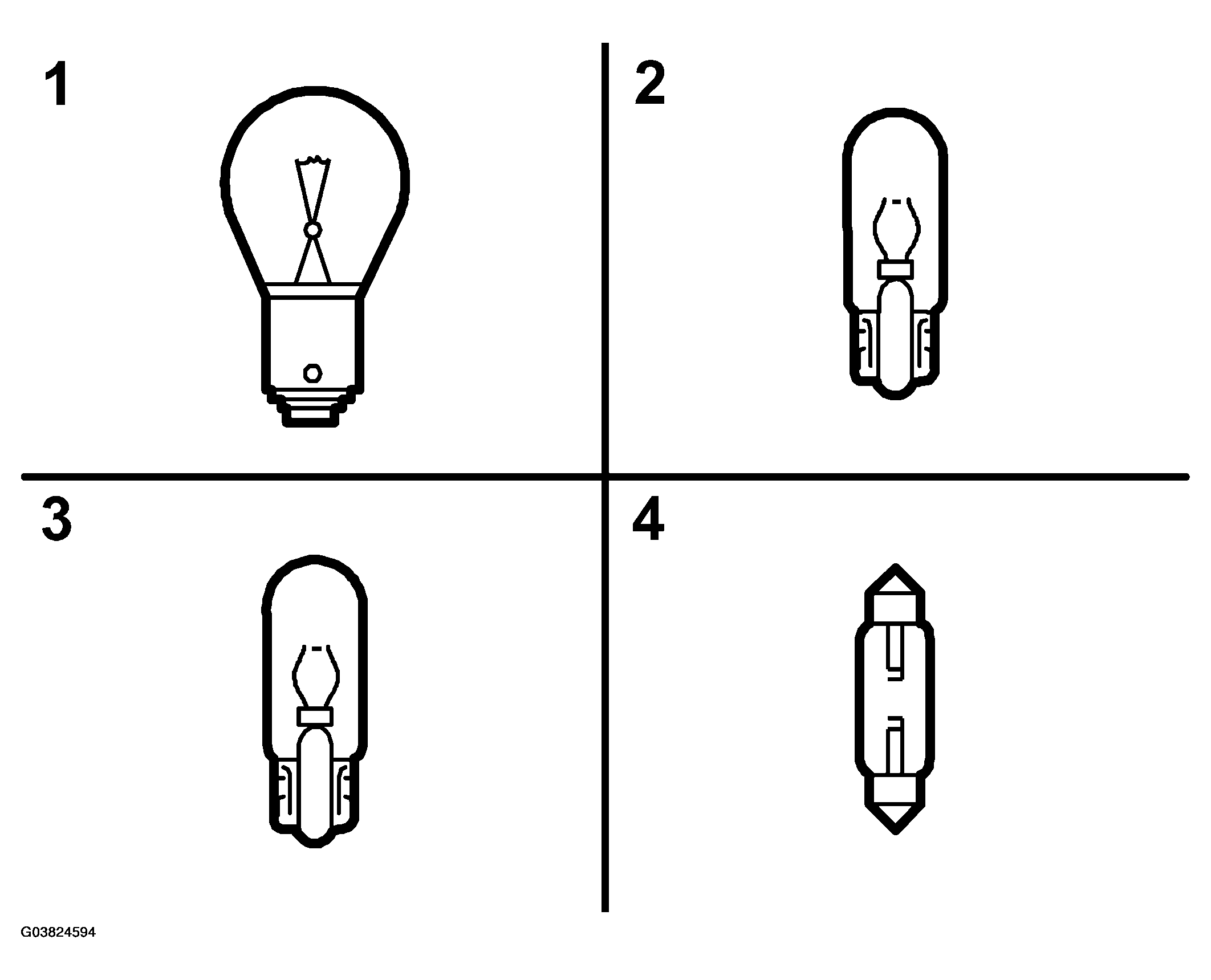

EXTERIOR LIGHTING - TECHNICAL DATA
| Rating (W) | Fitting | Position | |
|---|---|---|---|
| Brake lights/parking lights Rear fog light Reversing lights |
21 | BA 15s | 1 |
| High-level brake light | 4 | LED | |
| Front parking lights Side marker lights, certain markets |
5 | W2.4x9.5d | 2 |
| Side direction indicators (amber lamp) | 5 | W2.4x9.5d | 3 |
| Number plate lighting | 5 | SV 8.5-8 | 4 |
