Side direction indicators: Replacing

IMPORTANT: When changing a bulb, select a new bulb of the correct rating to prevent the components being damaged.
  1. Press the lamp housing forward slightly and release its back edge.

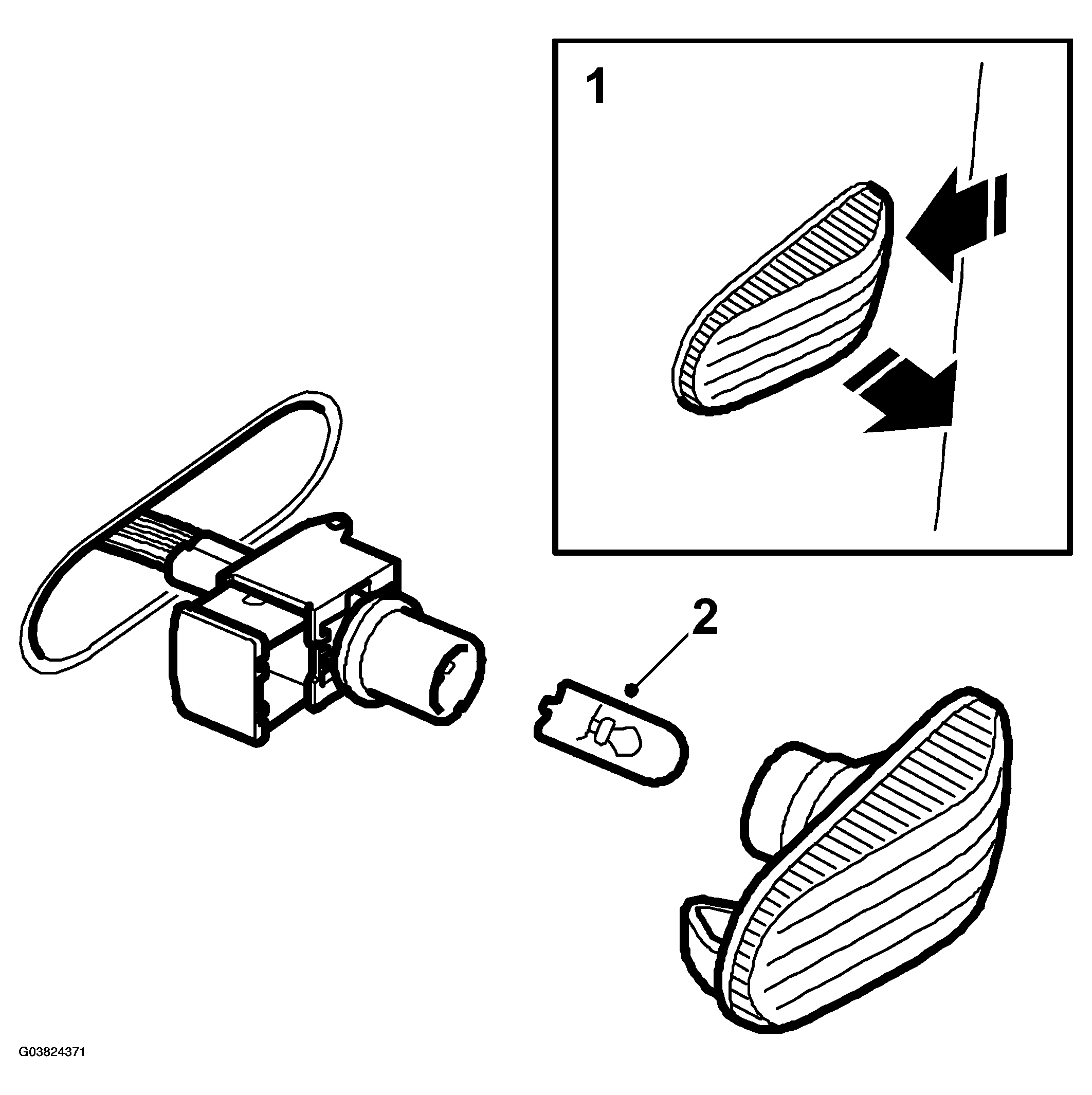

    Fig 1: Illustration For Step 1-2
    G03824371Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove and change the bulb.
  3. Fit the back edge of the lamp housing first and then press in the front edge.

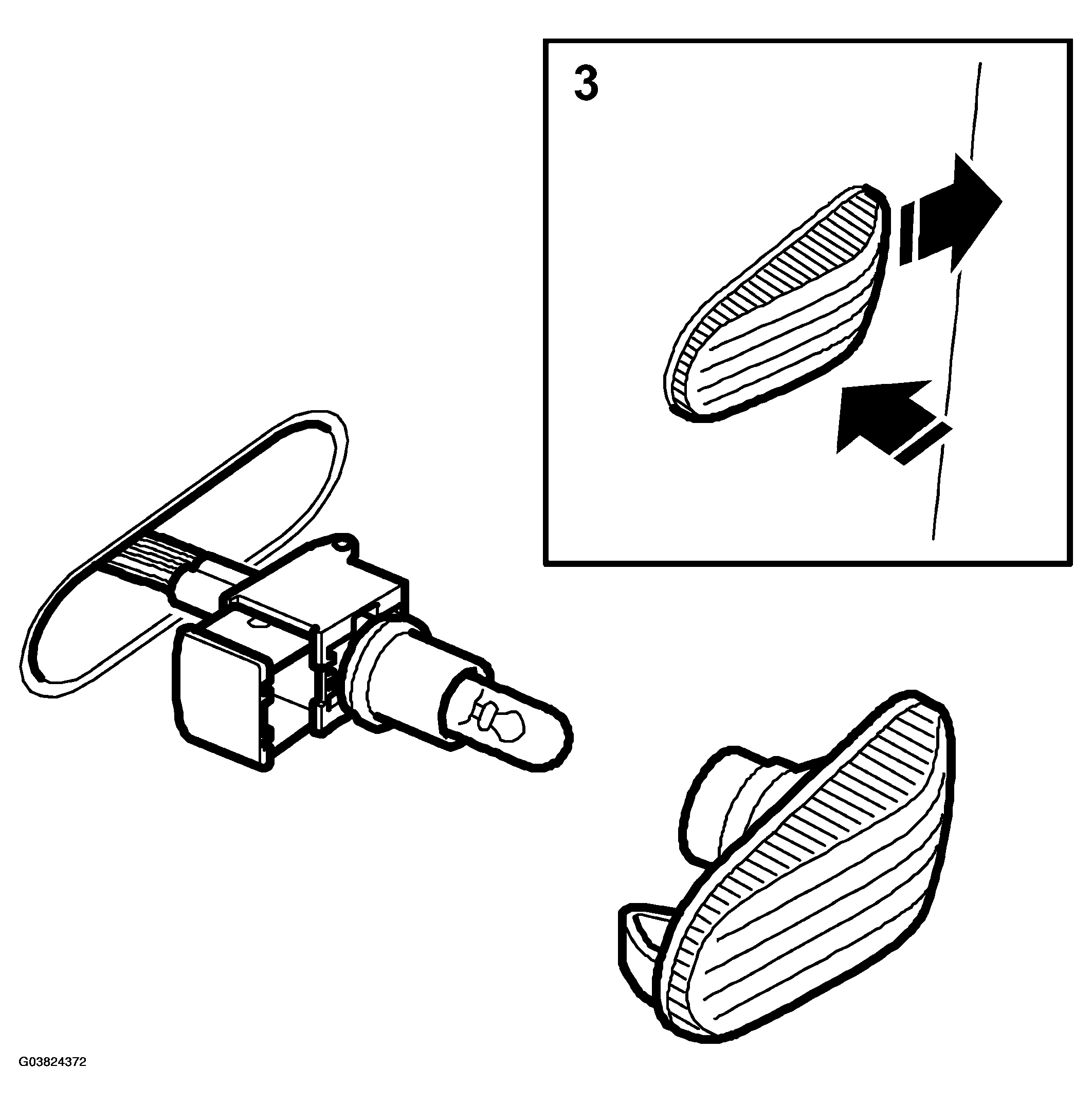

    Fig 2: Illustration For Step 3
    G03824372Courtesy of SAAB-SCANIA OF AMERICA, INC.
