Test readings TCS (382)/ESP (671): Scope

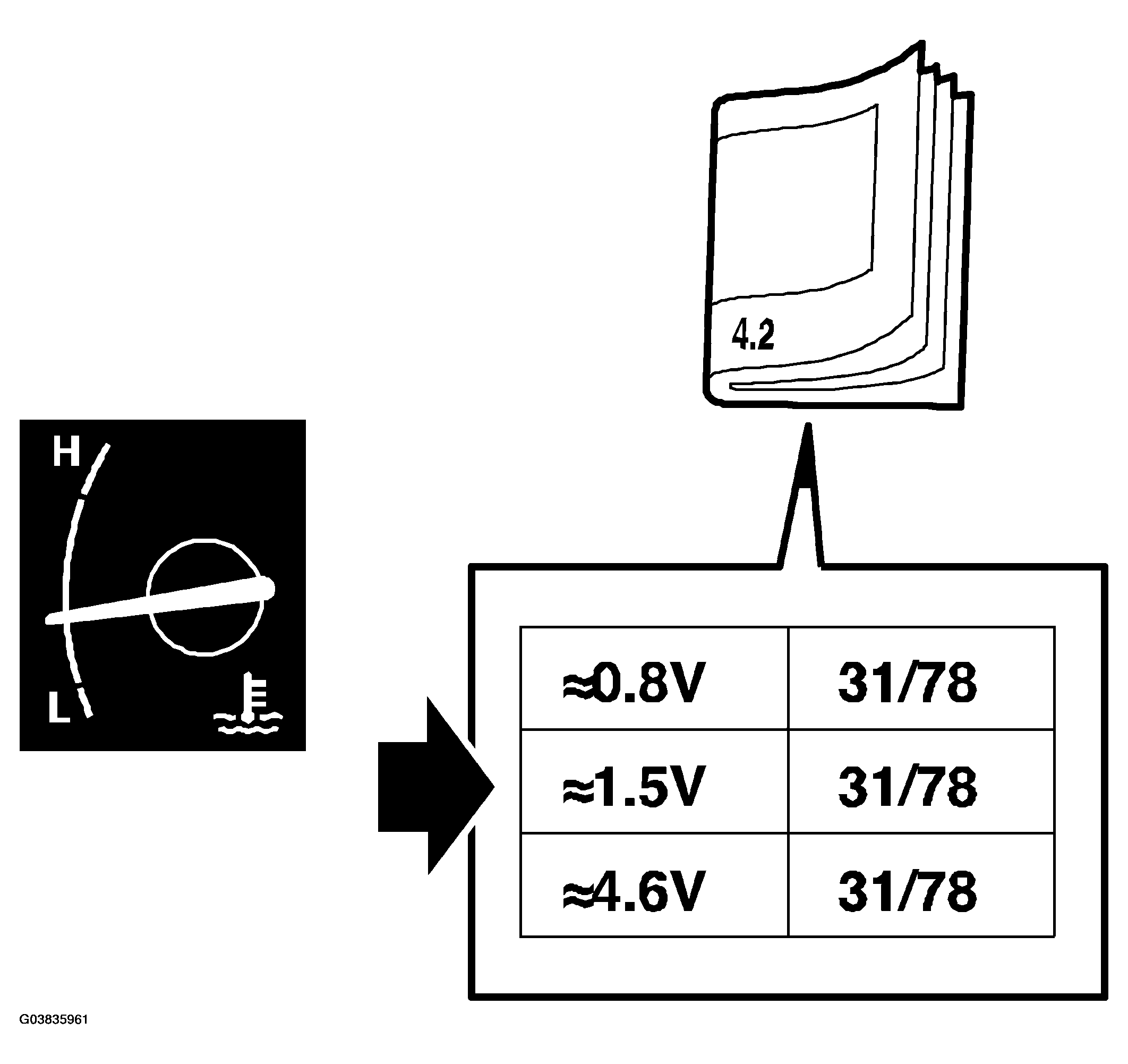

Fig 1: Testing TCS And ESP Readings (2 Of 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Following are readings and directions for measuring signals and levels of the transmission control module. Pin numbers missing in the table are not used.

Remember

• Observe the test criteria and use common sense when assessing the test results.
• The test reading presented here are with the ignition ON unless stated otherwise.
• Check first that the control module is receiving power and is grounded.
• Then check all the sensor inputs and signals from other systems.
• Finally, check the control module outputs. Remember that test values do not confirm whether the actuator is in working order.
• If any of the test readings is incorrect, use the wiring diagram to locate the leads, connectors or components that should be checked further.
• Specified test readings are for a calibrated Fluke 88/97.
• Test readings %(+) and ms(+) show the signal pulse ratio and pulse width respectively. A scan tool that can measure pulse ratio and pulse width respectively must be used. The sign indicates a positive trigger pulse, TRIG+.
