Fuse 6, instrument panel electrical center 22: Notes

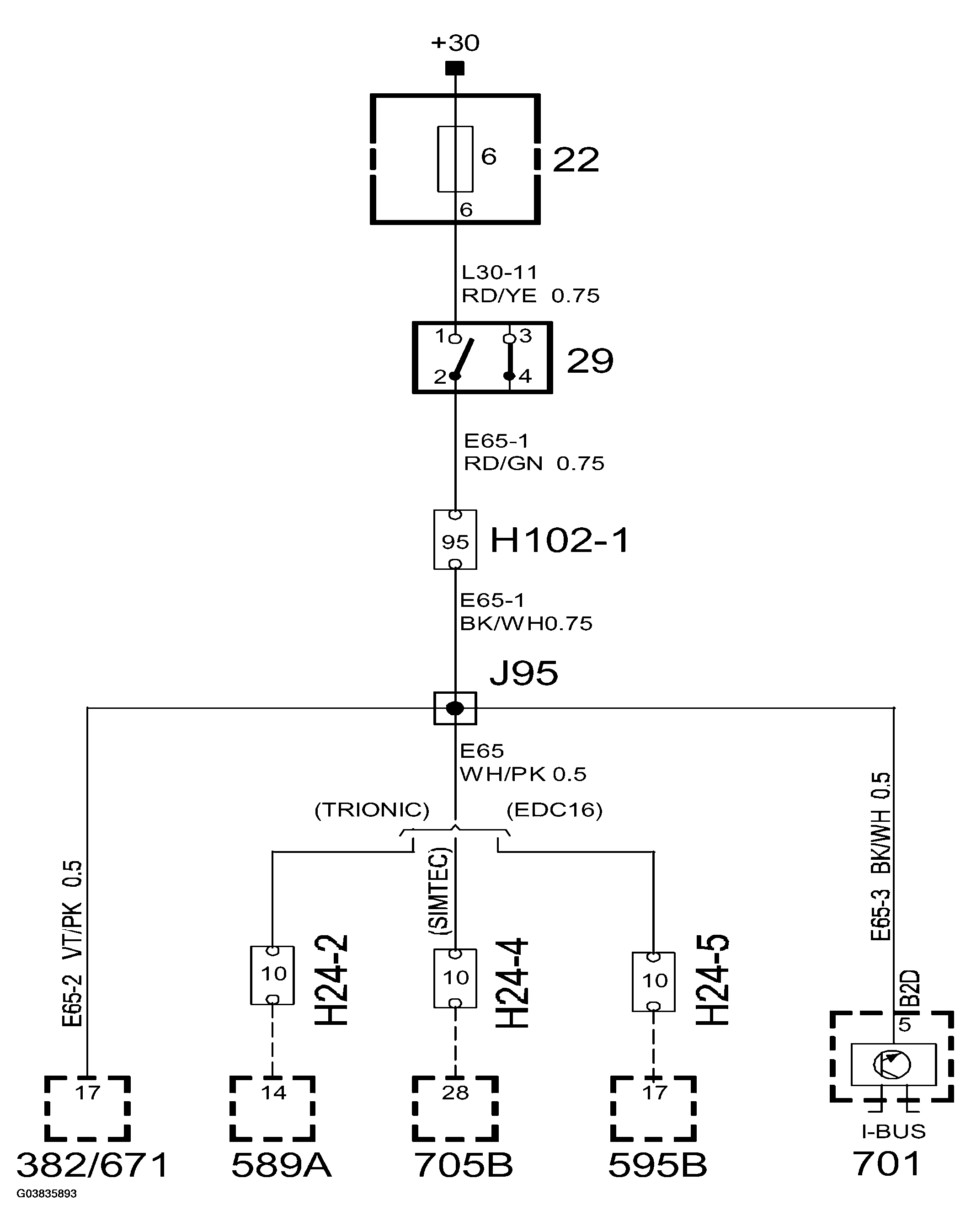

Fig 1: Instrument Panel Electrical Centre Circuit Diagram (Fuse 6)

G03835893

Courtesy of SAAB-SCANIA OF AMERICA, INC.
