Connector H24-1

Location: black connector in front of the battery under the left-hand structural member

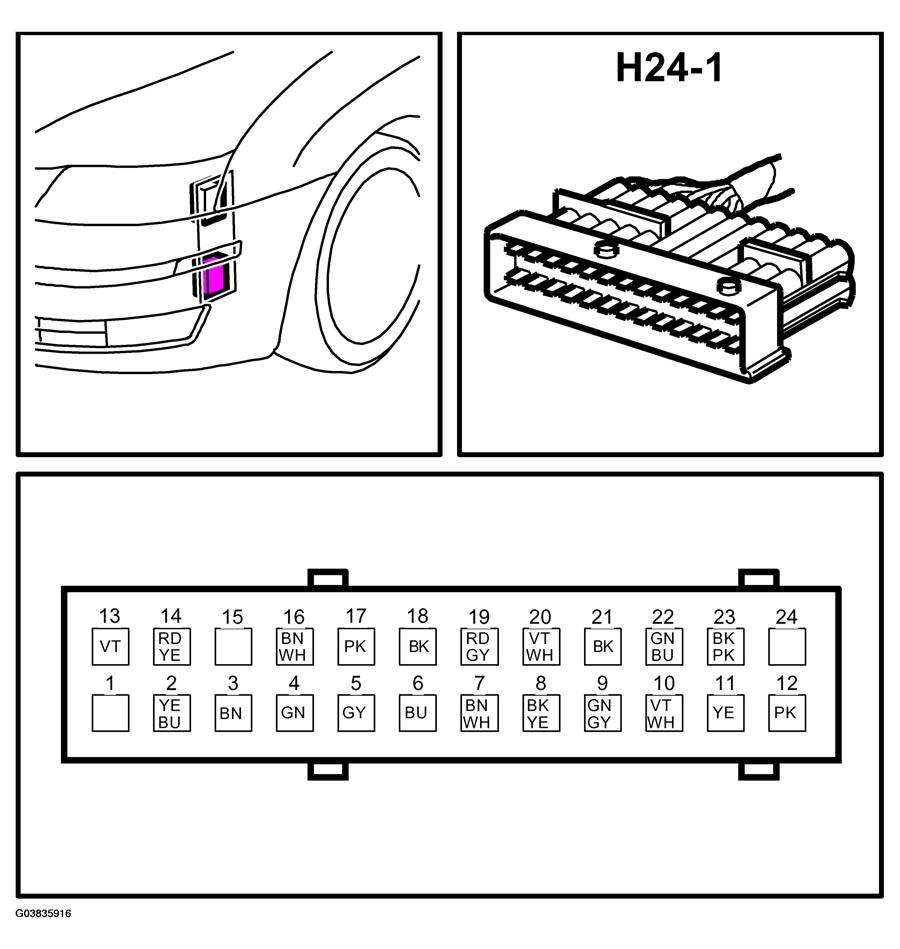

Fig 1: Identifying Connector H24-1

G03835916

Courtesy of SAAB-SCANIA OF AMERICA, INC.
