Switch unit (357D)
Switch unit (357D)

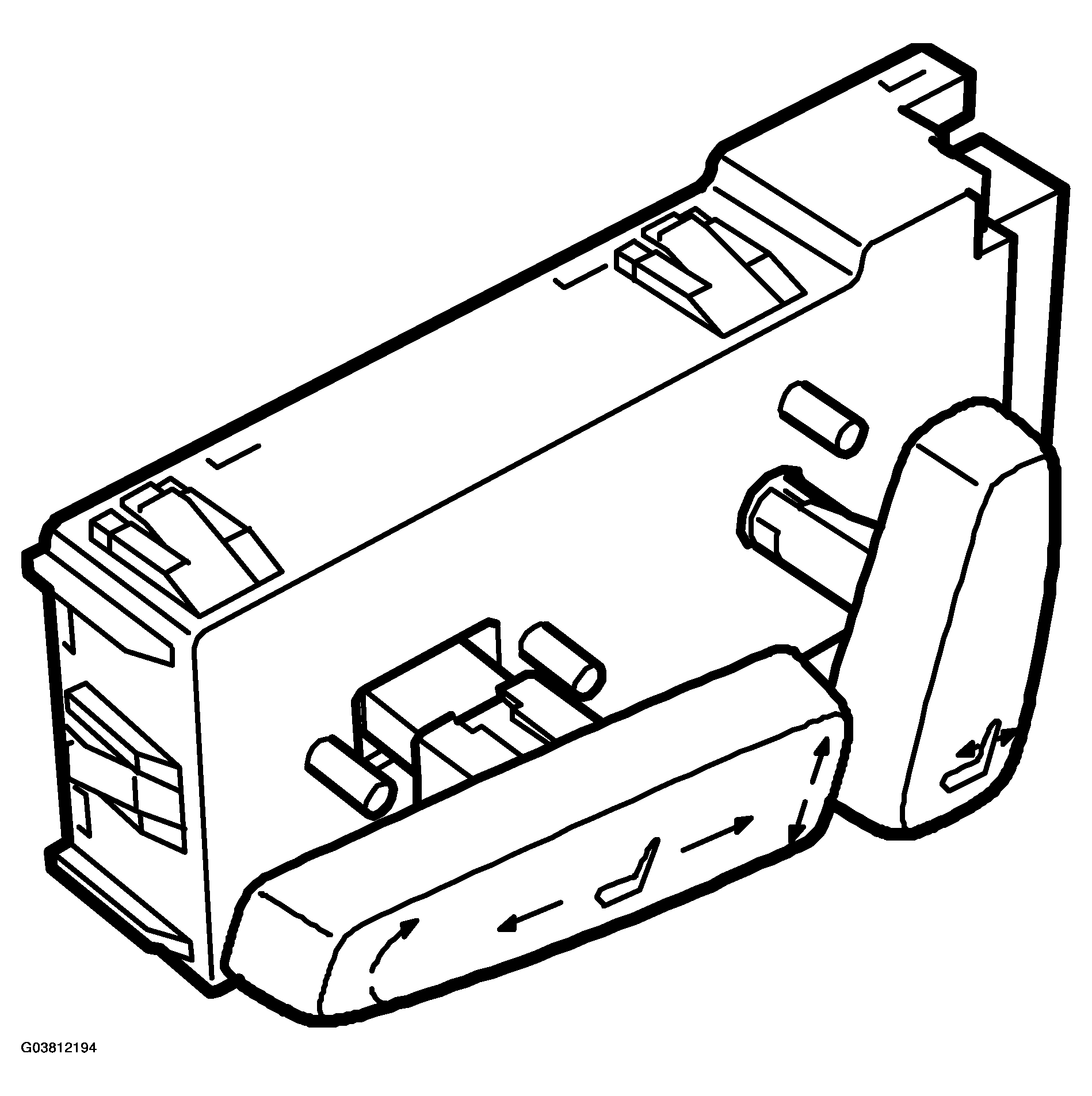

Fig 1: Identifying Switch Unit (357D)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
SWITCH UNIT (357D) SPECIFICATION
Number of connection pins
No. 12
Power supply
10 pin
Courtesy of SAAB-SCANIA OF AMERICA, INC.
