To remove

  1. Fold the backrest down and remove the backrest tab clips using 82 93 474 REMOVAL TOOL .

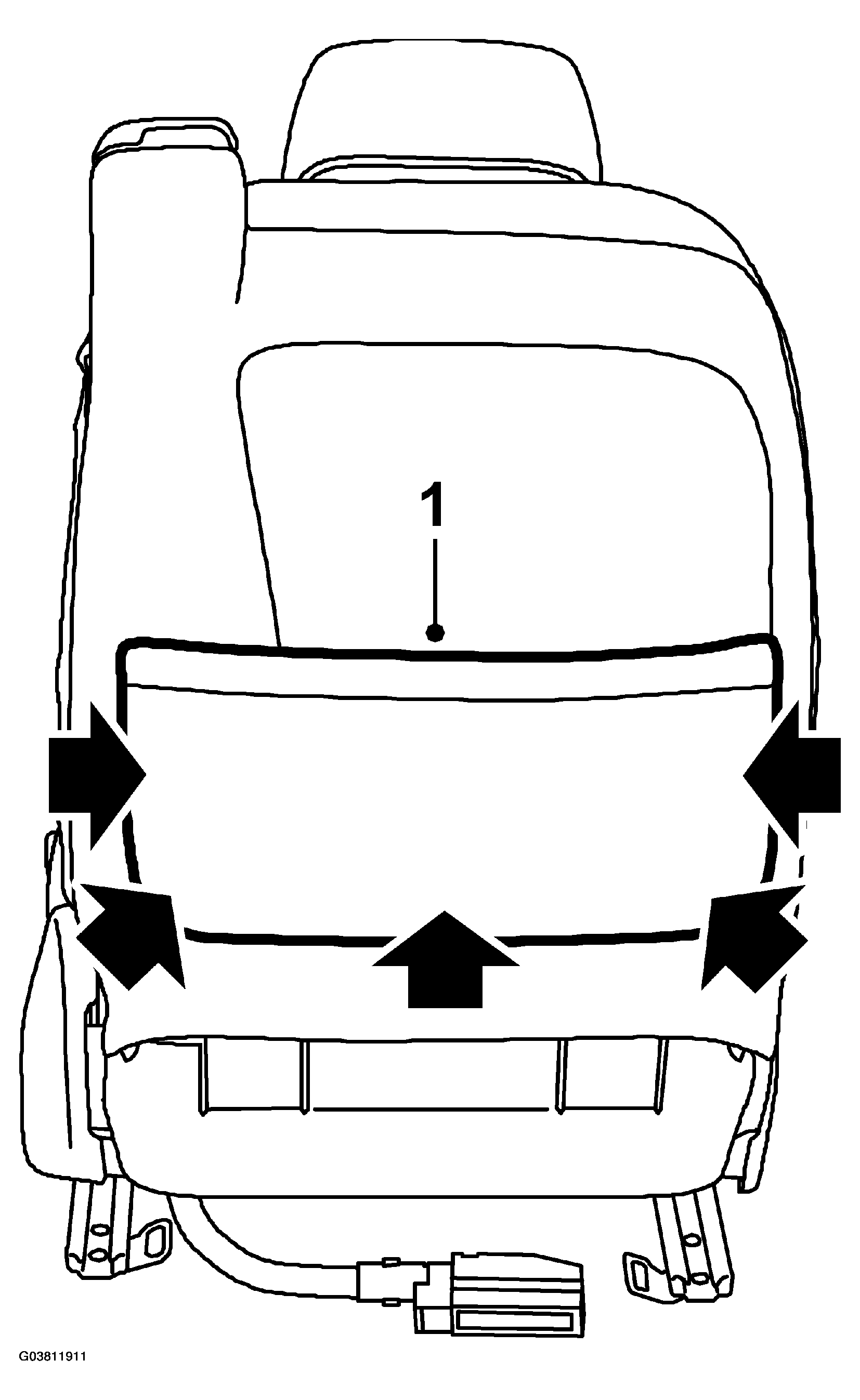

    Fig 1: Removing Backrest Tab Clips
    G03811911Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Lift up the tab so that the hooks in the upper edge detach from the cover.

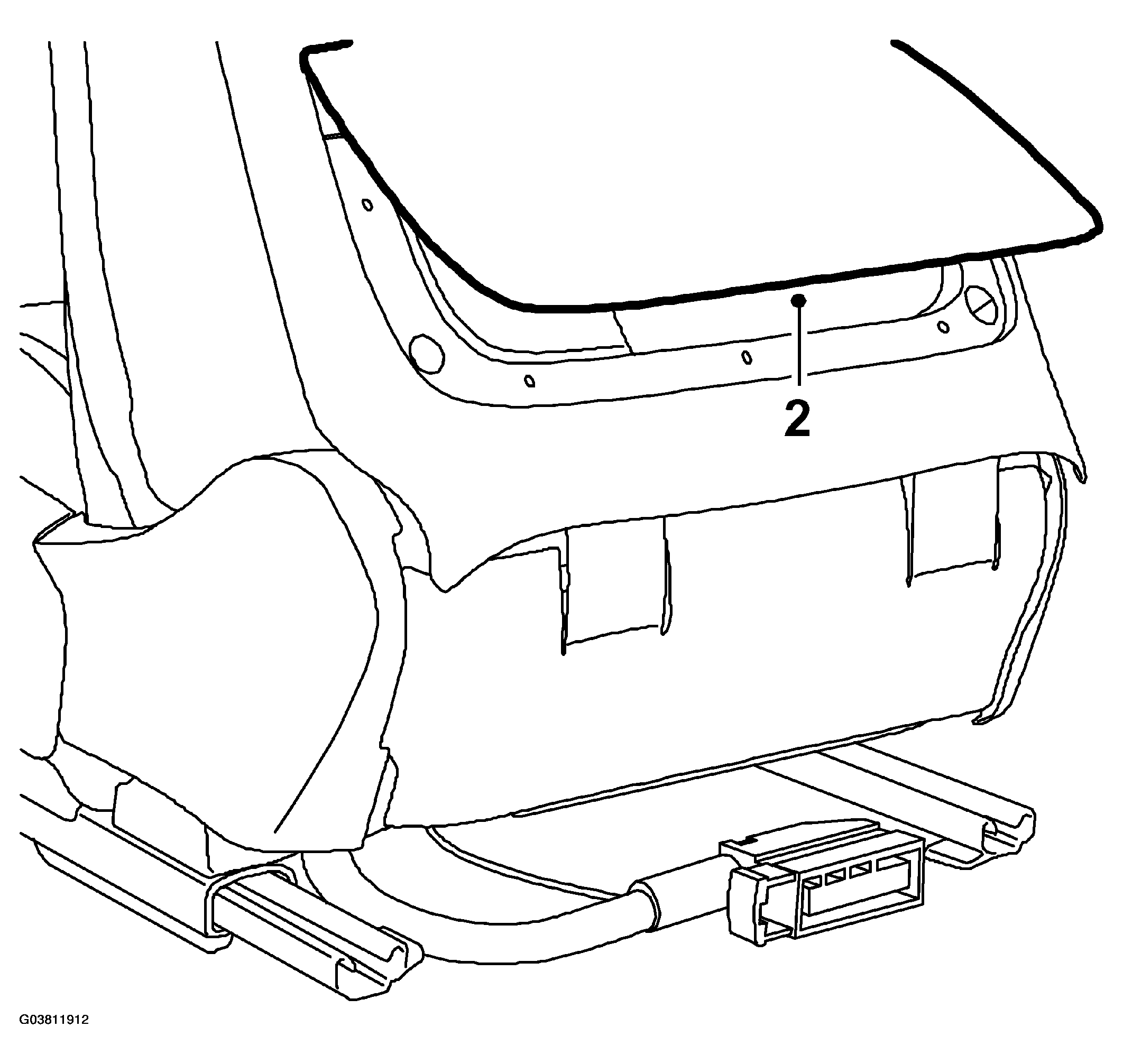

    Fig 2: Lifting Up Tab
    G03811912Courtesy of SAAB-SCANIA OF AMERICA, INC.
