Transmission range switch, automatic (245)

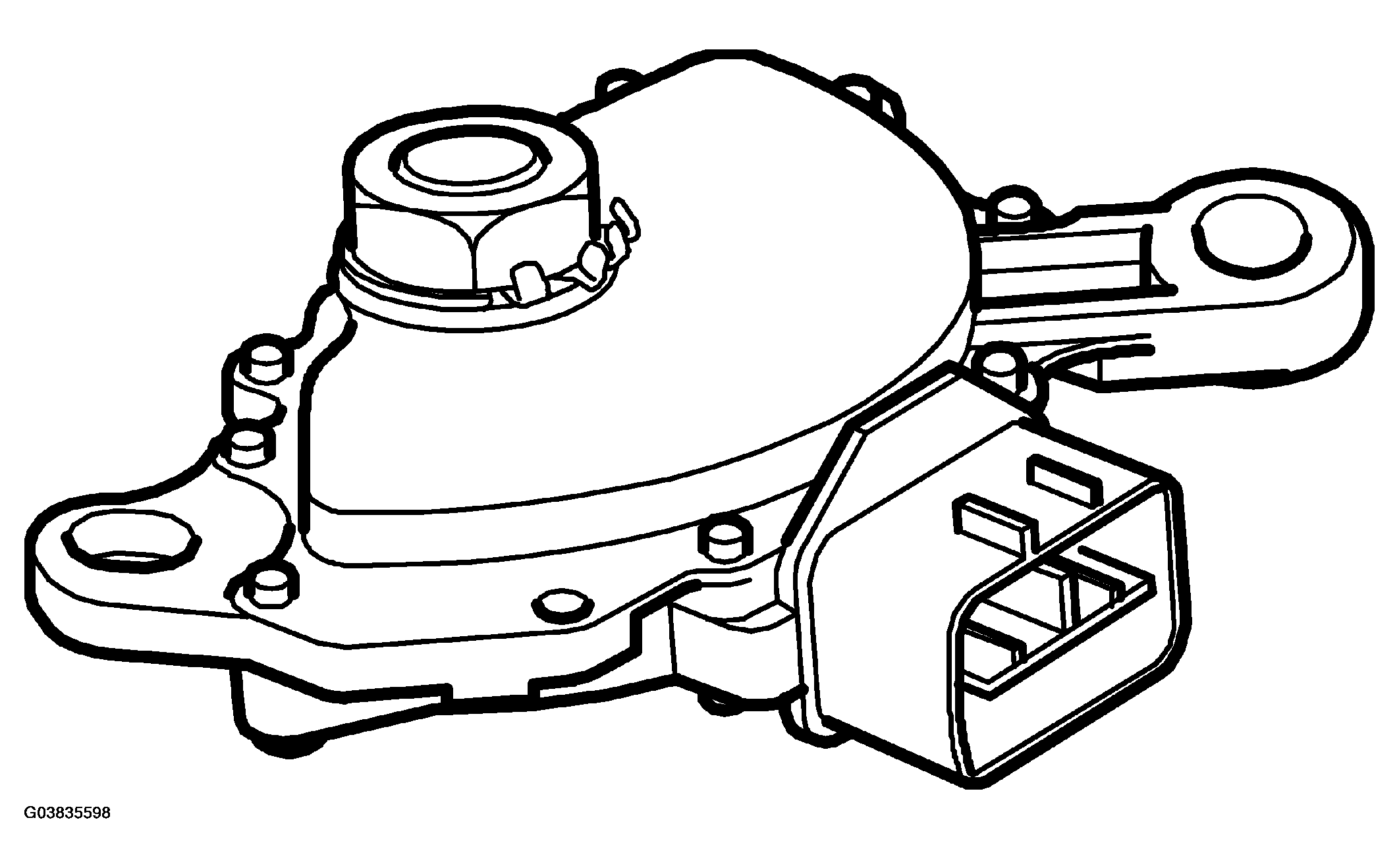

Fig 1: Identifying Transmission Range Switch, Automatic (245)
G03835598Courtesy of SAAB-SCANIA OF AMERICA, INC.
VOLTAGE SPECIFICATION

Type Voltage, current, resistance Description
Mechanical position switch Voltage drop: 2V, Current: 30mA, 20mA max. at 16V, normal at 12V
