To remove

Place covers over the wings to keep the paintwork clean and protect it from damage.
Remove the battery cover.

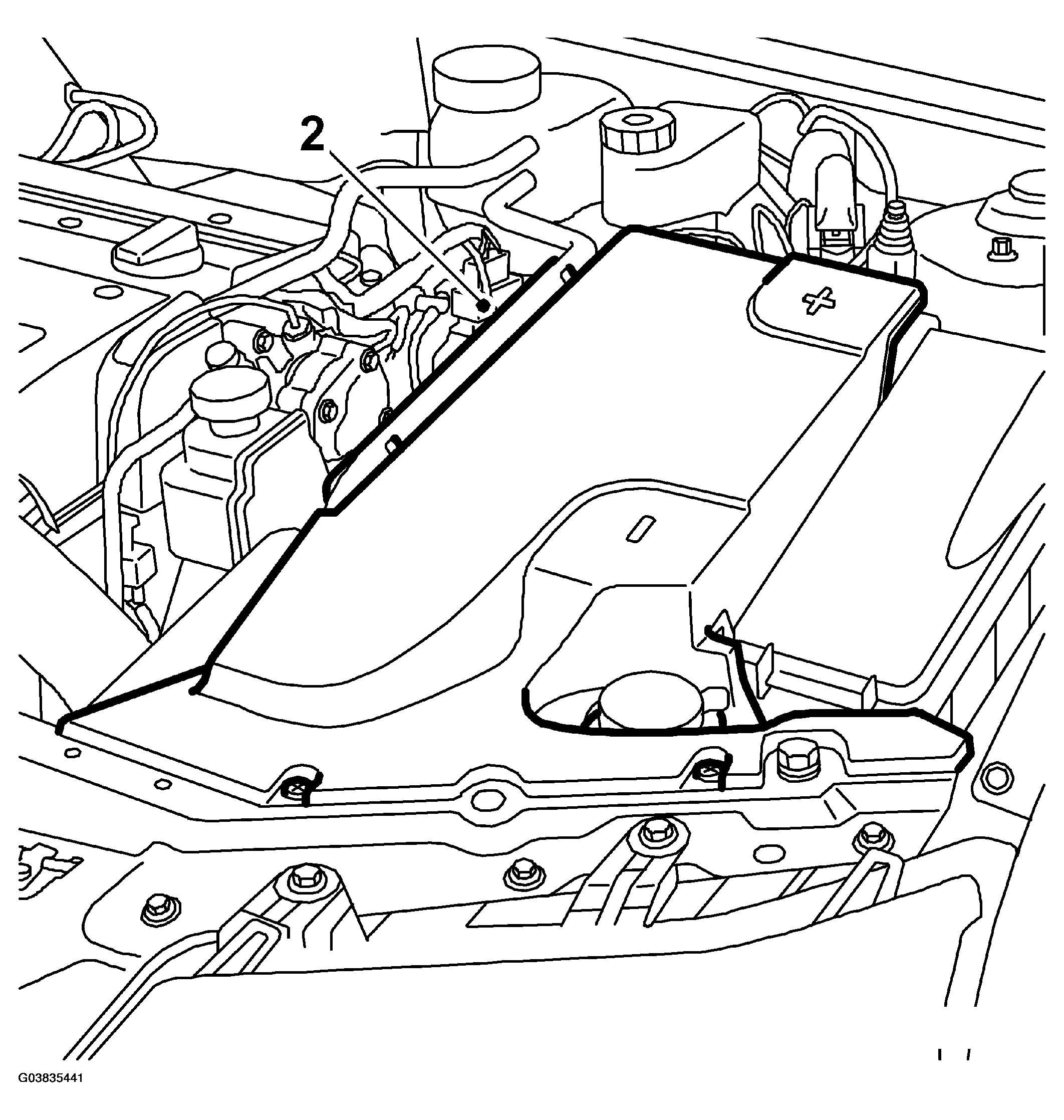

Fig 1: Illustration For Step 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the battery, coolant pipe, main fuse box and bonnet switch.

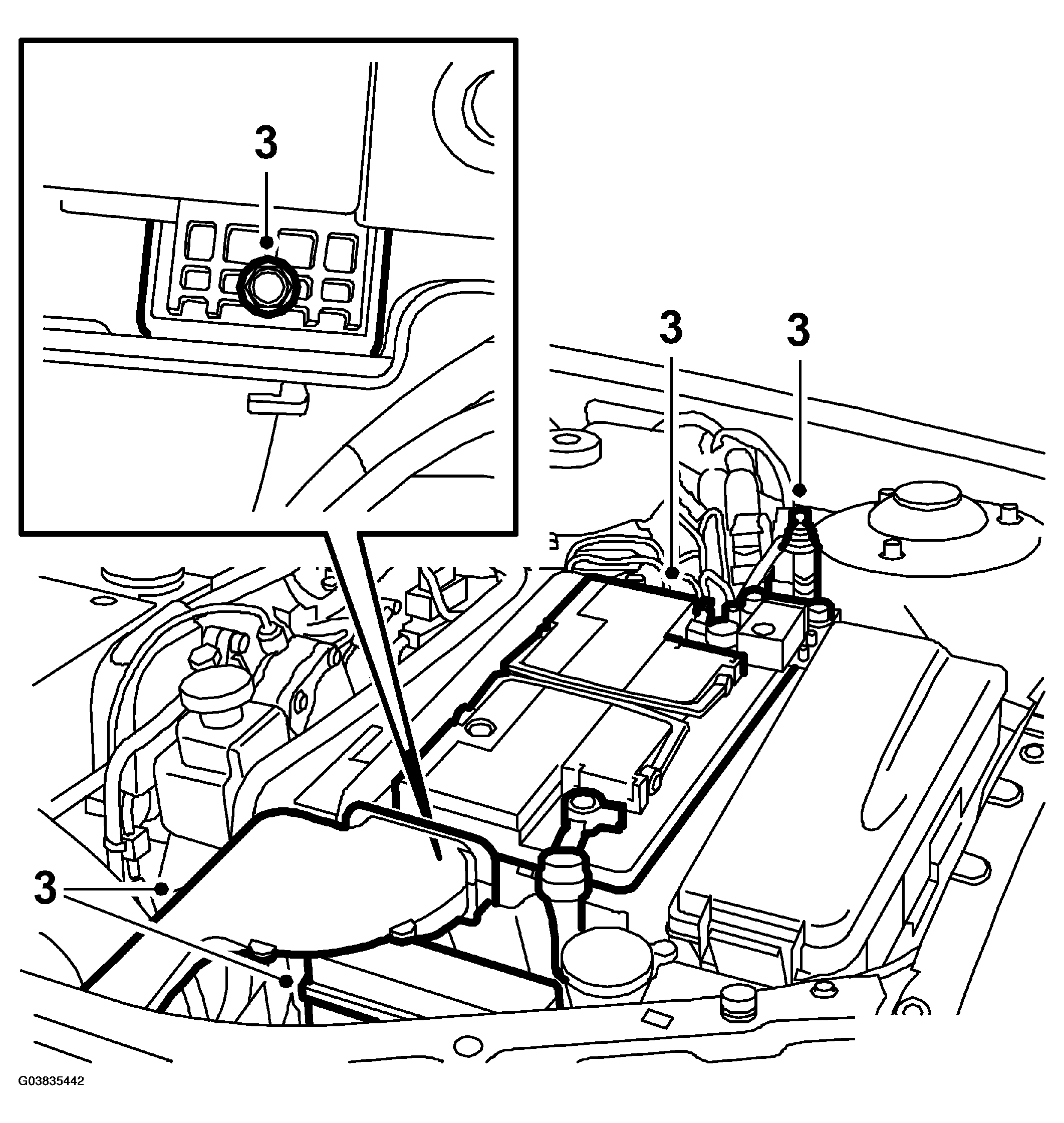

Fig 2: Illustration For Step 3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Unplug the control module connector. Unplug the connectors under the control module. Remove the battery tray.

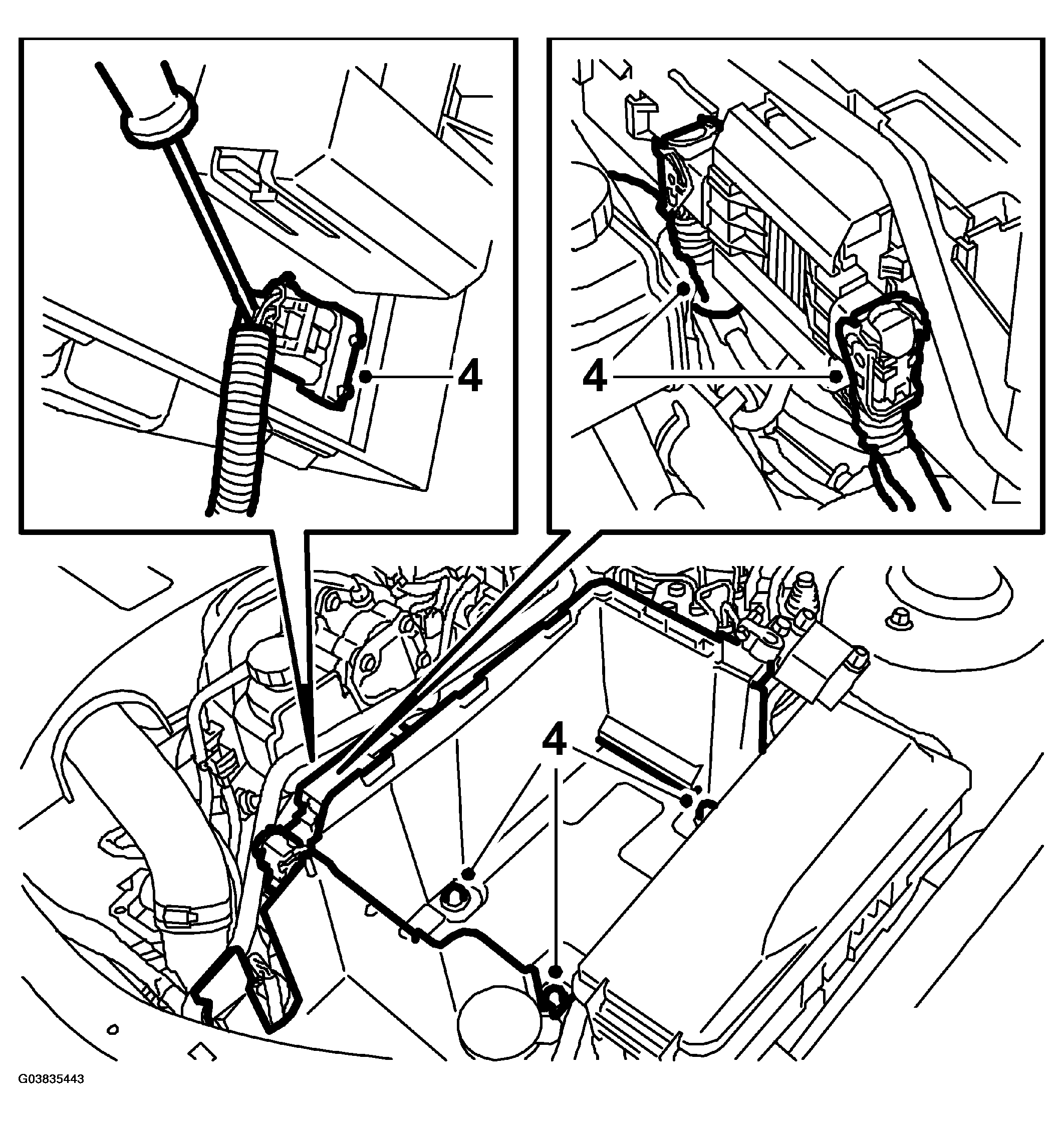

Fig 3: Illustration For Step 4
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Unplug the speed sensor connector. Remove the input shaft speed sensor.

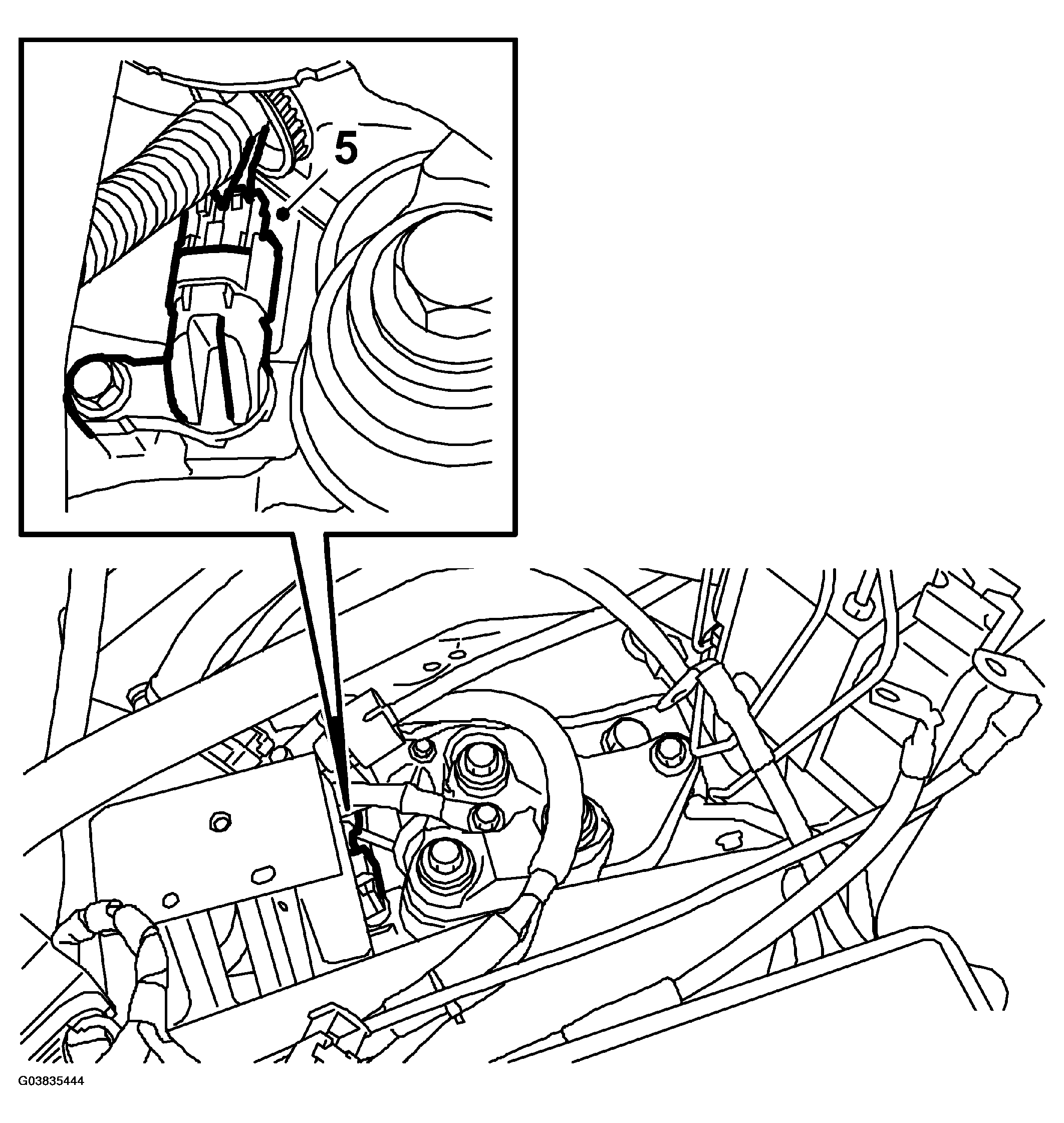

Fig 4: Illustration For Step 5
Courtesy of SAAB-SCANIA OF AMERICA, INC.
