Pressure switch, power steering fluid (739): Connection

PIN DESCRIPTION

Pin no. Signal type Description
1 Signal The pin is grounded if fluid pressure is low. Connected to ECM pin 22(A).

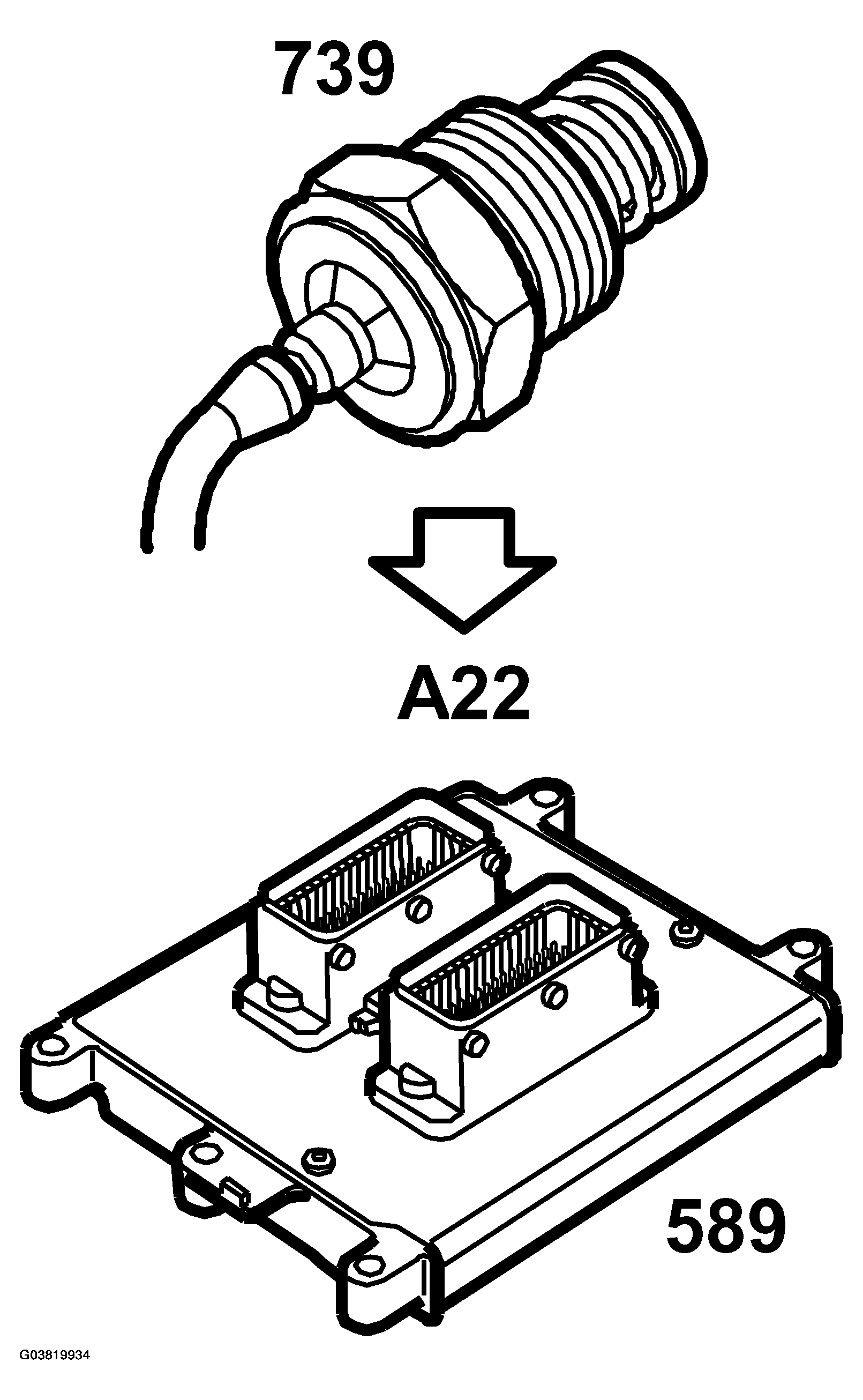

Fig 1: Identifying Pressure Switch Connector
G03819934Courtesy of SAAB-SCANIA OF AMERICA, INC.

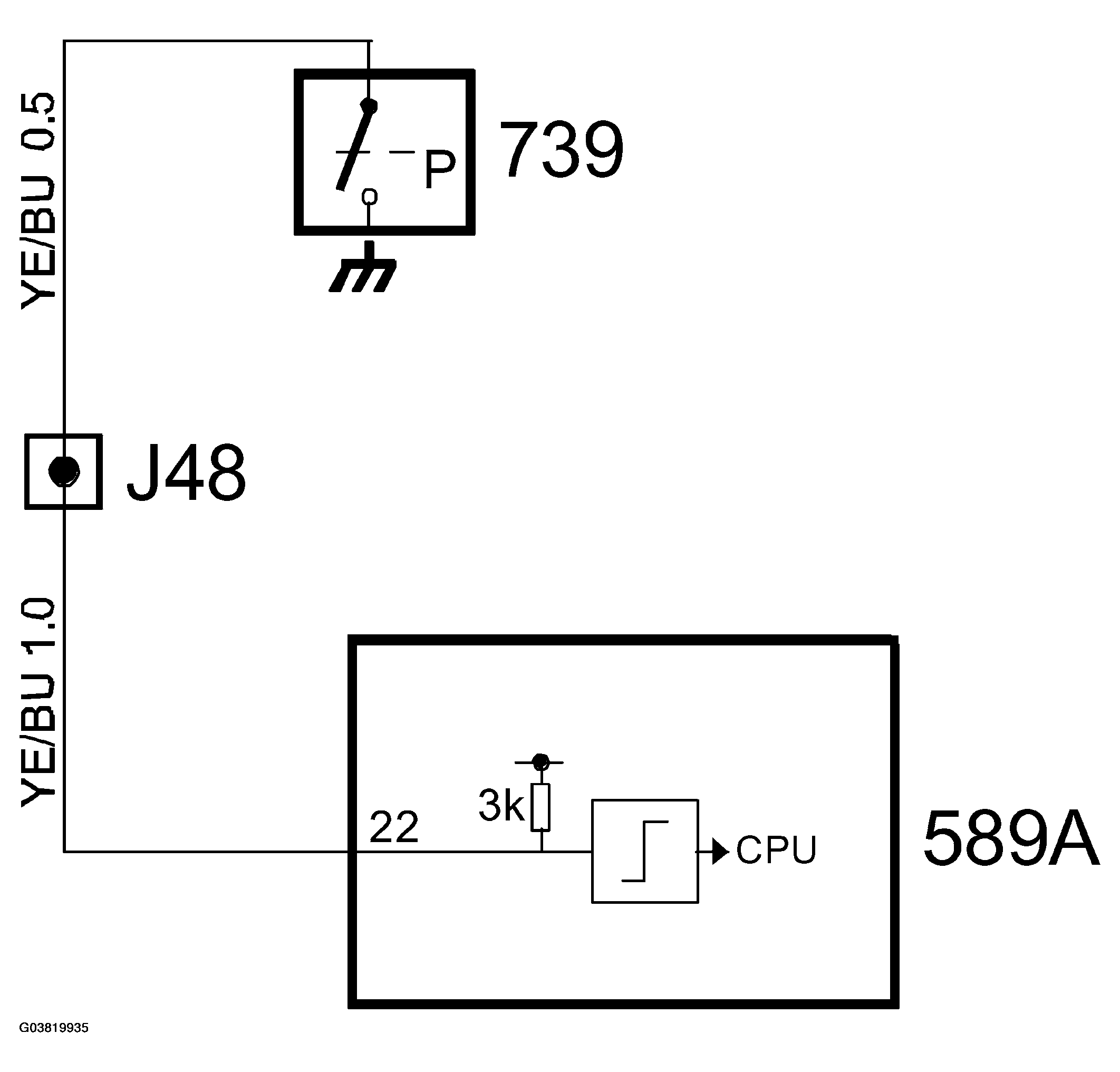

Fig 2: Pressure Switch Wiring Diagram
G03819935Courtesy of SAAB-SCANIA OF AMERICA, INC.
