Coolant level switch (242): Connection

PIN DESCRIPTION

Pin No. Signal type Description
1 Signal Connects to BCM pin (A)13 in (K78)
2 Ground Connects to grounding point G33S

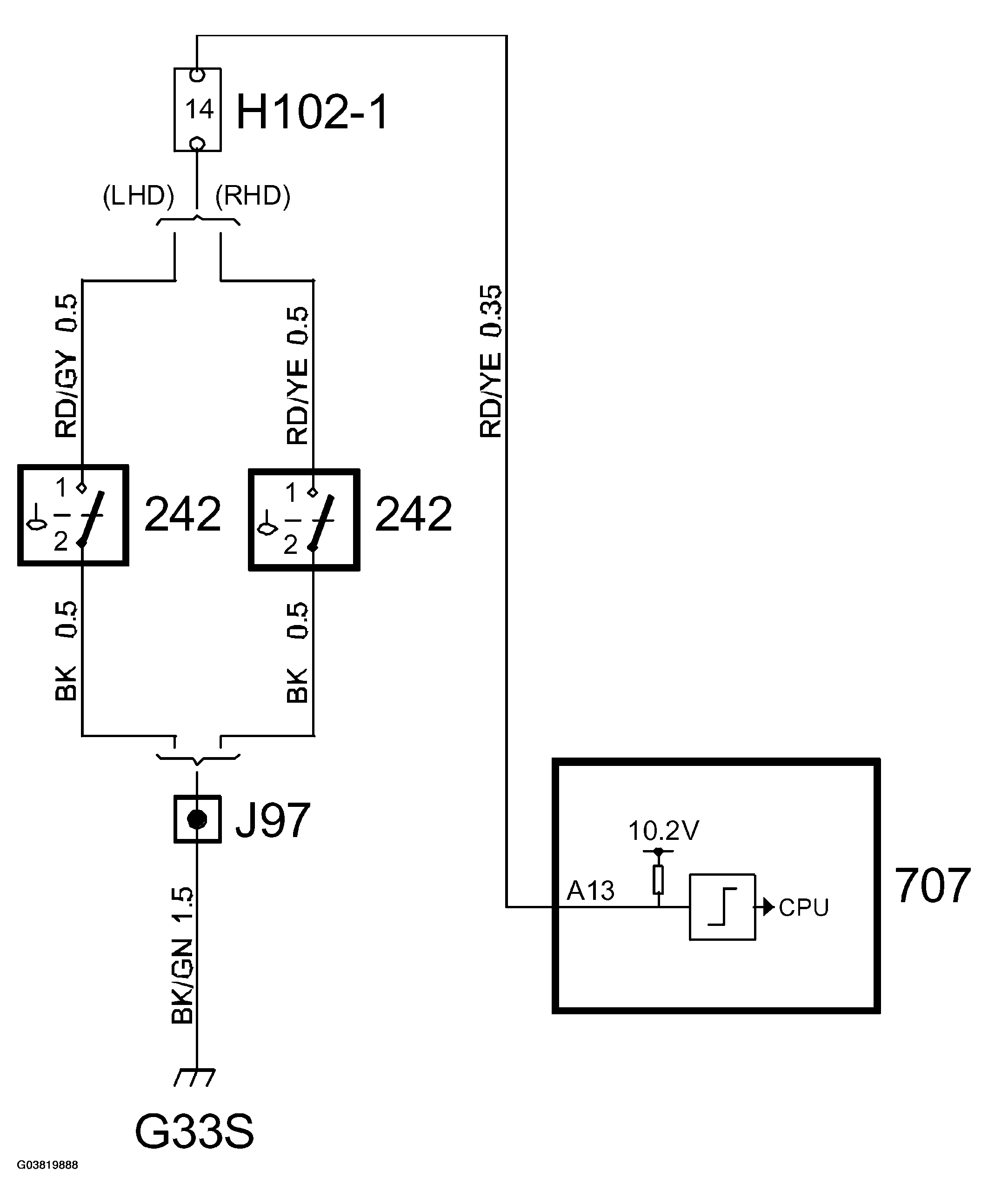

Fig 1: Identifying Coolant Level Switch
G03819888Courtesy of SAAB-SCANIA OF AMERICA, INC.
