Accelerator pedal position sensor (379), T8: Connection

PIN DESCRIPTION

Pin No. Signal type Description
1 Power supply, 5 V Connected to ECM pin 44(A).
2 Power supply, 5 V Connected to ECM pin 29(A).
3 Signal, P1 Connected to ECM pin 12(A).
4 Ground Connected to ECM pin 34(A).
5 Ground Connected to ECM pin 50(A).
6 Signal, P2 Connected to ECM pin 13(A).

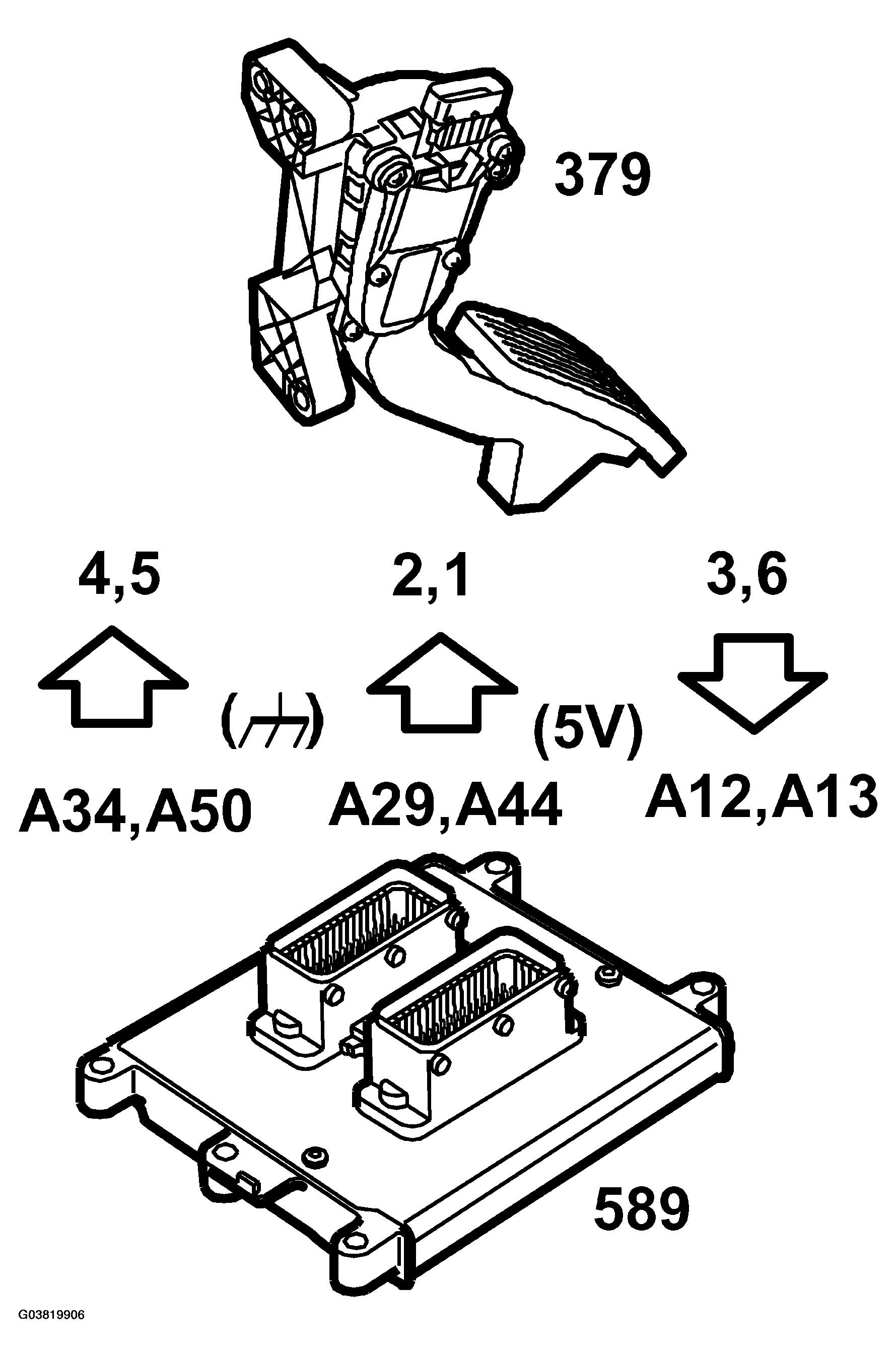

Fig 1: Identifying Accelerator Pedal Position Sensor Connector
G03819906Courtesy of SAAB-SCANIA OF AMERICA, INC.

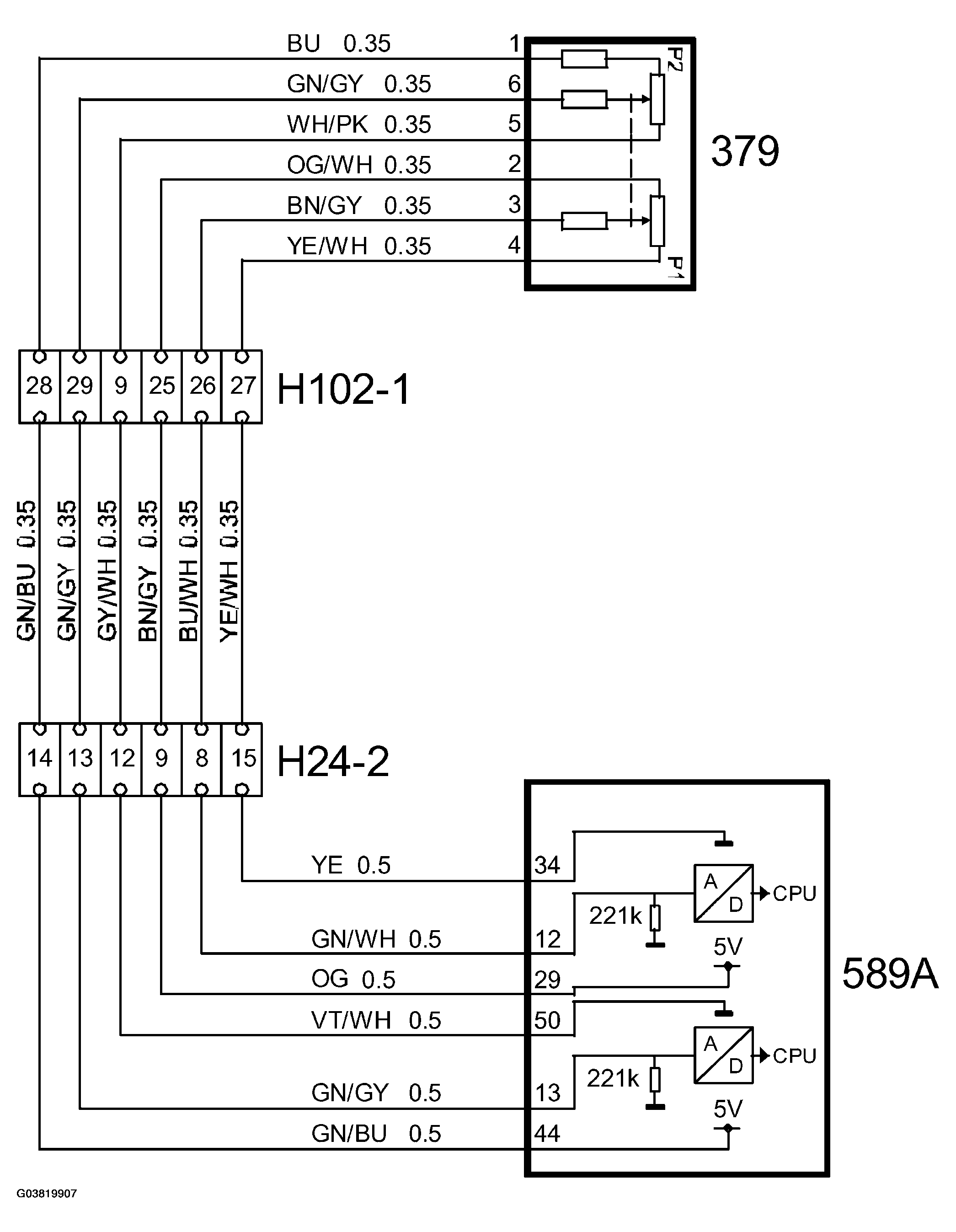

Fig 2: Accelerator Pedal Position Sensor Wiring Diagram
G03819907Courtesy of SAAB-SCANIA OF AMERICA, INC.

Voltage from the sensor varies in relation to the angle of the sensor shaft.
