Fuel pump relay (102)

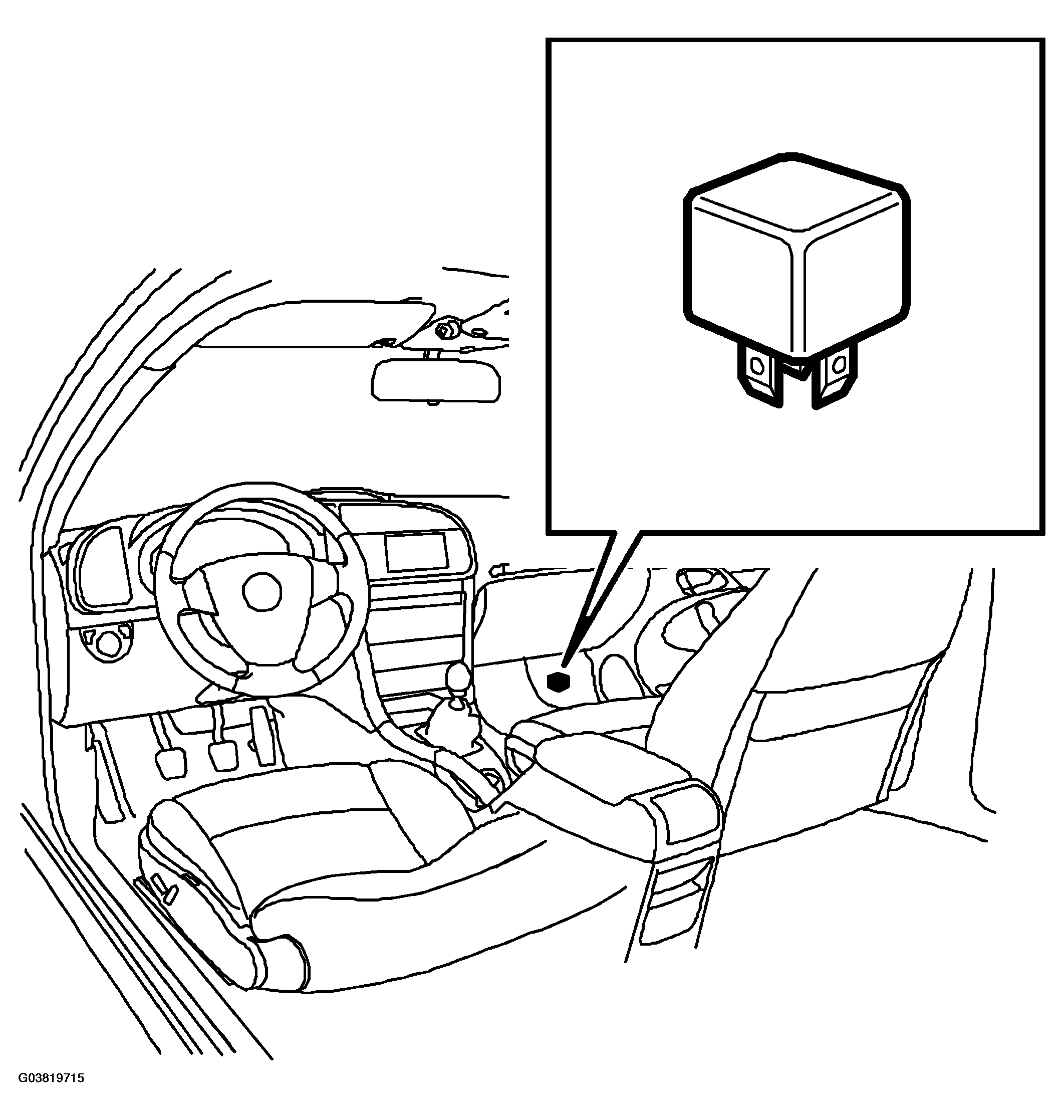

Fig 1: Identifying Fuel Pump Relay
G03819715Courtesy of SAAB-SCANIA OF AMERICA, INC.
FUEL PUMP SPECIFICATION

Resistance, winding at 20 °C (68 °F) 85+/-5 Ohm
Nominal control voltage 12 V
Rated current 30 A
