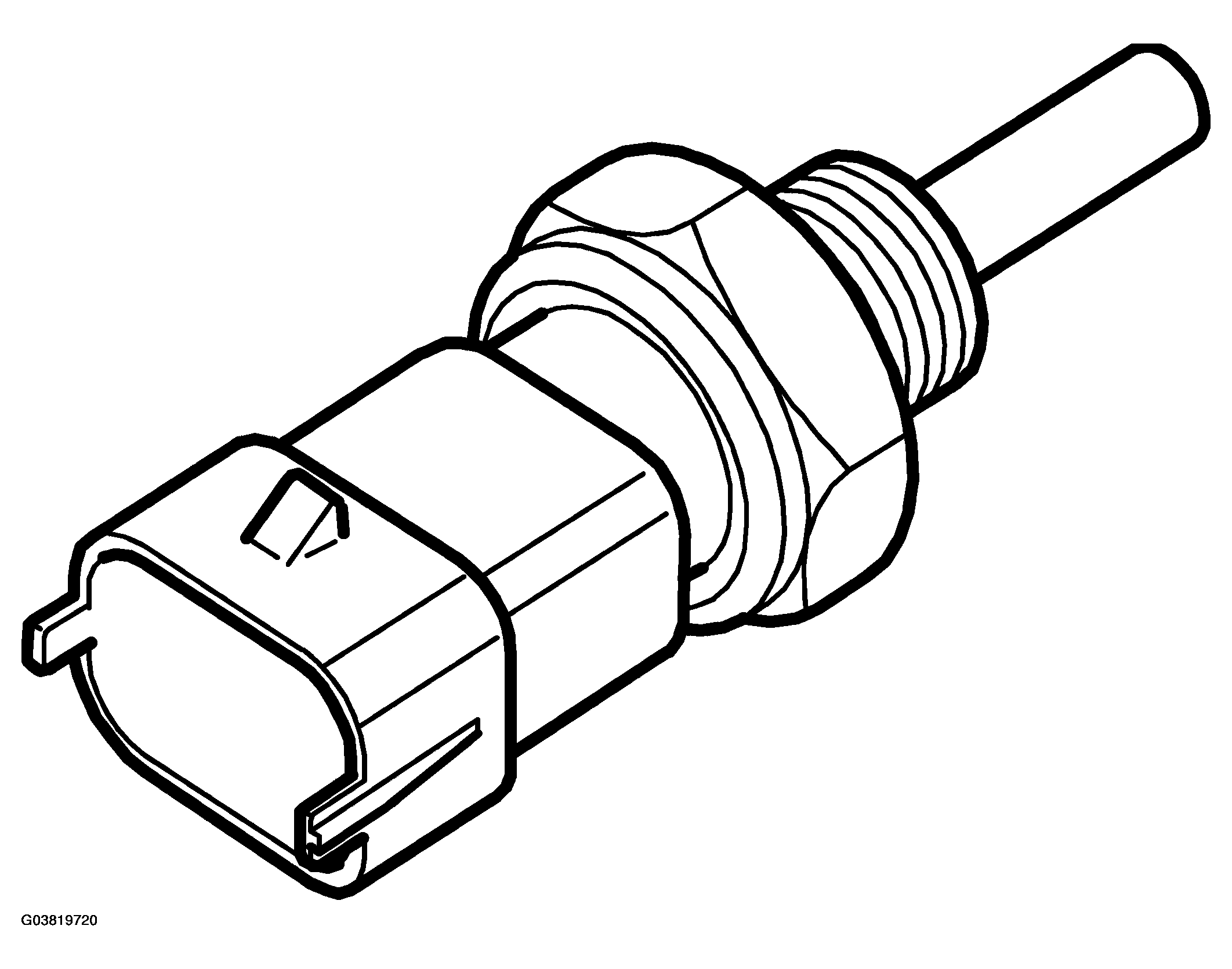

Coolant temperature sensor (202), T8

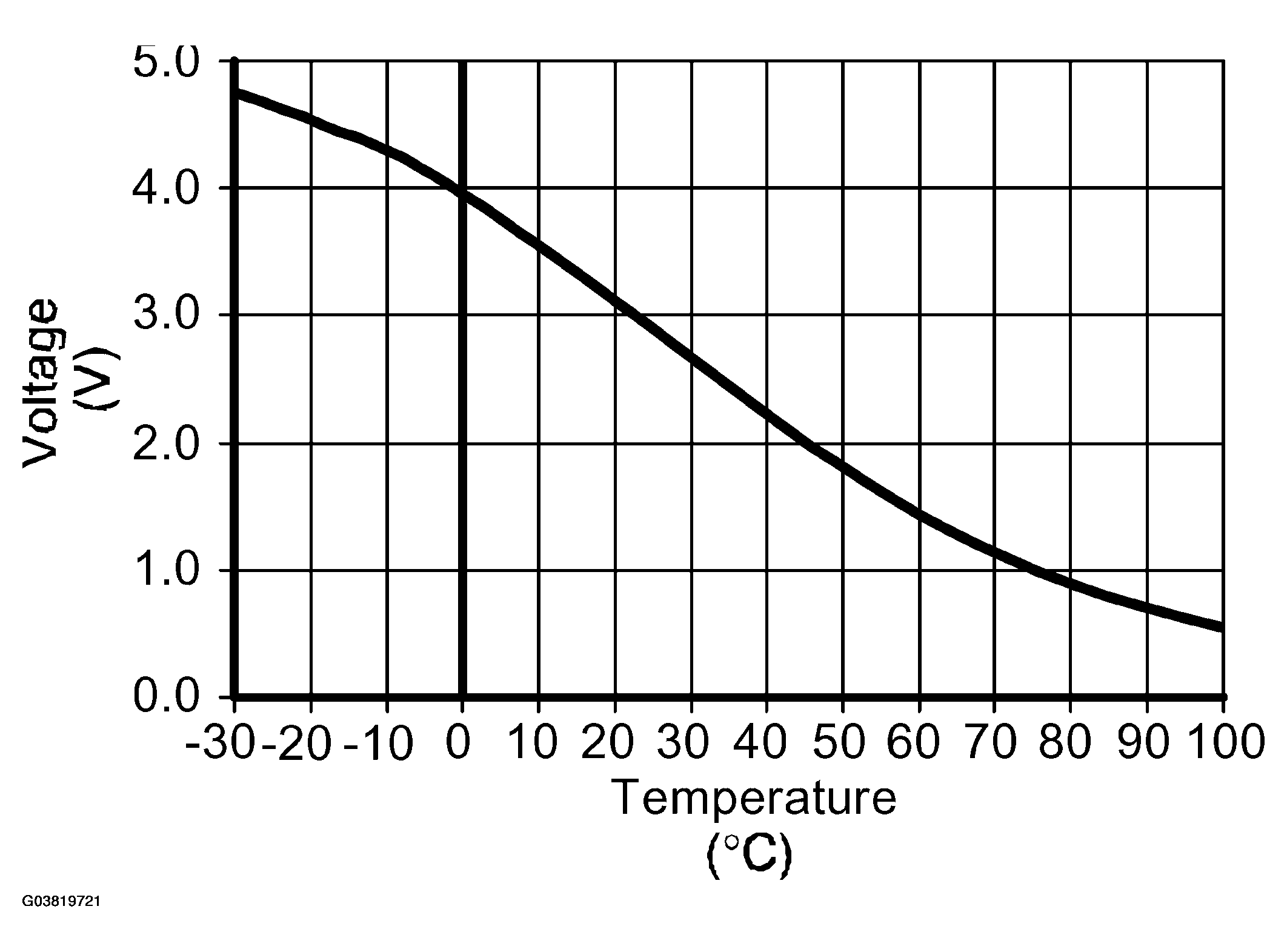

TEMPERATURE SPECIFICATION
| °C (°F) | kohm | V |
|---|---|---|
| -30 (-22) | 26.0 | approx. 4.73 |
| -10 (-14) | 9.4 | approx. 4.31 |
| 0 (32) | 5.9 | approx. 4.0 |
| 20 (68) | 2.5 | approx. 3.12 |
| 40 (104) | 1.8 | approx. 2.20 |
| 60 (140) | 0.596 | approx. 1.42 |
| 80 (176) | 0.323 | approx. 0.89 |
| 100 (212) | 0.187 | approx. 0.55 |
Power supply 5V through 1.0 kohm resistor in control module.
