Atmospheric pressure sensor (539)

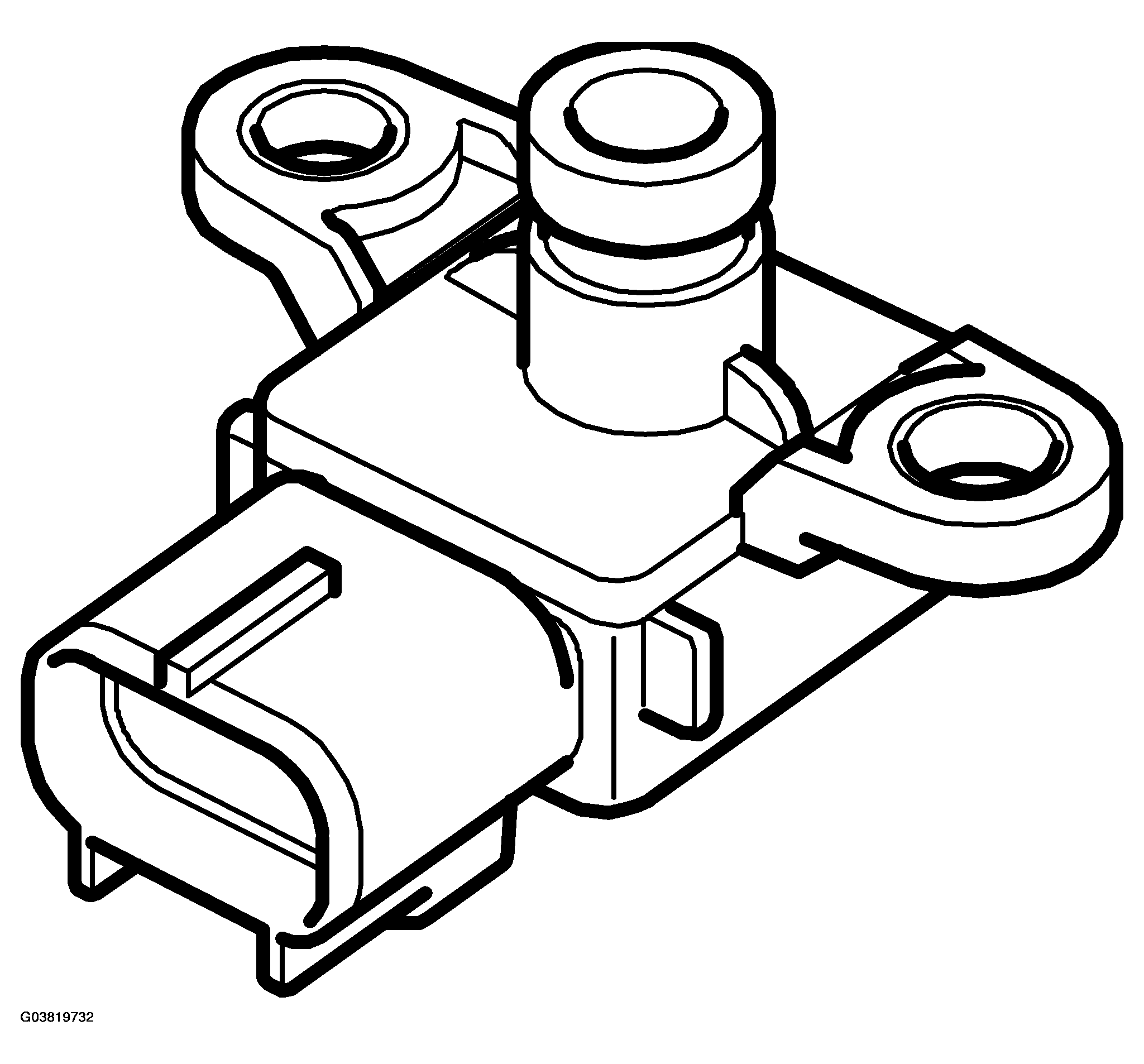

Fig 1: Identifying Atmospheric Pressure Sensor
G03819732Courtesy of SAAB-SCANIA OF AMERICA, INC.

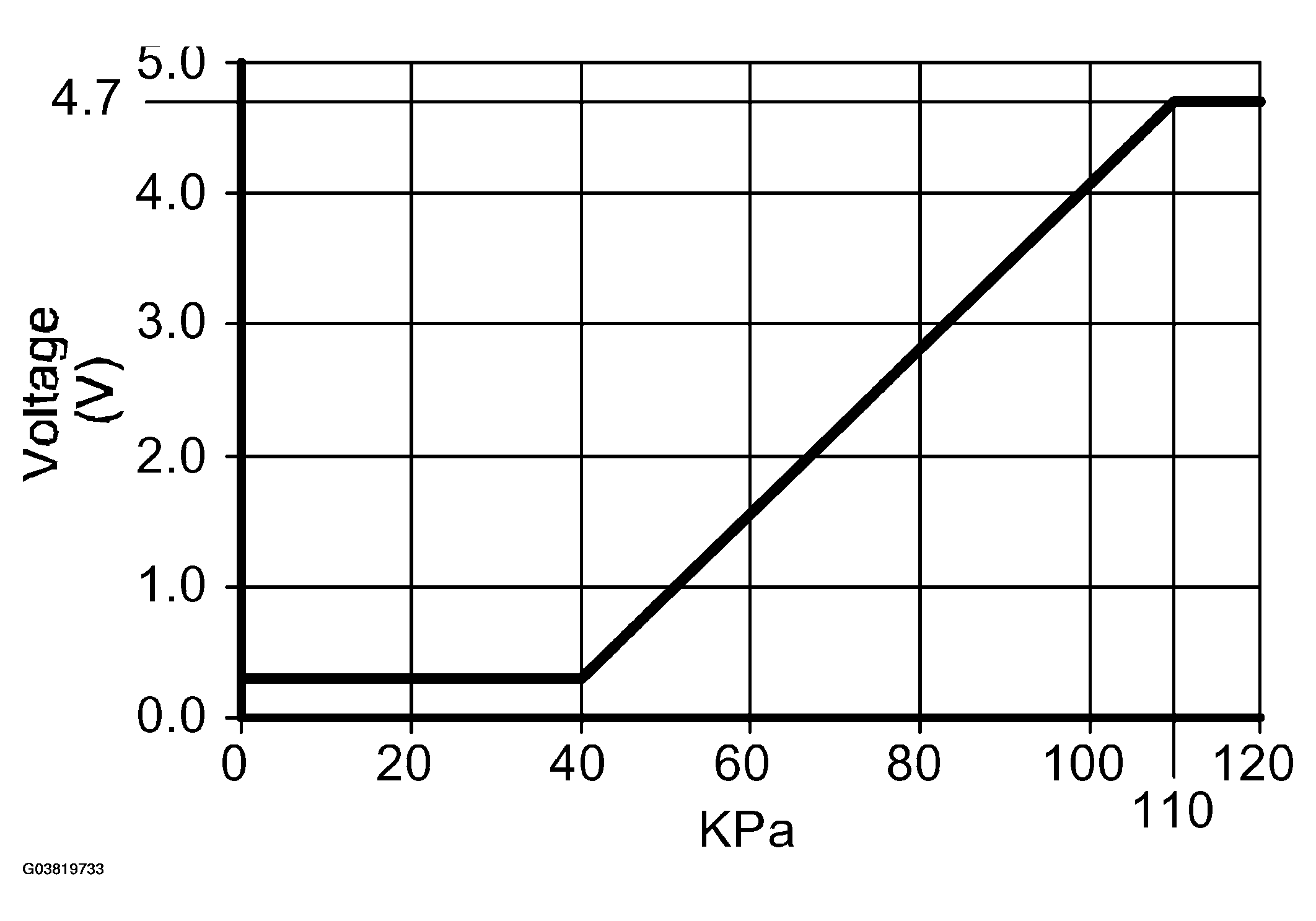

Fig 2: Identifying Atmospheric Pressure Sensor Graph
G03819733Courtesy of SAAB-SCANIA OF AMERICA, INC.
