Heated oxygen sensor element (271): T8

front heated oxygen sensor

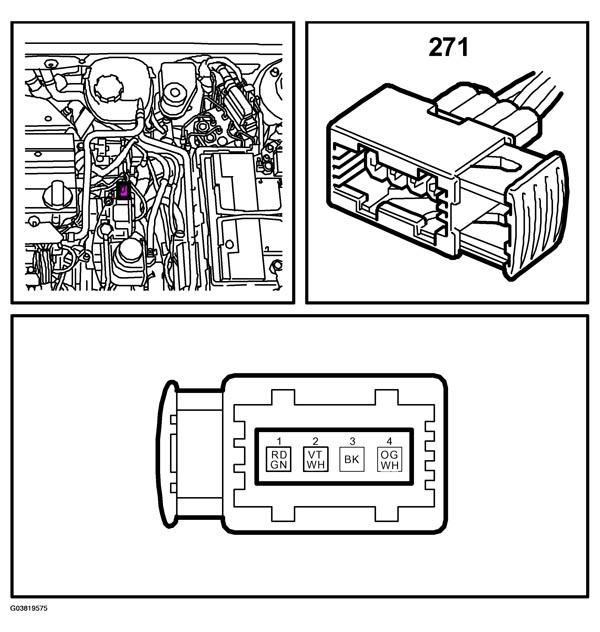

Fig 1: Identifying Front Heated Oxygen Sensor
G03819575Courtesy of SAAB-SCANIA OF AMERICA, INC.

rear heated oxygen sensor

Fig 2: Identifying Rear Heated Oxygen Sensor
G03819576Courtesy of SAAB-SCANIA OF AMERICA, INC.
