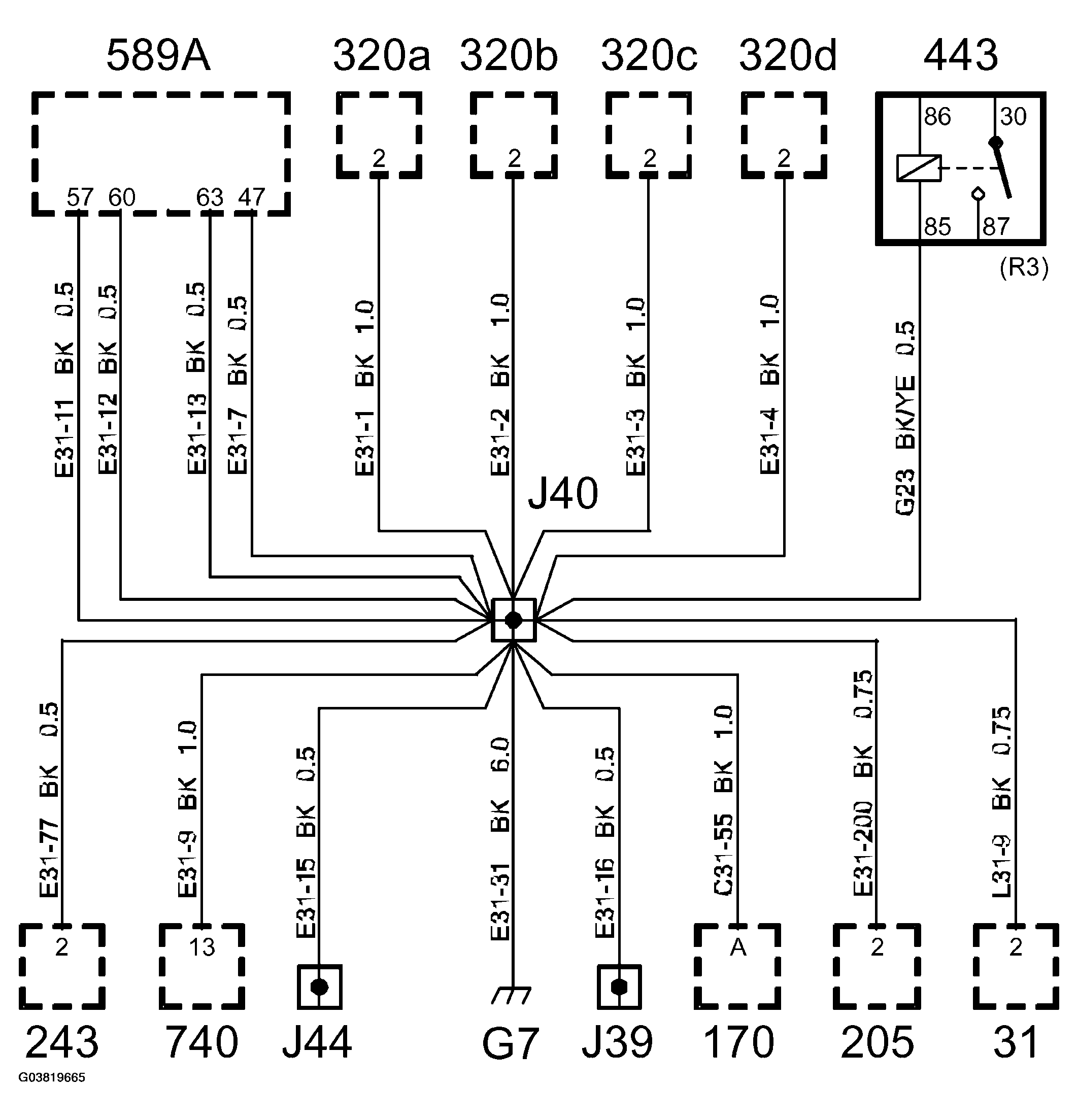

Connected components
CONNECTED COMPONENTS
| Via crimp J40, engine harness T8 | |
| 31 | Reversing light switch |
| 170 | AC compressor |
| 205 | Mass air flow sensor |
| 243 | Engine oil level switch |
| 320a | Ignition coil with integrated power stage, cyl.1 |
| 320b | Ignition coil with integrated power stage, cyl.2 |
| 320c | Ignition coil with integrated power stage, cyl.3 |
| 320d | Ignition coil with integrated power stage, cyl.4 |
| 443 | Oxygen sensor preheating relay |
| 589A | Trionic control module, 4-cyl petrol, contact A |
| 740 | Measuring unit, combustion |
| Via CRIMP J39, ENGINE HARNESS T8 , which is connected to crimp J40 | |
| Cable screens for cables to 320b and 320d | |
| Via CRIMP J44, ENGINE HARNESS T8 , which is connected to crimp J40 | |
| Cable screens for cables to 320a and 320c |
