Fuel level sensor (46): Location:

Integrated in fuel pump unit 689

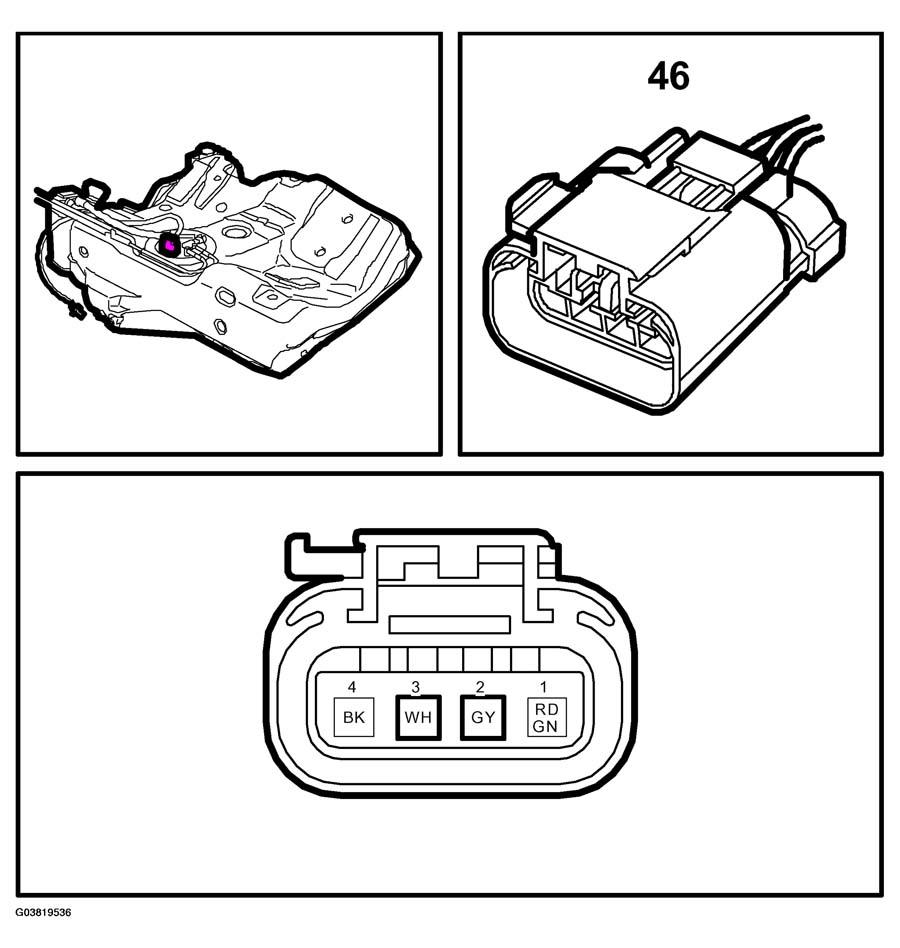

Fig 1: Identifying Fuel Level Sensor Connector (Trionic)

G03819536

Courtesy of SAAB-SCANIA OF AMERICA, INC.
