To fit

  1. Fit the control module. Do not forget the ground cable.

    Tightening torque 10 Nm (7 lbf ft)

    IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .

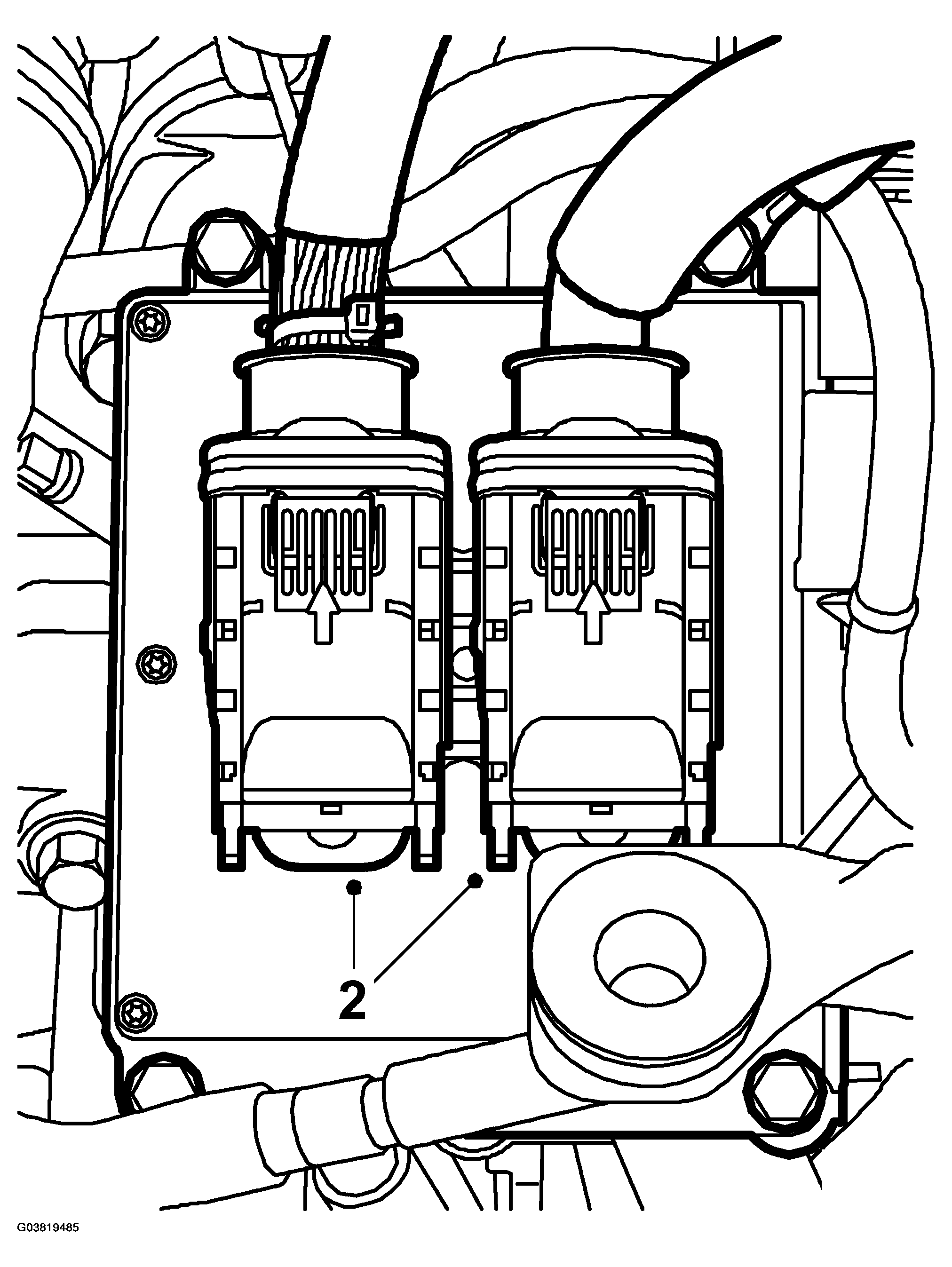

  2. Plug in the connectors and check that they are locked.
    Fig 1: Connecting Connectors
    G03819485Courtesy of SAAB-SCANIA OF AMERICA, INC.

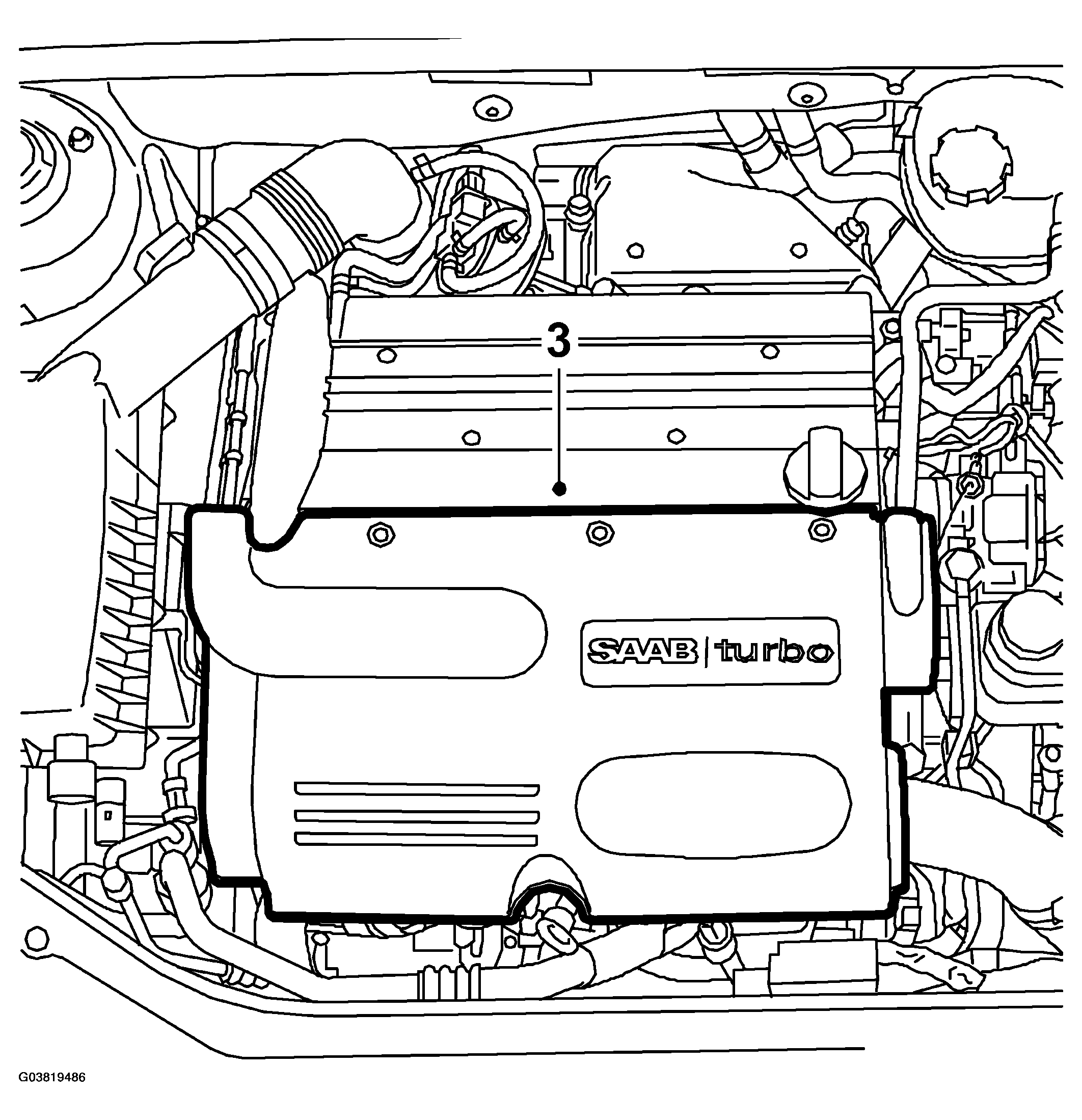

  3. Fit the upper engine cover.
    Fig 2: Fitting Upper Engine Cover
    G03819486Courtesy of SAAB-SCANIA OF AMERICA, INC.

    Carry out actions after replacement of control module.
