Home >> Saab >> 2005 >> 9-3 Linear, 2D Convertible, Automatic >> Repair and Diagnosis >> Engine Performance >> TRIONIC T8 Fuel Control System >> Adjustment / Replacement >> Power steering fluid pressure sensor (739) >> To remove

To remove

  1. Cut off the cable tie securing the sensor connector.

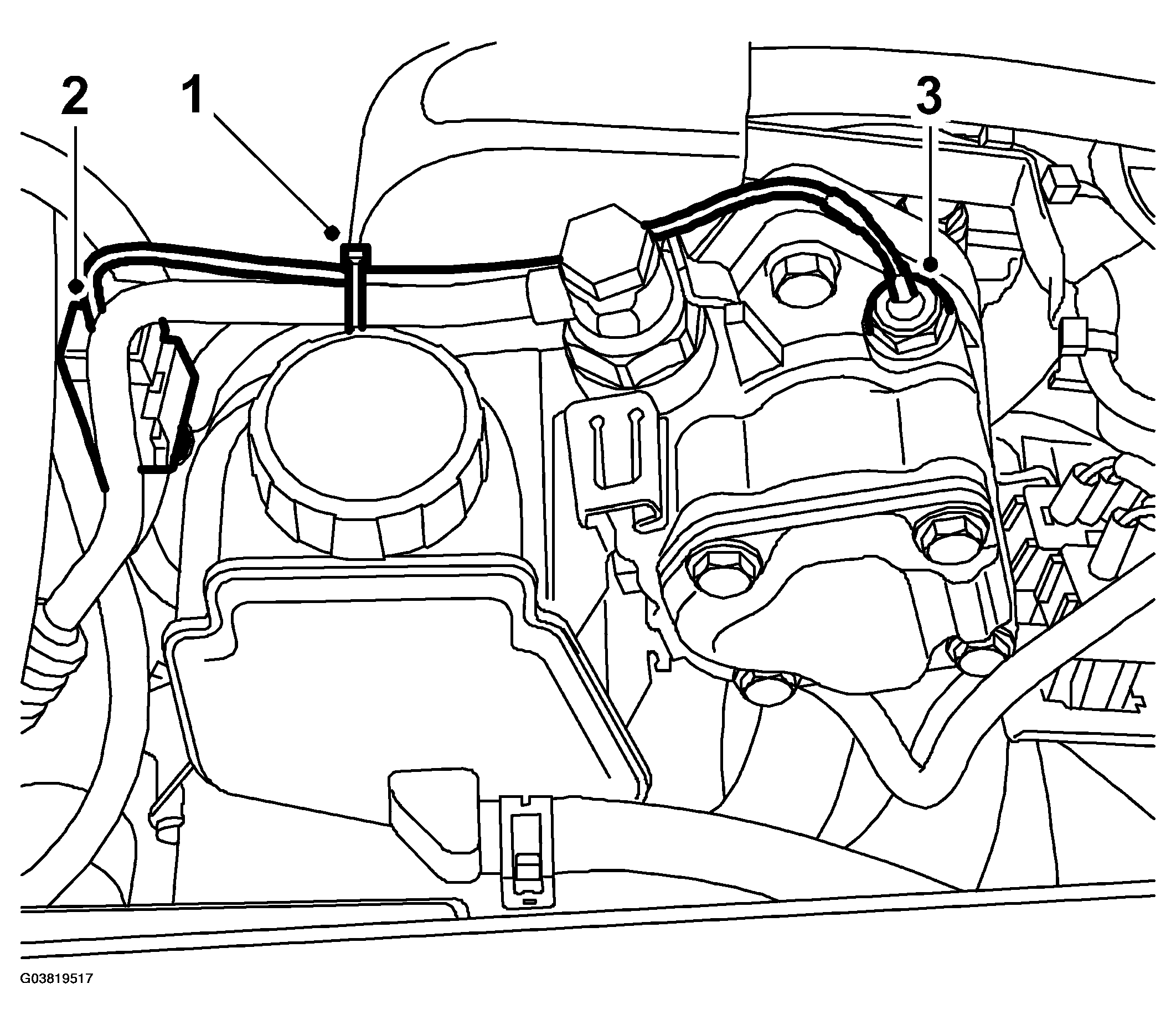

    Fig 1: Illustration For Step - 1, 3
    G03819517Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Unplug the sensor connector.
  3. Carefully remove the pressure sensor as it contains loose parts.
