Home >> Saab >> 2005 >> 9-3 Linear, 2D Convertible, Automatic >> Repair and Diagnosis >> Engine Performance >> TRIONIC T8 Fuel Control System >> Adjustment / Replacement >> Coolant temperature sensor (202) >> To remove

To remove

  1. Remove the upper engine cover.

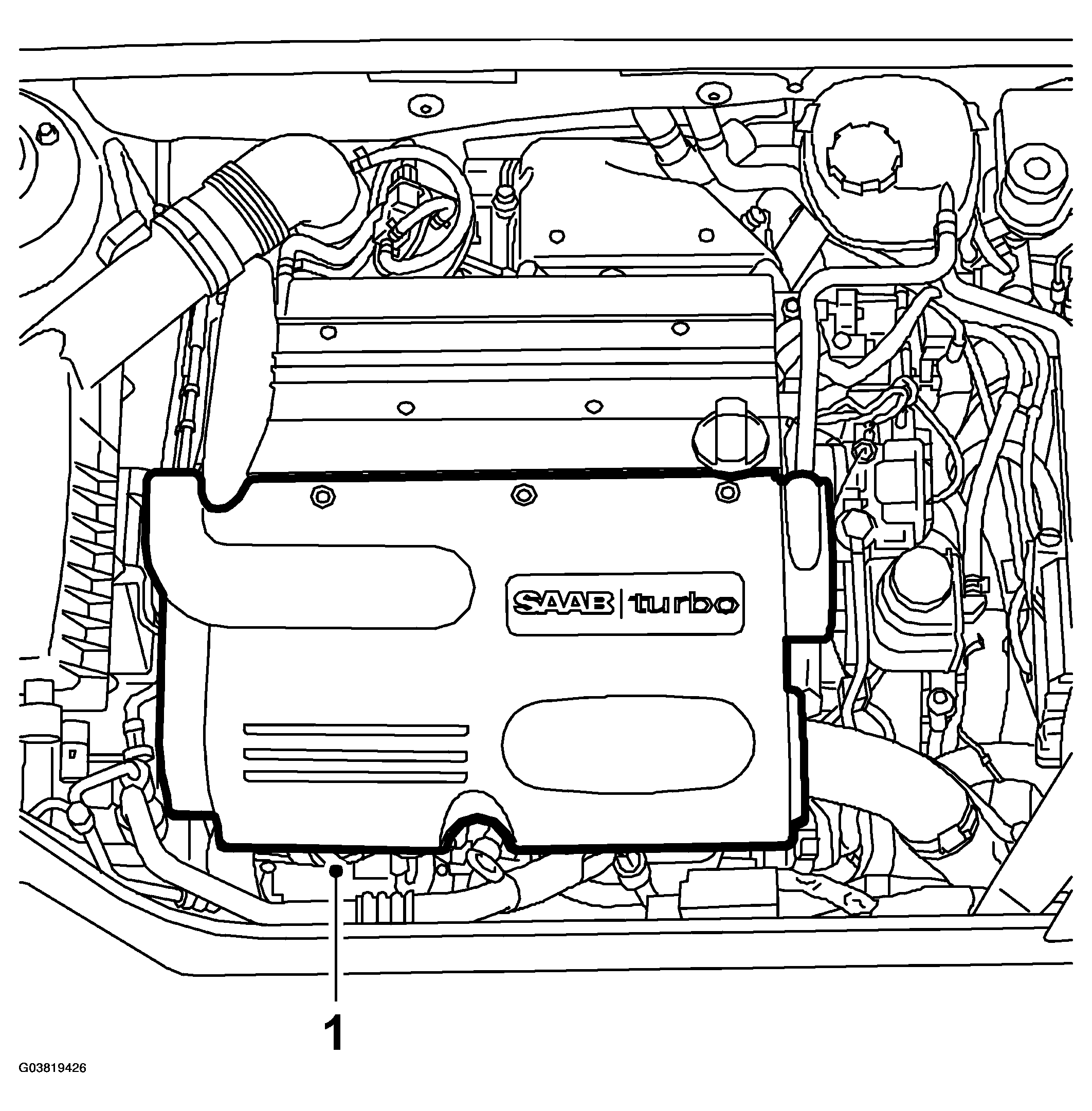

    Fig 1: Removing Upper Engine Cover
    G03819426Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Undo the cap on the expansion tank to release pressure, retighten the cap.

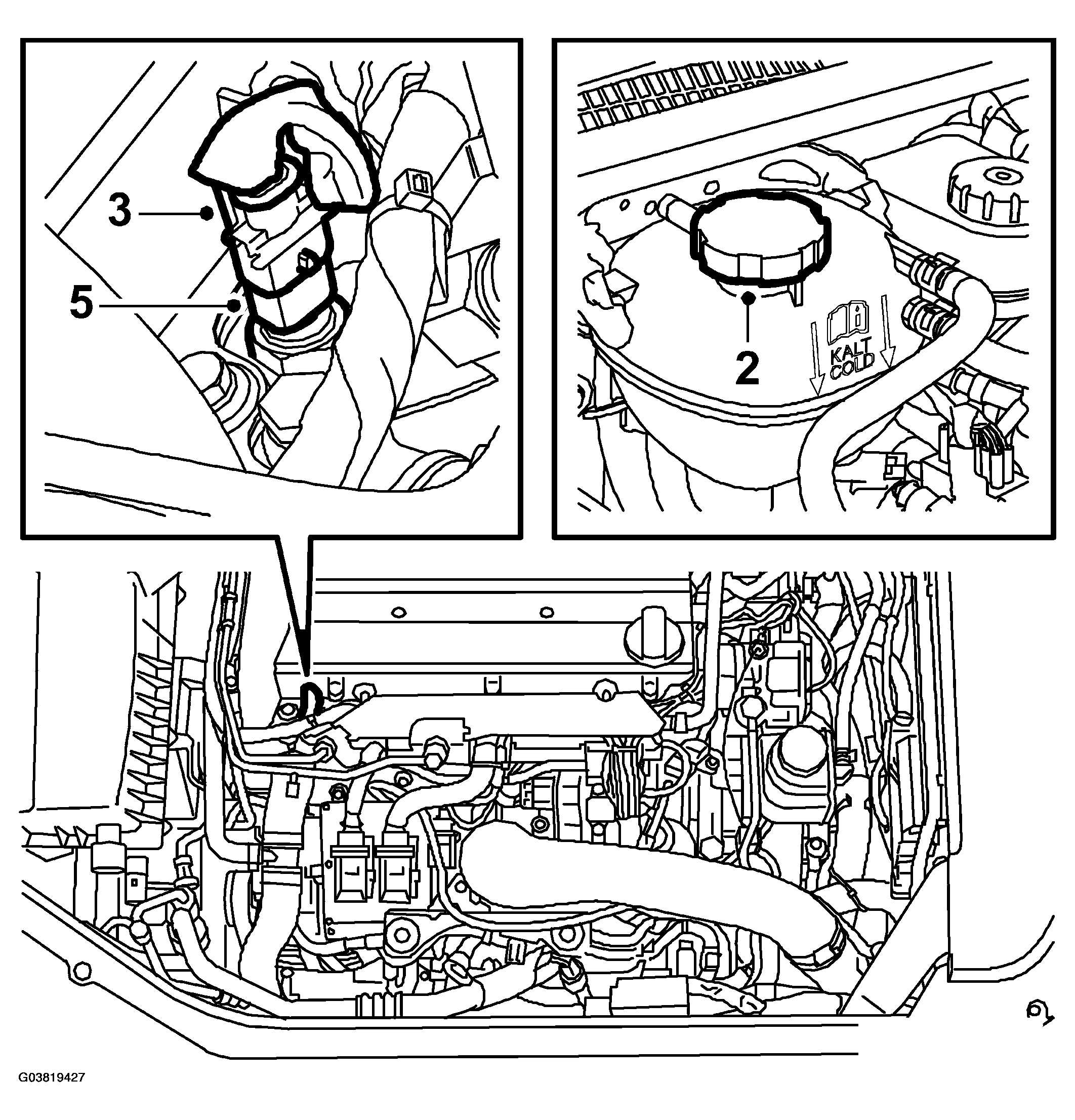

    Fig 2: Illustration For Step - 2-3,5
    G03819427Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Unplug the connector to the coolant temperature sensor.
  4. Have some paper ready to collect any spilled coolant.
  5. Remove the coolant temperature sensor. Use 83 96 087 SOCKET, COOLANT TEMPERATURE SENSOR B207  .
