Injectors (206), T8

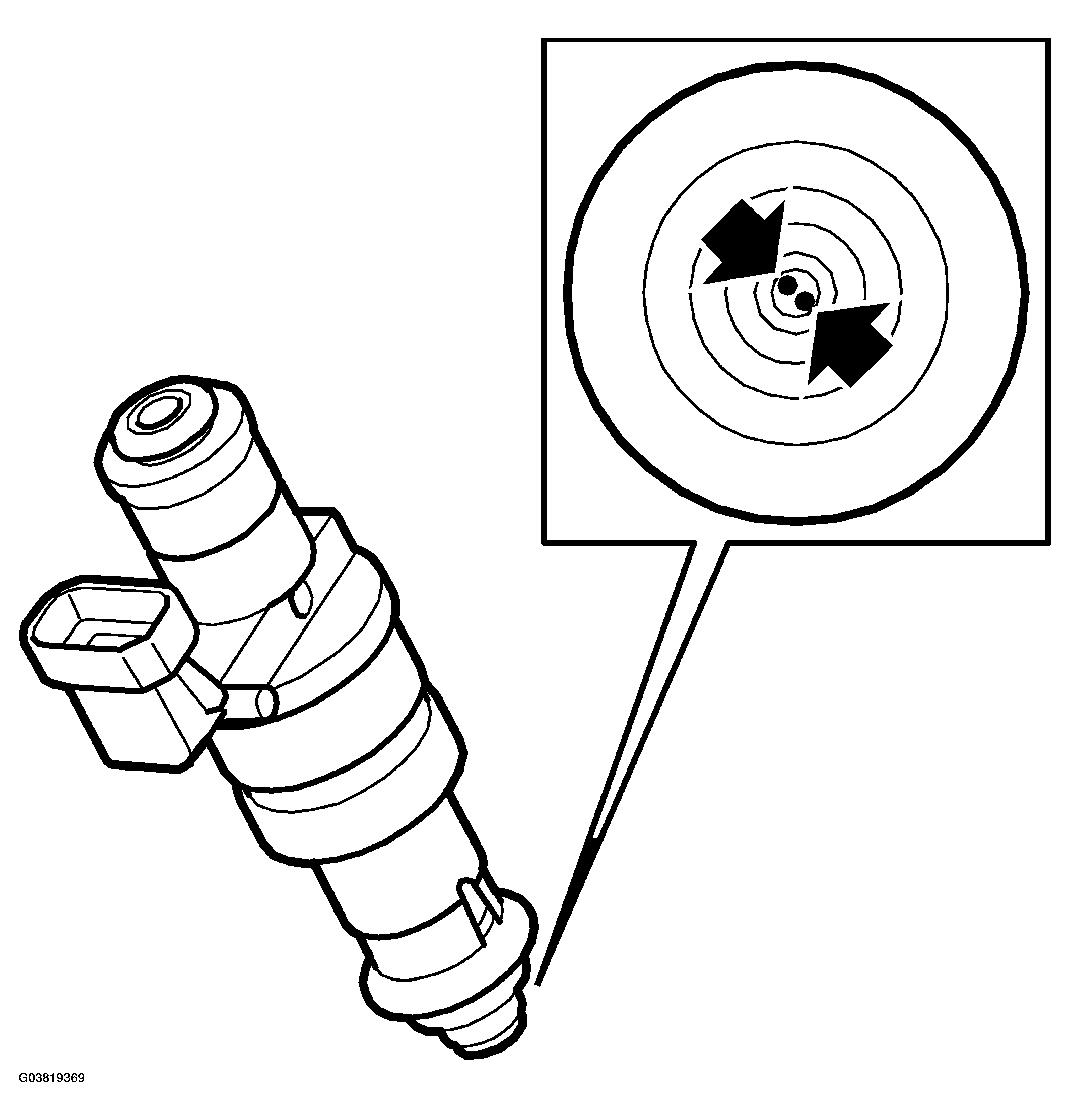

Fig 1: Identifying Injectors (206), T8

Courtesy of SAAB-SCANIA OF AMERICA, INC.

INJECTOR SPECIFICATION

Engine type	B207E, B207L	B207R
Type	Siemens, colour blue	Siemens, colour green
Style	2 hole	2 hole
Resistance	12 Ohm	12 Ohm
Flow capacity	134 +/-5 ml/ 30 s	176 +/-7 ml/ 30 s
Maximum permitted difference between injectors	10 ml/ 30 s	14 ml/ 30 s
