Grounding point G7: EDC16

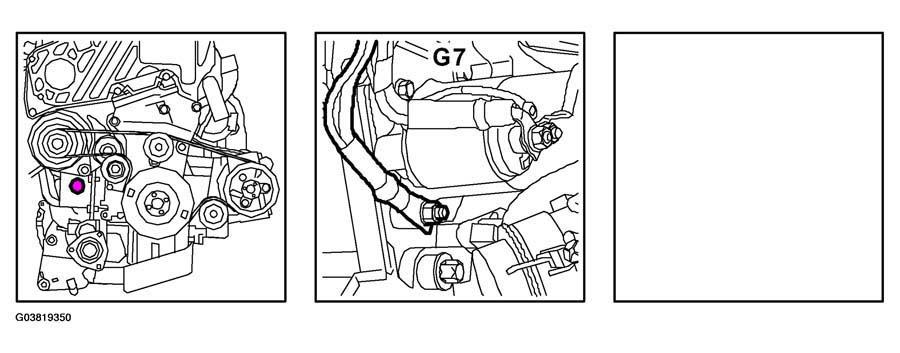

Fig 1: Locating Grounding Point EDC16

G03819350

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location: on lower starter motor retaining bolt

GROUNDING REFERENCE

1	Battery
745	Power steering unit
