Connected components

COMPONENTS NO AND NAME REFERENCE

	Via Crimp connection J108, main wiring harness
102	Relay, fuel pump
323	Motor, fuel pump
323a	Engine, fuel pump, parking heater
575RR	Control module, window lift, rear RH (CV)
702D/P	Control module, front door, RH
702RR	Control module, right rear door (4D)
	Via Crimp J135, inner door harness in the front right door, which is connected to crimp J108
209D/P	Lamp, front right door courtesy lighting
514D/P	Switch, simultaneous central locking, front right door

Crimp J108

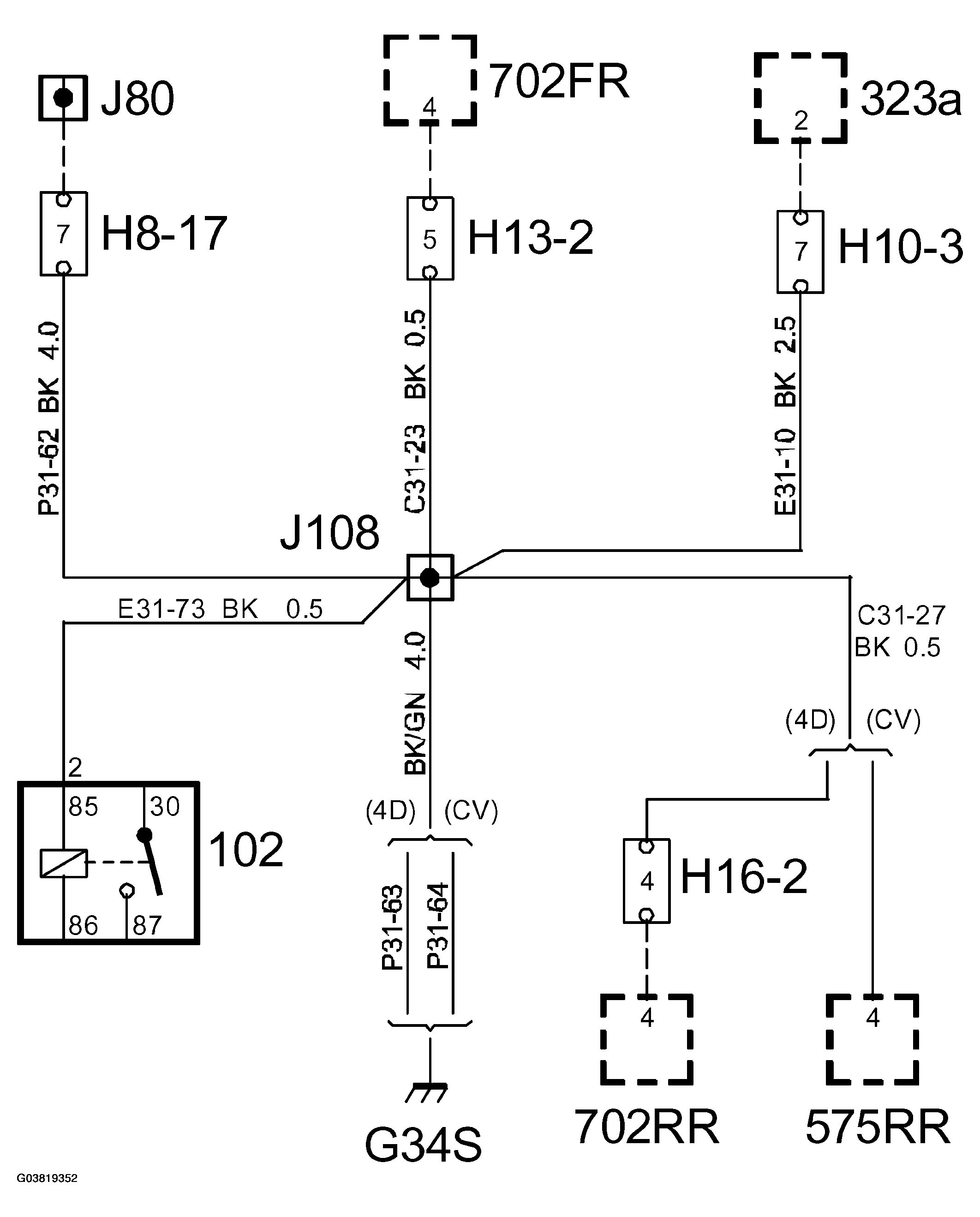

Fig 1: Circuit Diagram - Crimp J108

G03819352

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Connection to G43

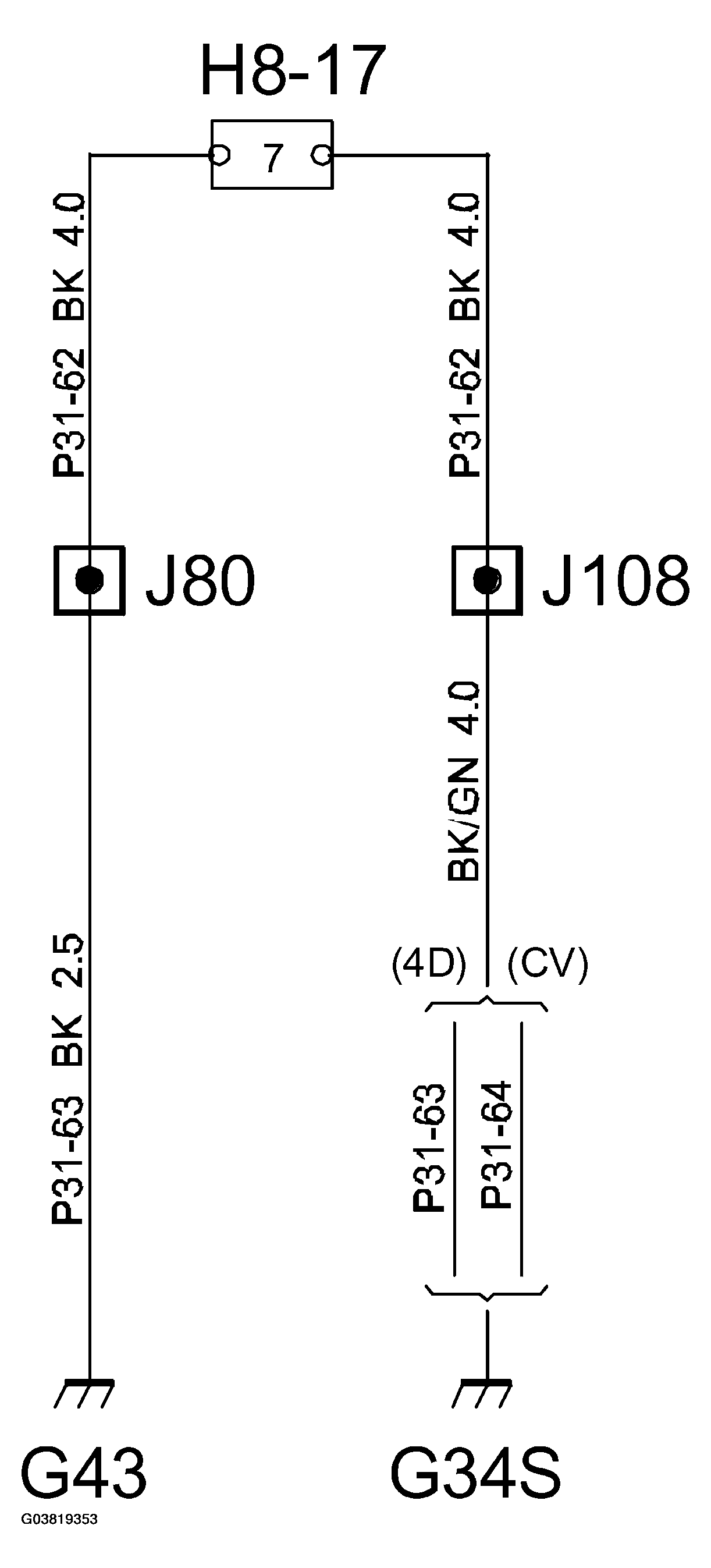

Fig 2: Circuit Diagram - Crimp J108

G03819353

Courtesy of SAAB-SCANIA OF AMERICA, INC.
