Valve gear: Notes

Fig 1: Identifying Inlet Valves And Dimension
G03819160Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Inlet valves
    INLET VALVES SPECIFICATION

    A  5.9625 +/-0.0075 mm
    B  35.1 +/-0.15 mm
    C  102.27 +/-0.15 mm
    D  1.76 mm
    E  45°, 20'

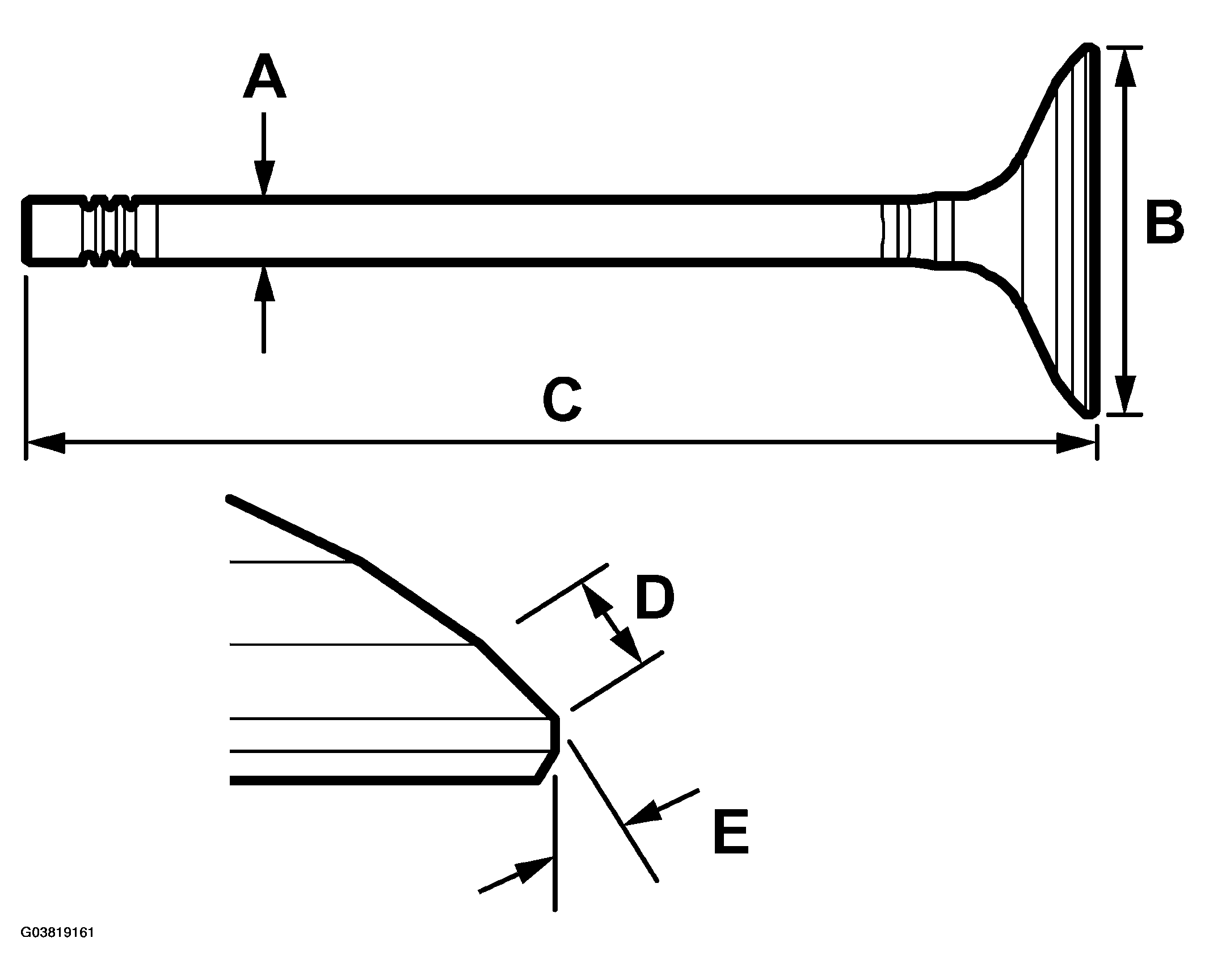

    Fig 2: Identifying Exhaust Valves And Dimension
    G03819161Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Exhaust valves
    EXHAUST VALVES SPECIFICATION

    A  5.953 +/-0.007 mm
    B  30.1 +/-0.15 mm
    C  100.96 mm
    D  2.26 mm
    E  45° 20'
WARNING: The exhaust valves are filled with salt and must not be heated to glowing else there is a risk of explosion.

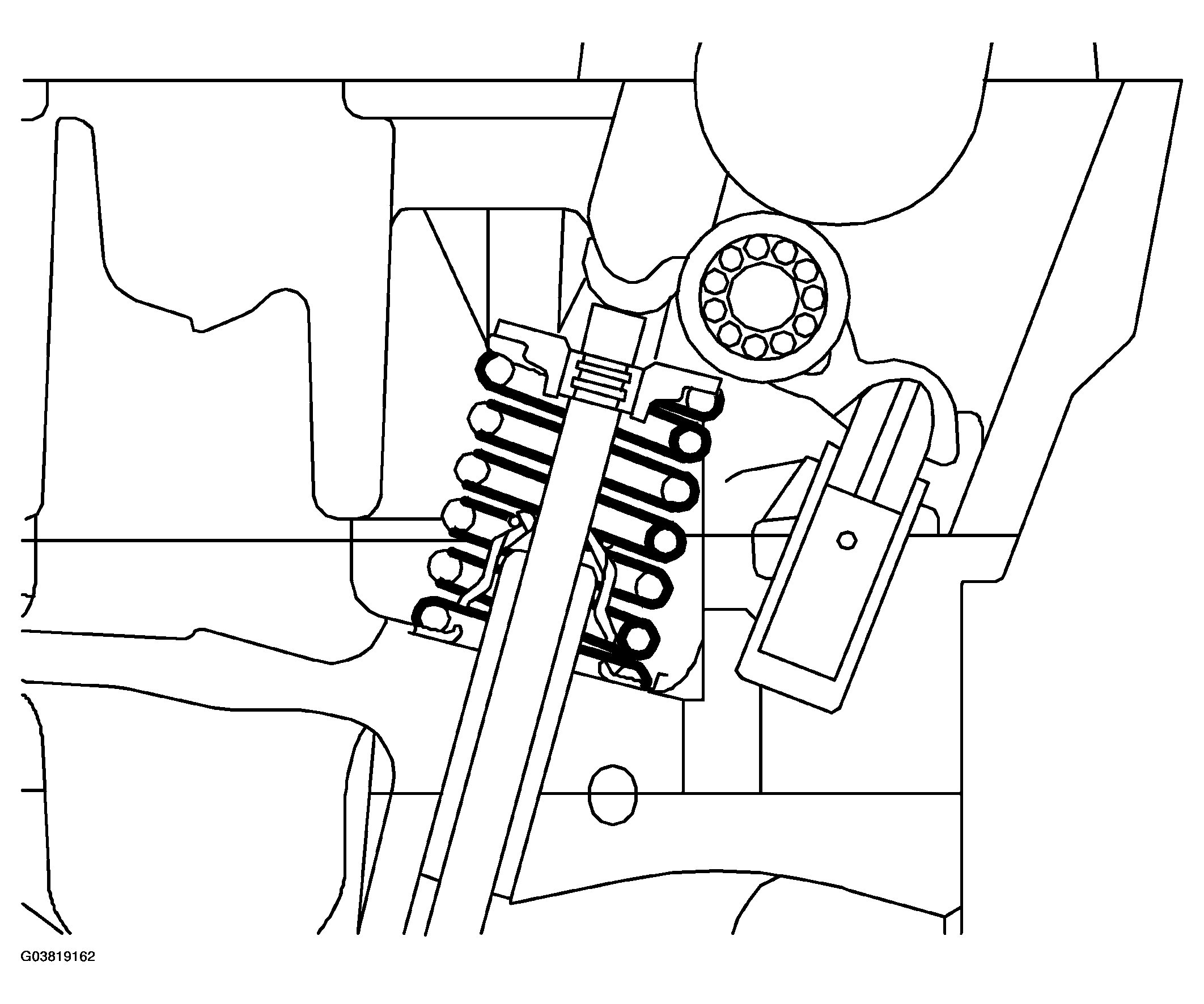

Fig 3: Identifying Valve Guides
G03819162Courtesy of SAAB-SCANIA OF AMERICA, INC.
