To remove

  1. Raise the car.

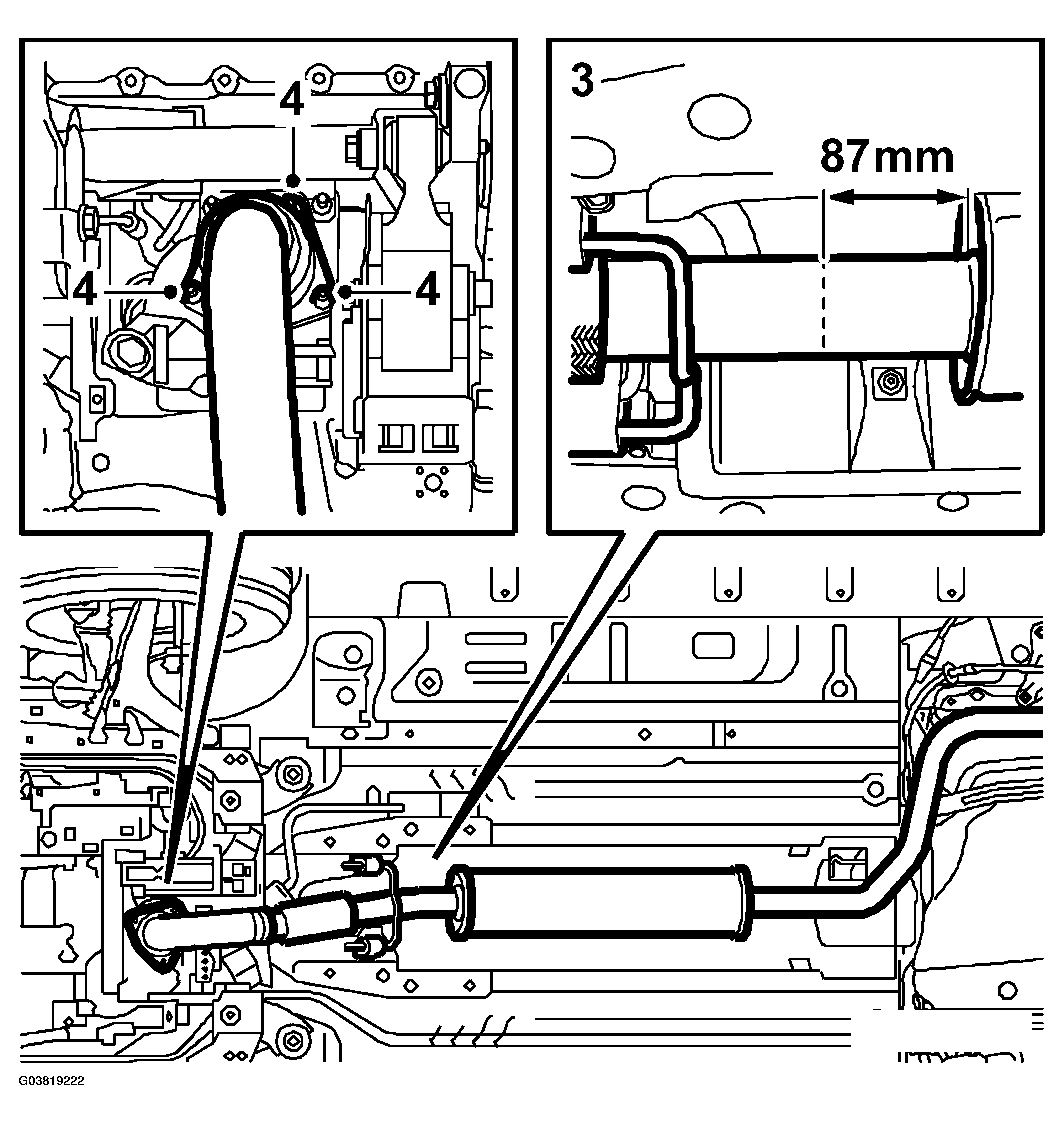

    Fig 1: Illustration For Step (3 And 4)
    G03819222Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the lower engine cover.
  3. Cut the front pipe between the flexipipe and the silencer at 87 mm (see illustration). Cut the pipe at right-angles using 83 95 667 PIPE CUTTER/EXHAUST SYSTEM  .
  4. Undo the nuts to the catalytic converter and remove the front pipe.
