Starter motor, B207: Notes

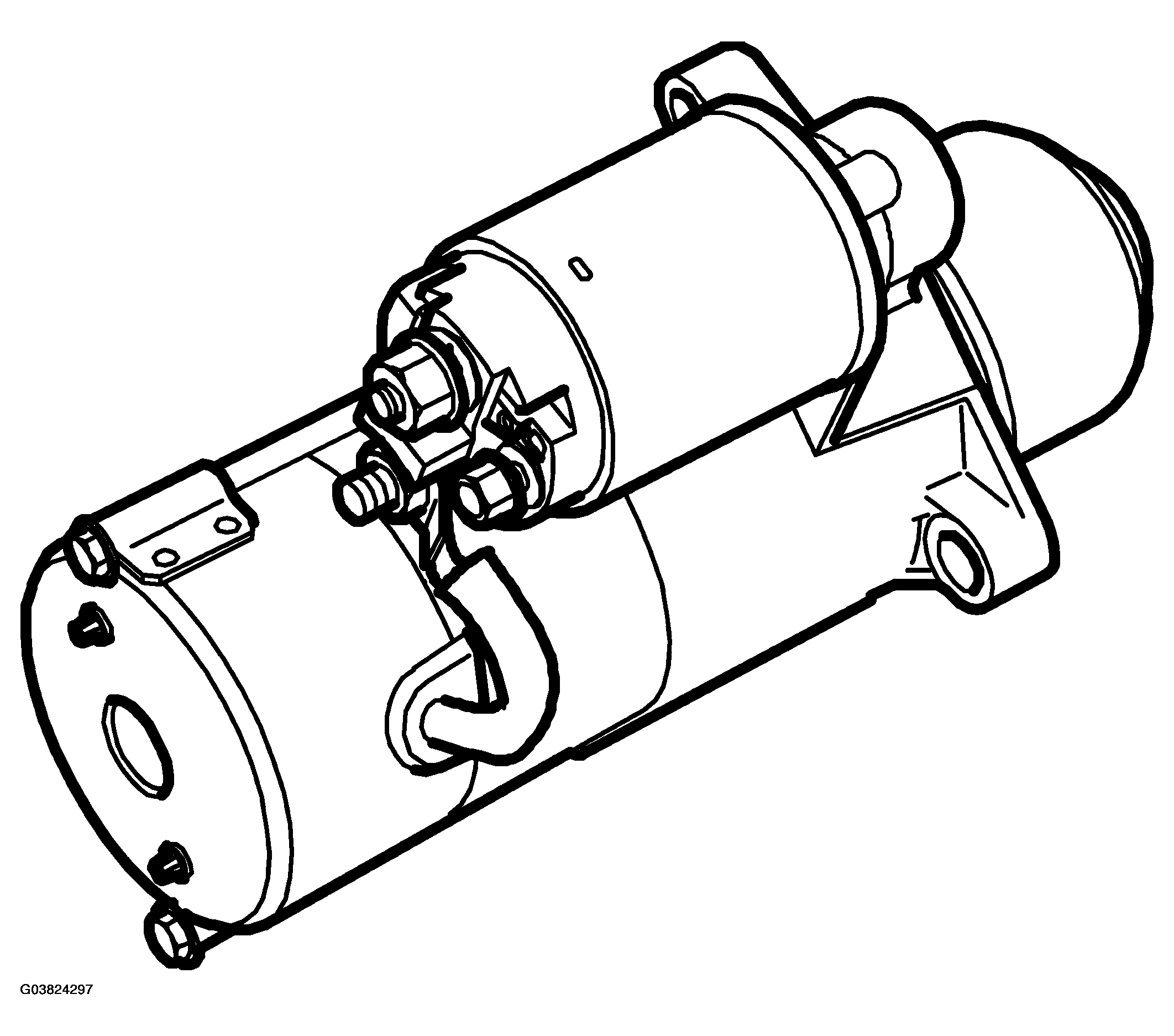

Fig 1: Identifying Starter Motor (B207)
G03824297Courtesy of SAAB-SCANIA OF AMERICA, INC.
STARTER MOTOR DESCRIPTION (B207)

Type designation Delco
Power 1.8 kW
No. of teeth on starter motor pinion 11
Number of teeth on ring gear 135
Ratio engine/starter motor 12.5:1
