Main components: Overview

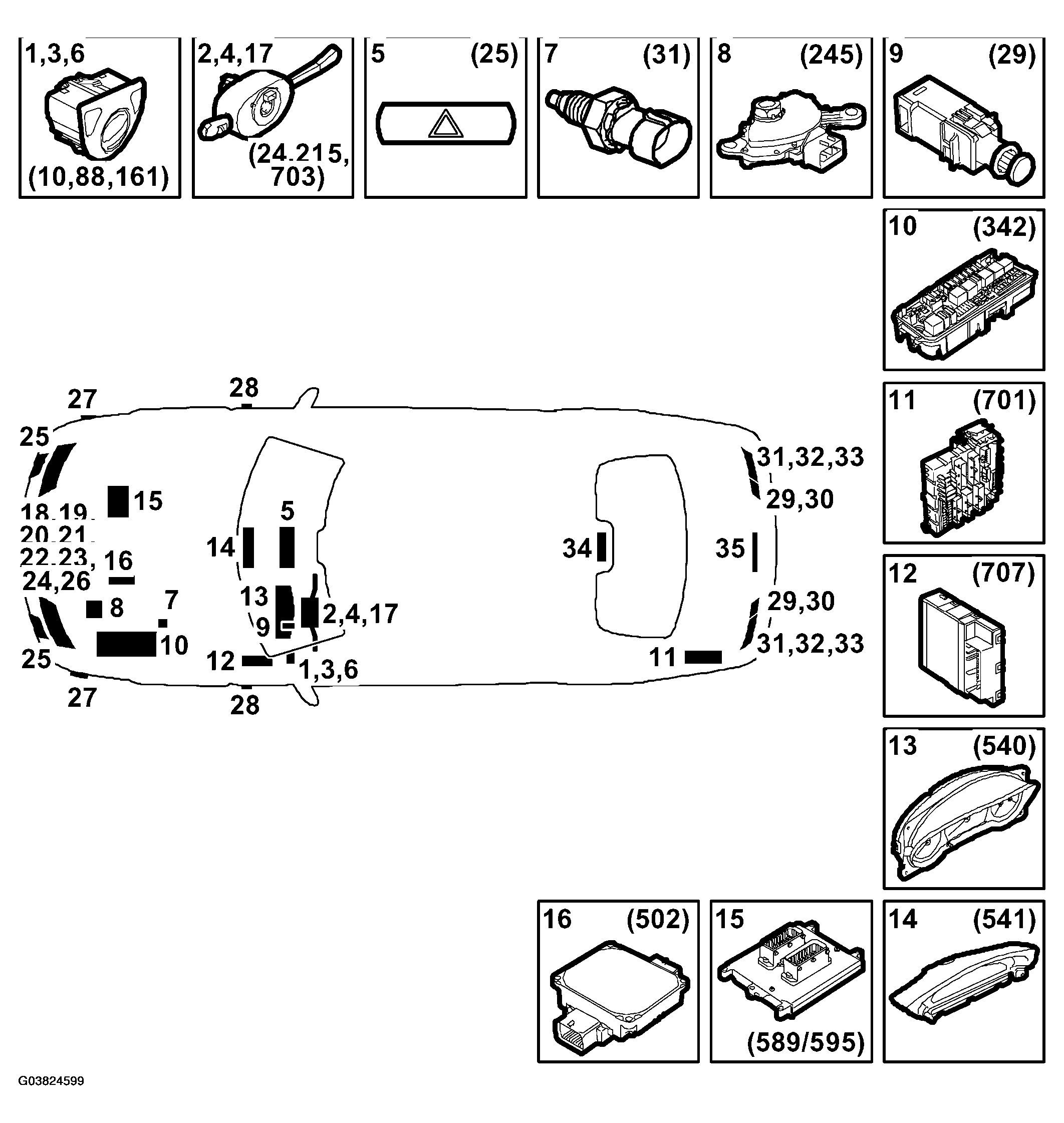

Fig 1: Illustration For Step 1-35
G03824599Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Switch, lights (10)
  2. Switch, direction indicators (24)
  3. Switch, fog lights (88)
  4. Dipswitch (215)
  5. Switch, hazard flashers (25)
  6. Switch, rear fog light (161)
  7. Switch, reversing lights (31)
  8. Transmission range switch, automatic transmission (245)
  9. Brake light switch (29)
  10. Underhood Electrical Centre, UEC (342)
  11. Rear Electrical Centre, REC (701)
  12. Control module, BCM (707)
  13. Main instrument unit, MIU (540)
  14. SID (541)
  15. Engine Control Module (ECM)
  16. Control module, TCM (502)
  17. Column Integration Module CIM (703a)
  18. Ignition transformer, xenon lamp (663a)
  19. Xenon lamp ballast (663b)
  20. Solenoid, xenon lamp screen (665)
  21. Xenon lamp (11a)
  22. Main beam lamp (11)
  23. Dipped beam lamp (12)
  24. Front parking lights (13F)
  25. Front direction indicators (27F)
  26. Fog lights (85)
  27. Side marker light (234F)
  28. Side direction indicators (89)
  29. Reversing lights (32)
  30. Rear fog light (33)
  31. Rear parking lights (13R)
  32. Rear direction indicators (27R)
  33. Brake lights (30)
  34. Lamp, high-level brake light (30RC)
  35. Number plate lamp (15)

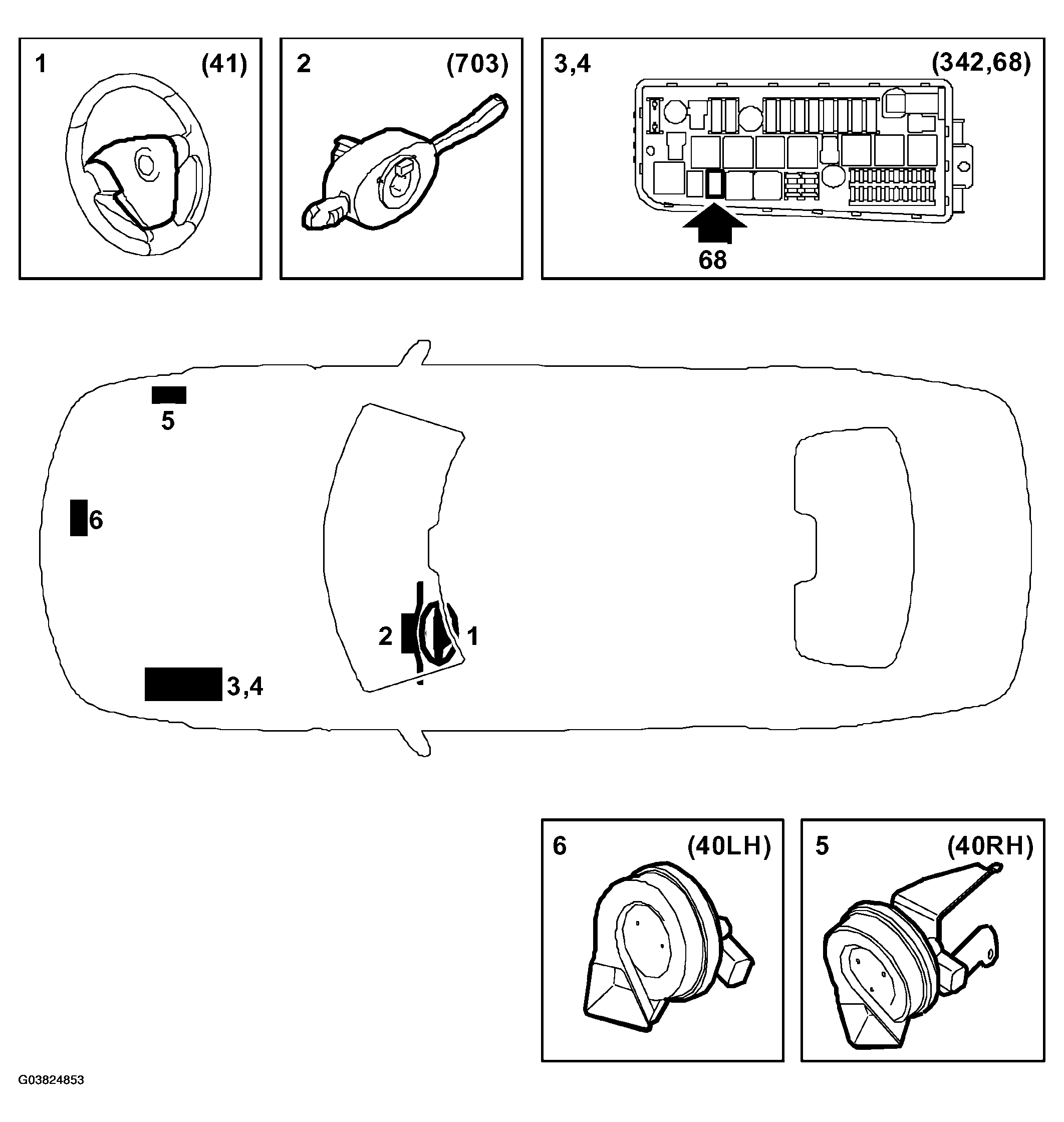

Fig 1: Identifying Main Components Of Horn
G03824853Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Horn switch (41)
  2. Column Integration Module, CIM (703a)
  3. Underhood Electrical Centre, UEC (342)
  4. Relay, horn (68)
  5. Horn, right (40RH)
  6. Horn, left (40LH)
