Main components: 4D

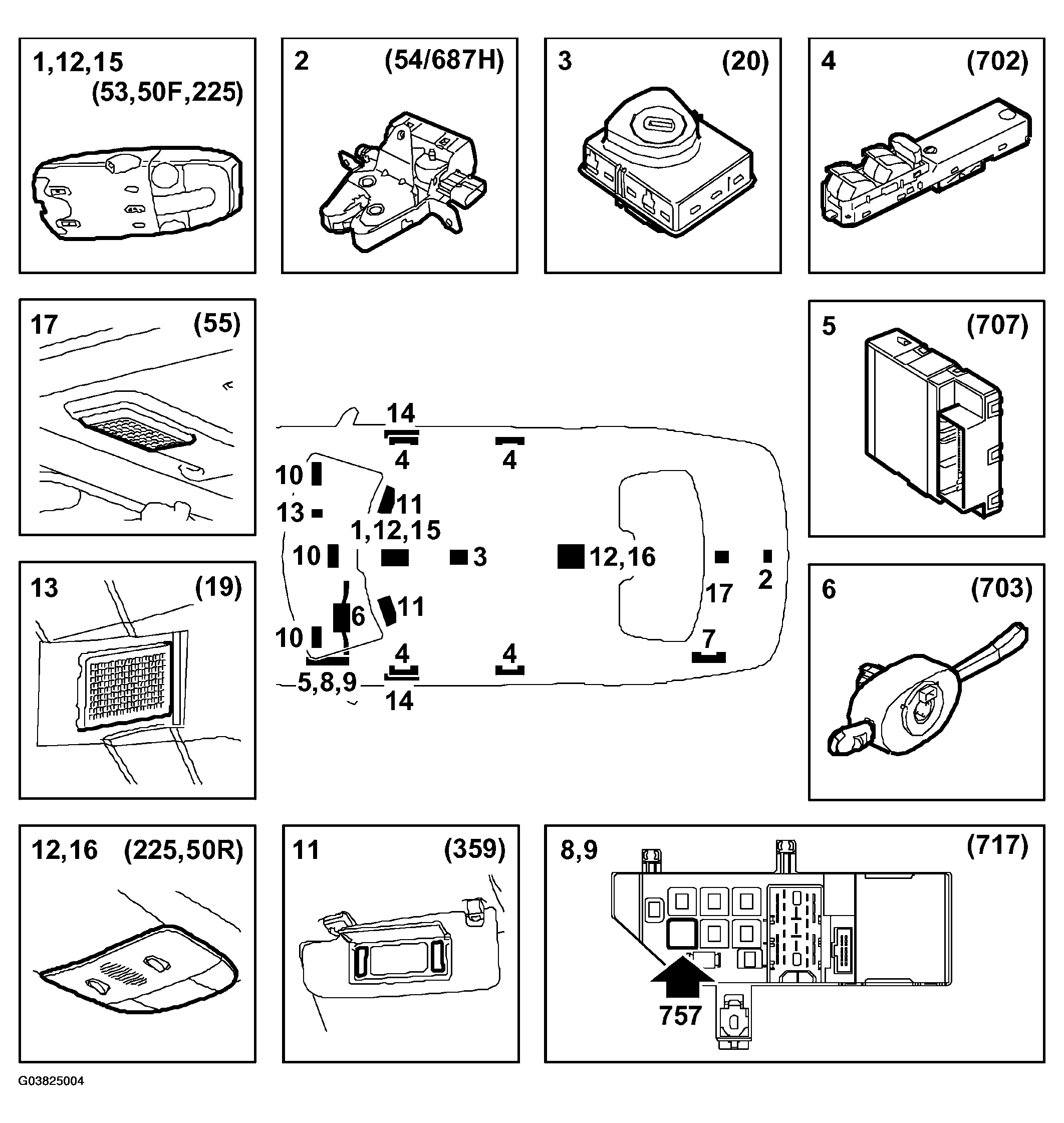

Fig 1: Identifying Main Components (4D)
G03825004Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Interior lighting switch (53)
  2. Door switch, luggage compartment (54/687H)
  3. Ignition Switch Module (ISM) (20)
  4. Door control module DDM/PDM/RLDM/RRDM (702 D/P/RL/RR)
  5. Body Control Module (BCM) (707)
  6. Column Integration Module (CIM) (703a)
  7. Rear Electrical Centre (REC) (701)
  8. Relay, interior lighting (717)
  9. Relay, +15, IPEC (757C)
  10. Lamp, front floor lighting (613F)
  11. Lamp, vanity mirror lighting (359)
  12. Reading light (225)
  13. Lamp, glove box lighting (19)
  14. Lamp, courtesy lighting (209)
  15. Lamp, front roof lighting (50F)
  16. Lamp, rear roof lighting (50R)
  17. Lamp, luggage compartment lighting (55)
