Front load angle sensor (704F): Connection

FRONT LOAD ANGLE SENSOR (704F) CONNECTION

Pin No.	Signal type	Description
1	Ground	Ground from AHL control module pin 7.
5	Power supply	Power supply 5 V, from AHL control module pin 8.
6	Signal	PWM signal with information on sensor status to AHL control module pin 5.

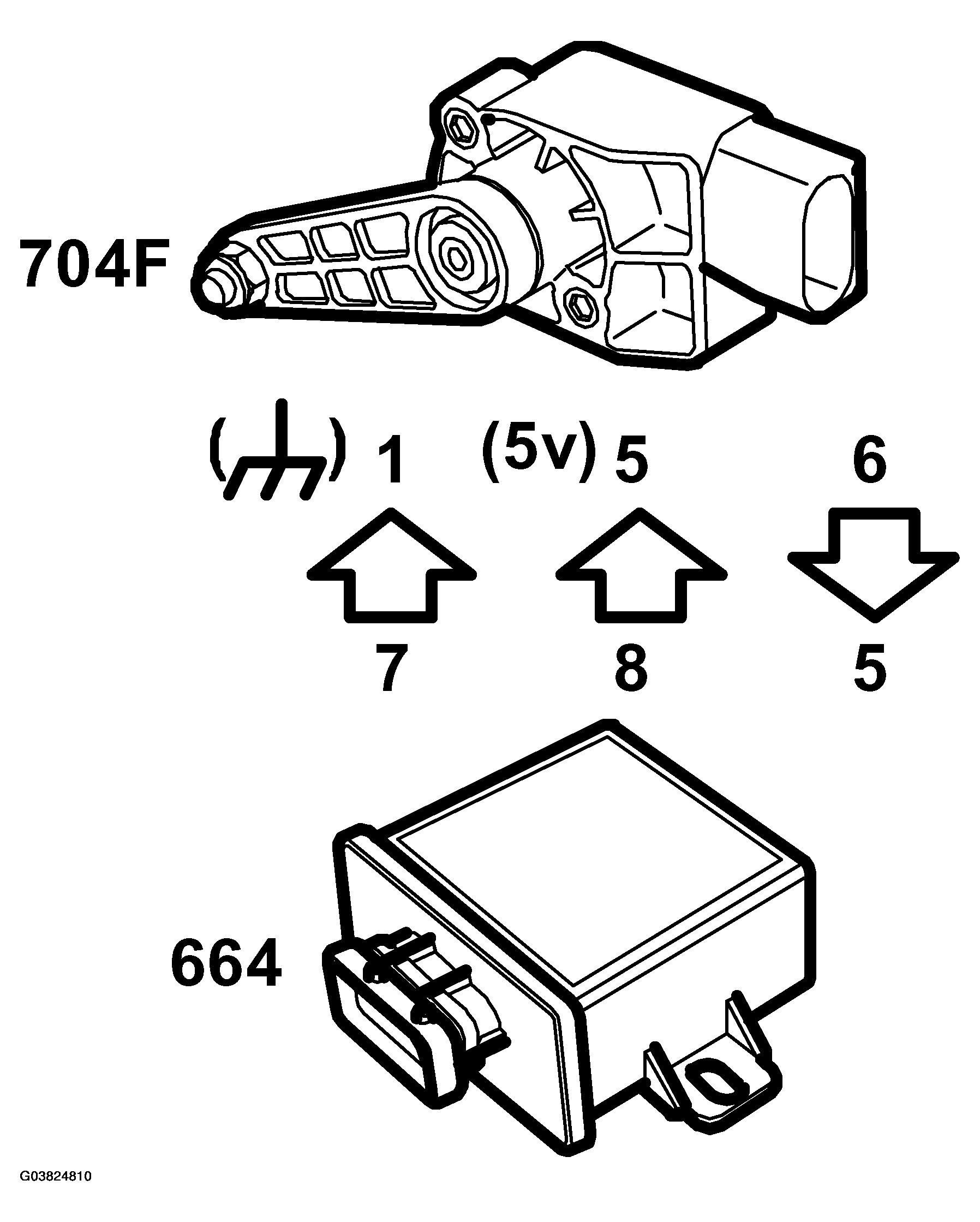

Fig 1: Front Load Angle Sensor (704F) Communication Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

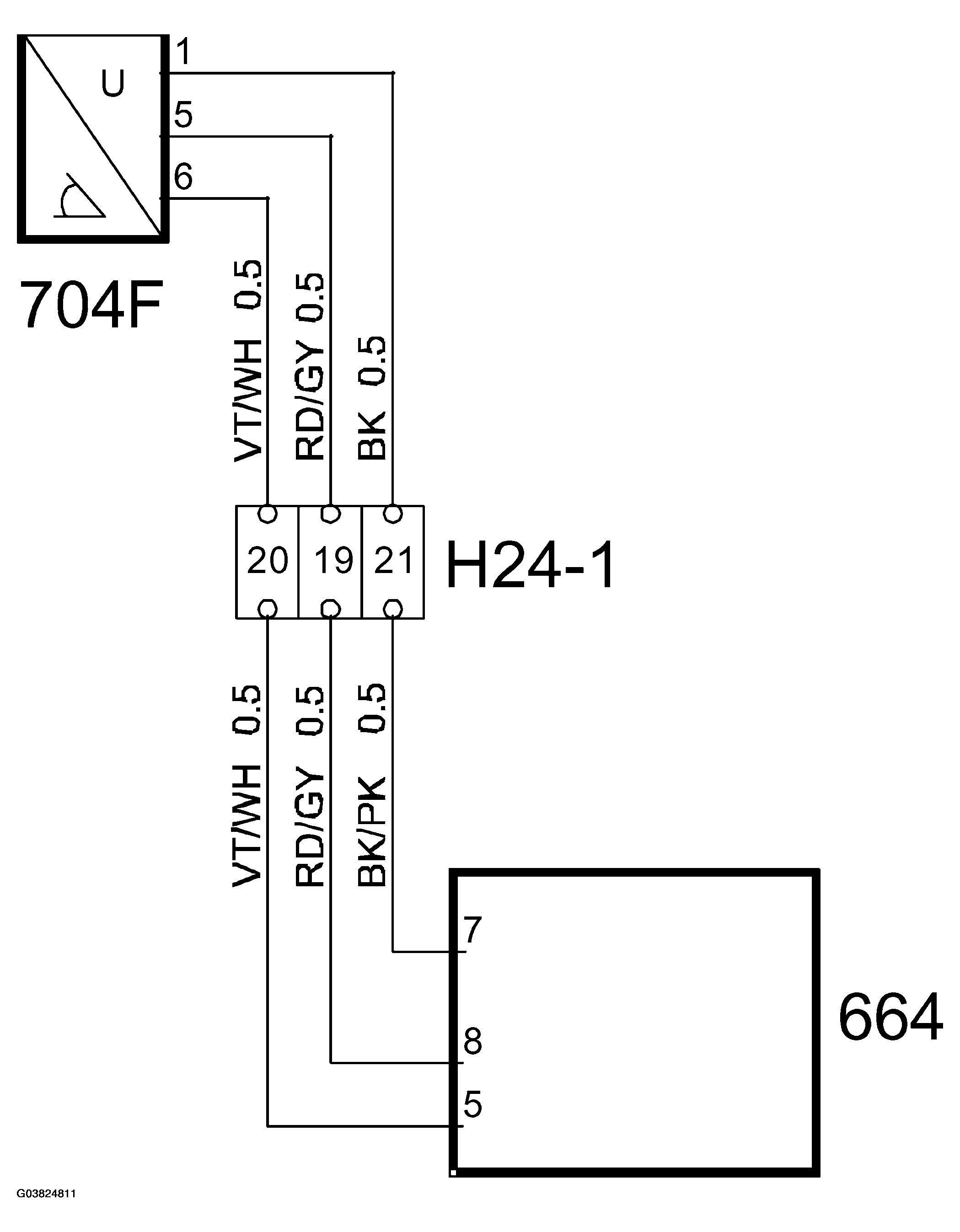

Fig 2: Front Load Angle Sensor (704F) Circuit

Courtesy of SAAB-SCANIA OF AMERICA, INC.
