Interior lighting

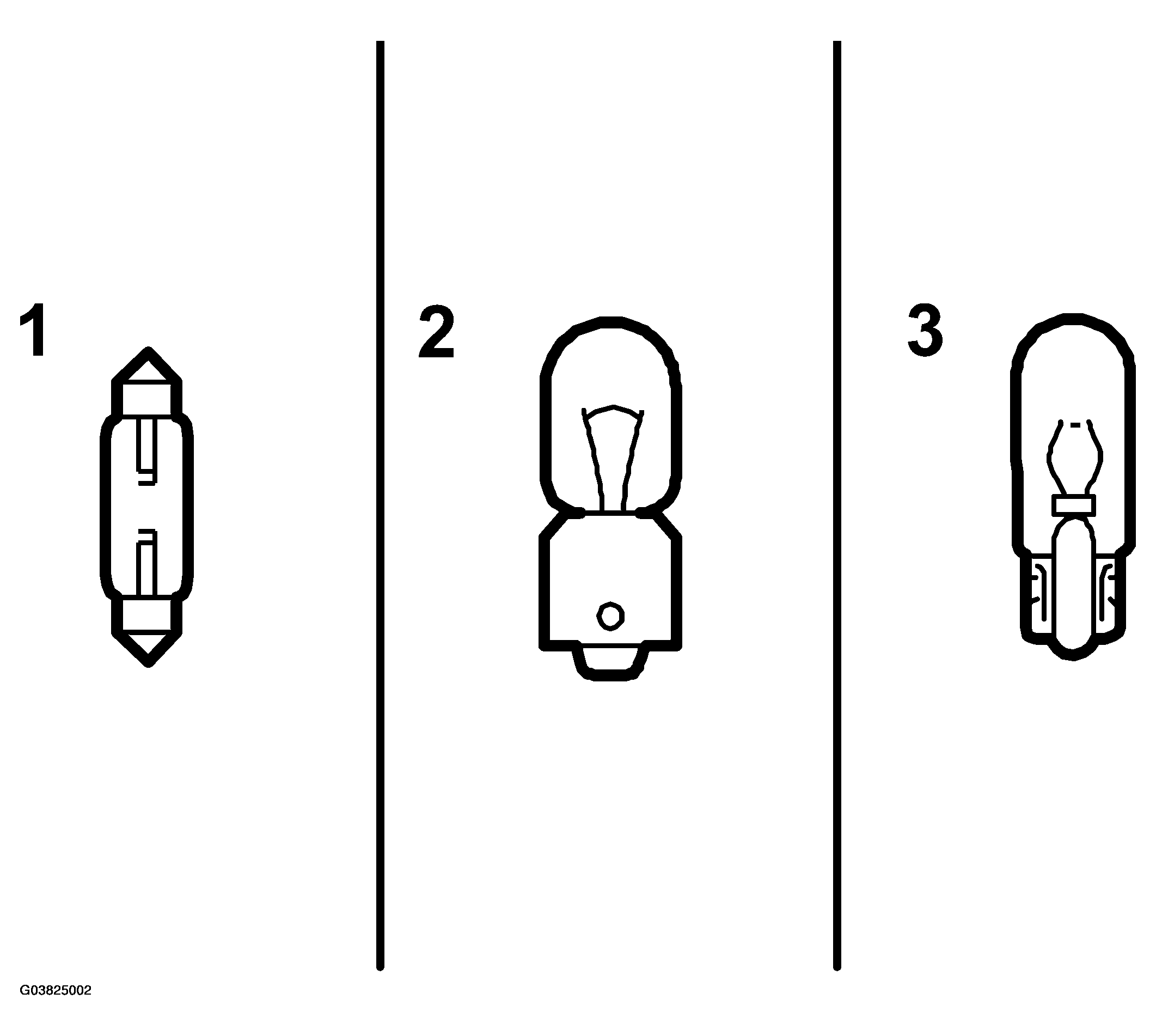

Fig 1: >Illustration For Step 1-3

G03825002

Courtesy of SAAB-SCANIA OF AMERICA, INC.

INTERIOR LIGHTING - TECHNICAL DATA

	Rating(W)	Fitting	Position
Glove box Rear roof lighting Courtesy lights	10	SV 8.5 -8	1
Reading lamp, rear	4	BA 9 s	2
Front roof lighting Spotlight, front	5	W2.1x9.5d	3

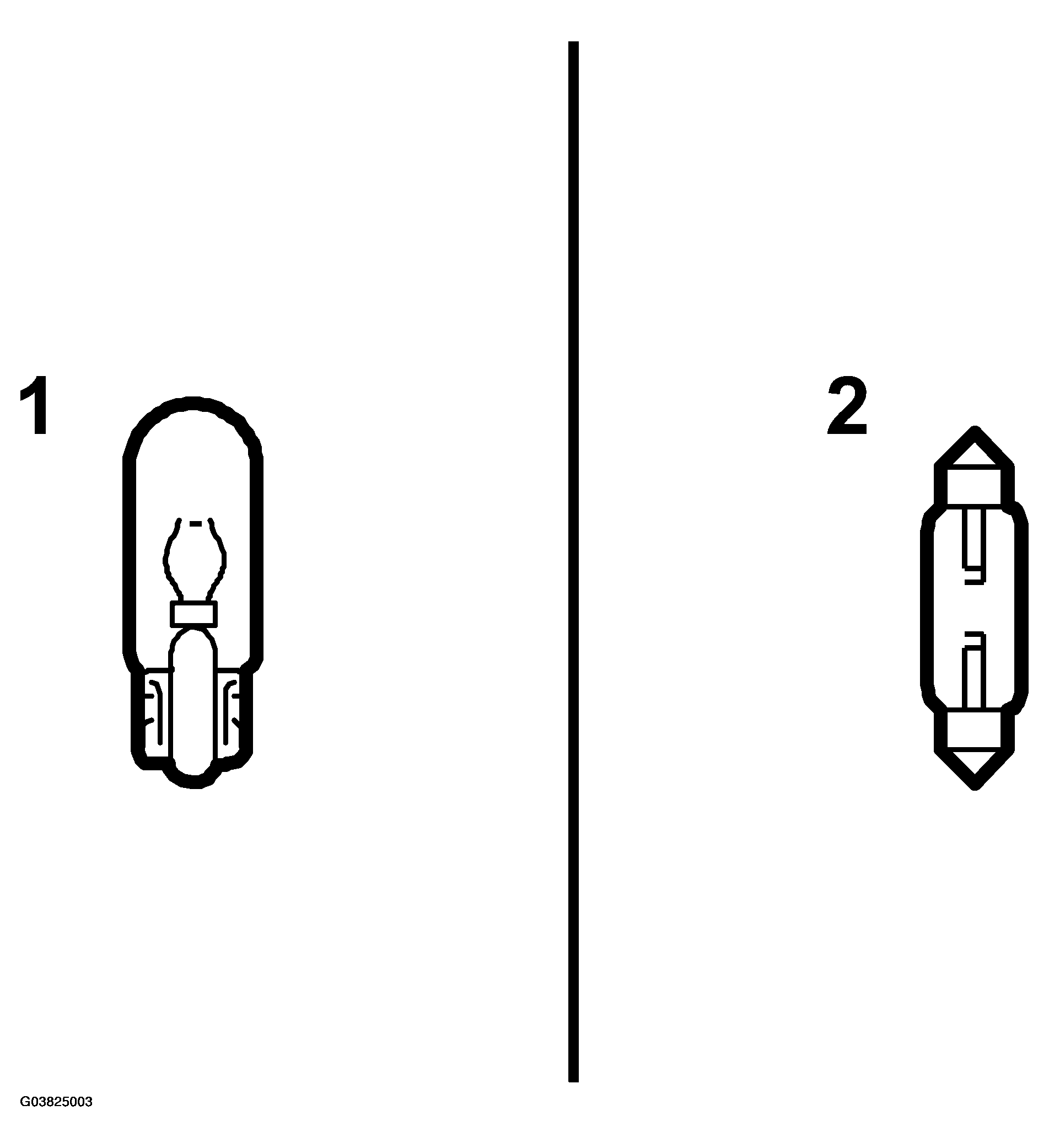

Fig 2: >Illustration For Step 1-2

G03825003

Courtesy of SAAB-SCANIA OF AMERICA, INC.

INTERIOR LIGHTING - TECHNICAL DATA

	Rating(W)	Fitting	Position
Sun visor lighting Lighting for switch/ashtray	1,2	W2x4.6d	1
Luggage compartment lighting	5	W2.4x9.5d	2
