Grounding point G3: Notes

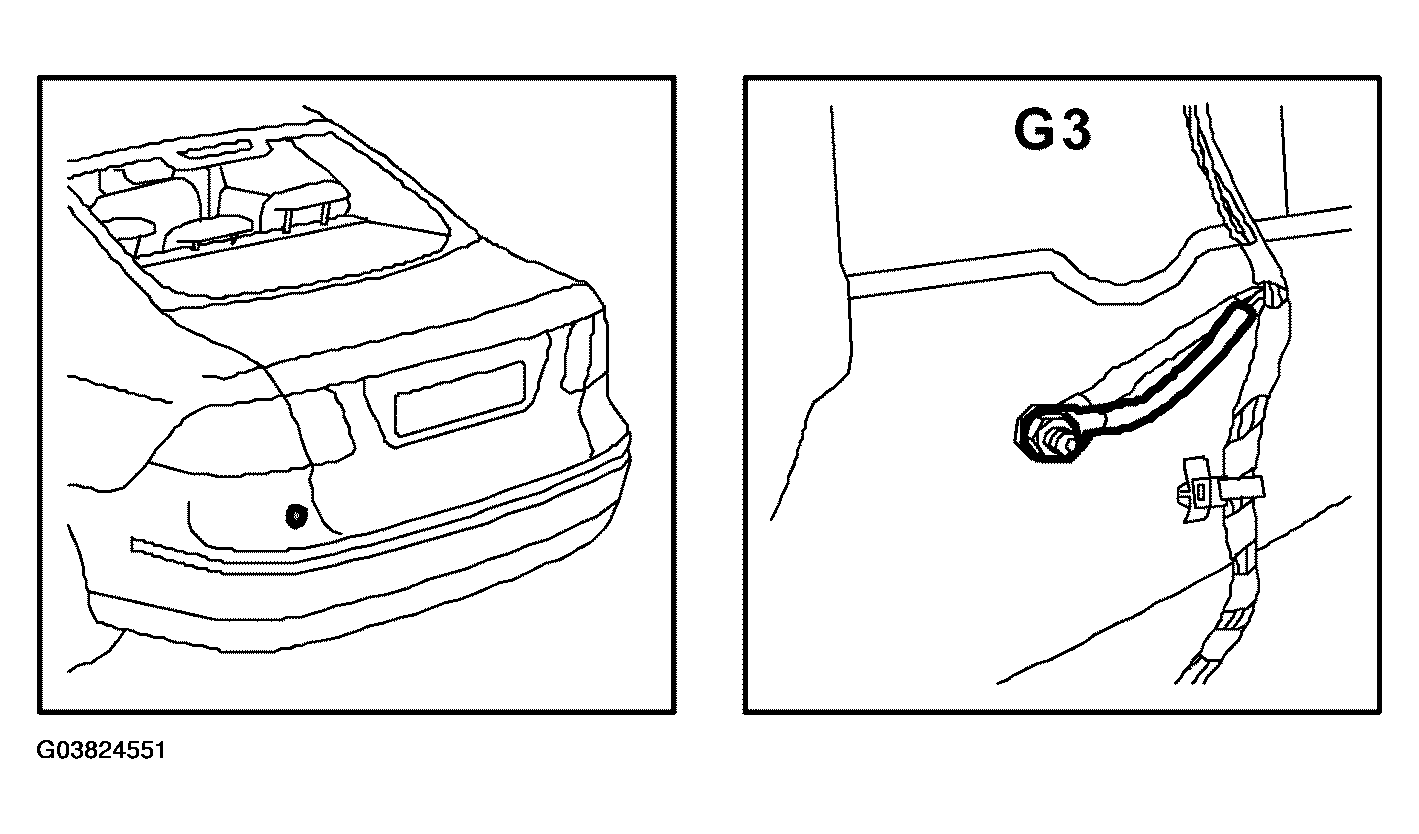

Fig 1: Identifying Grounding Point G3 And Location
G03824551Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  In boot below left light cluster

The grounding point is connected with grounding point G29 via the boot electrical centre 701.



Fig 1: Identifying Grounding Point G3 And Location
G03824966Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  In boot below left light cluster

The grounding point is connected with grounding point G29 via the boot electrical centre 701.
