Crimp J40, engine harness, Trionic: Notes

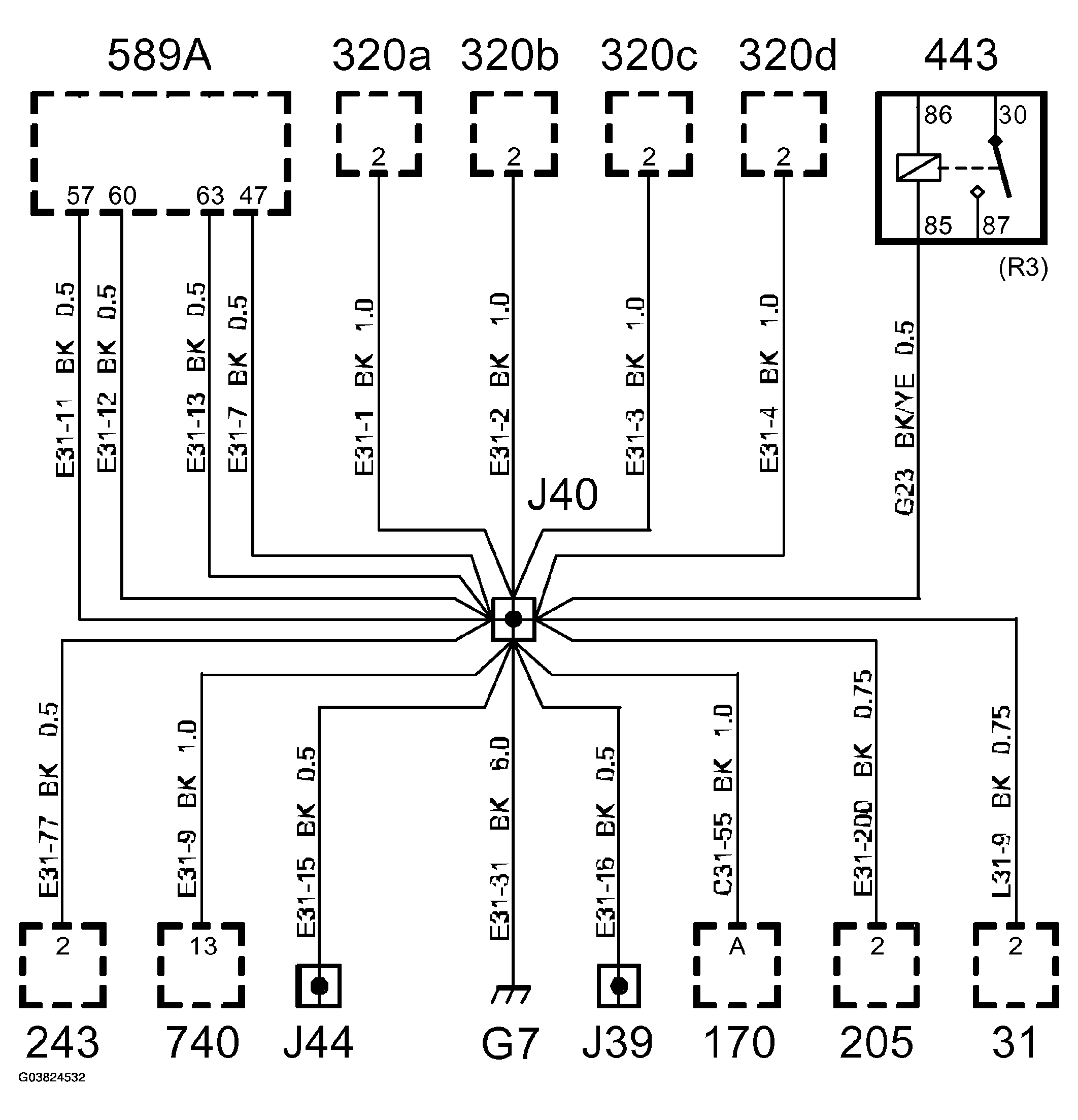

Fig 1: Identifying J40 Crimp Connection Diagram (Engine Harness - Trionic)
G03824532Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  Approximately 190 mm from crankshaft position sensor branching point towards the engine control module
