To remove

  1. Remove the cover of the dashboard fuse box.

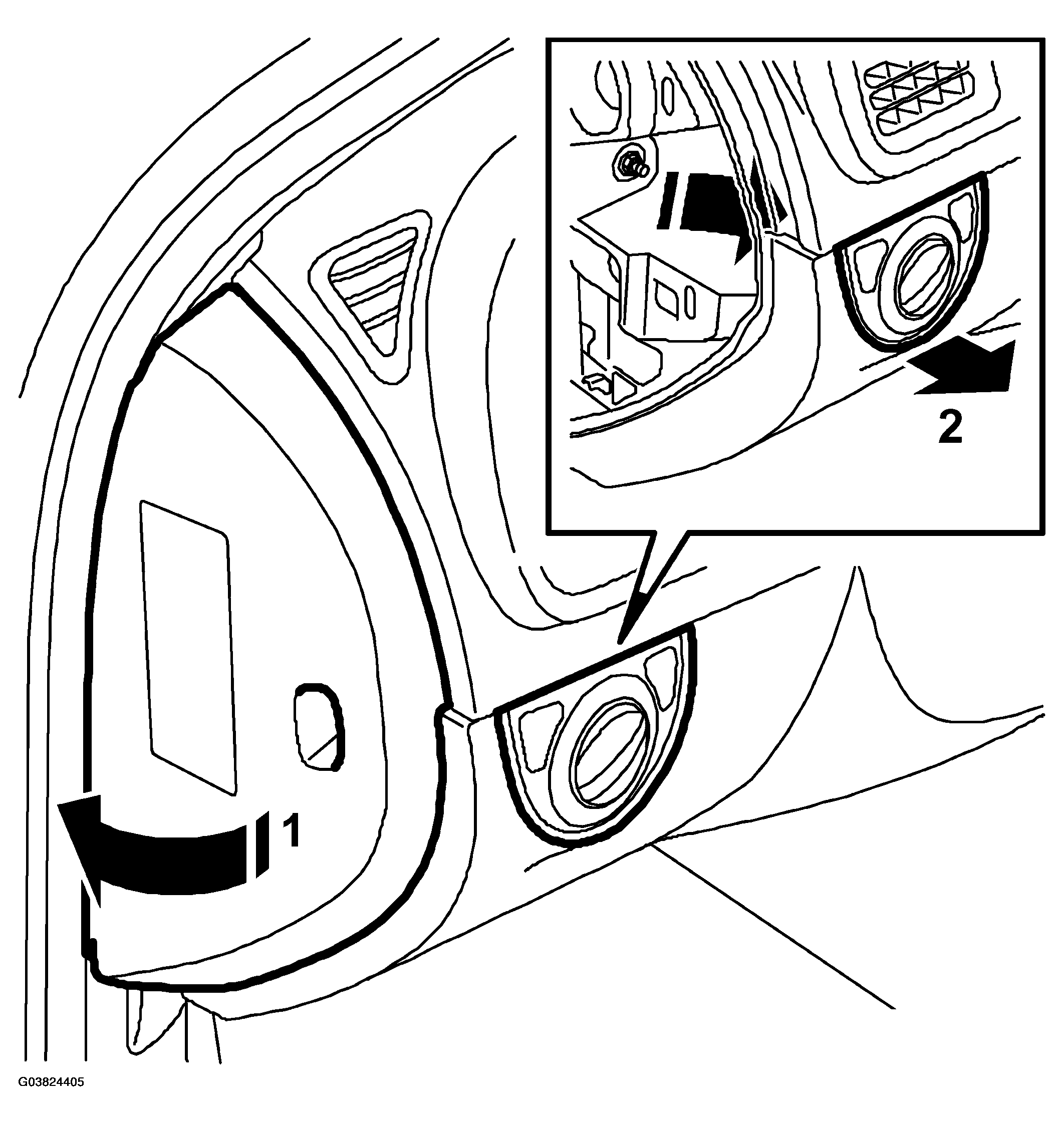

    Fig 1: Illustration For Step 1-2
    G03824405Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the light switch by pressing it out from the back of the panel.
  3. Separate connector.

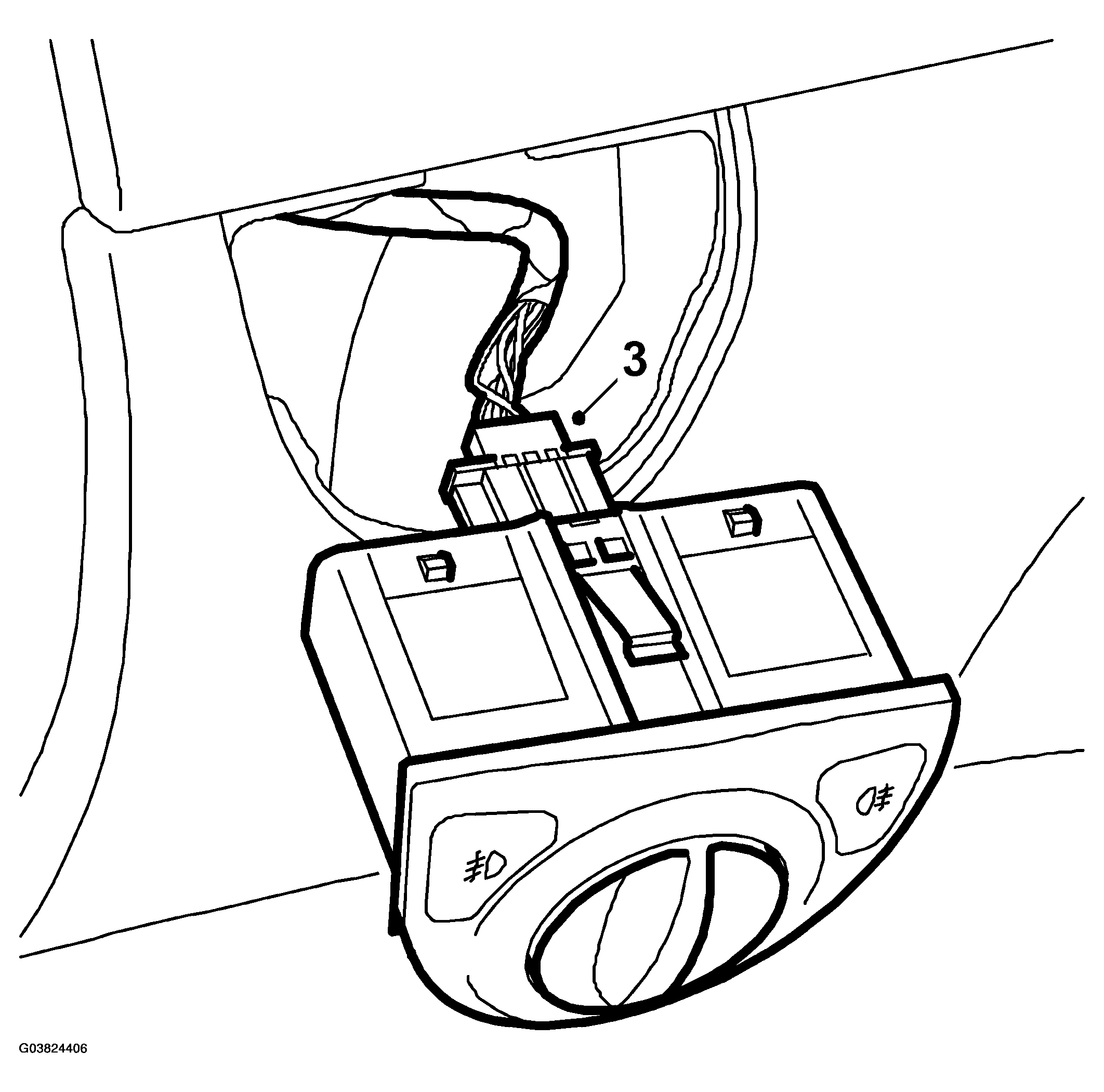

    Fig 2: Illustration For Step 3
    G03824406Courtesy of SAAB-SCANIA OF AMERICA, INC.
