To remove

  1. LH:  Move the radiator hose to the side and remove the battery cover.

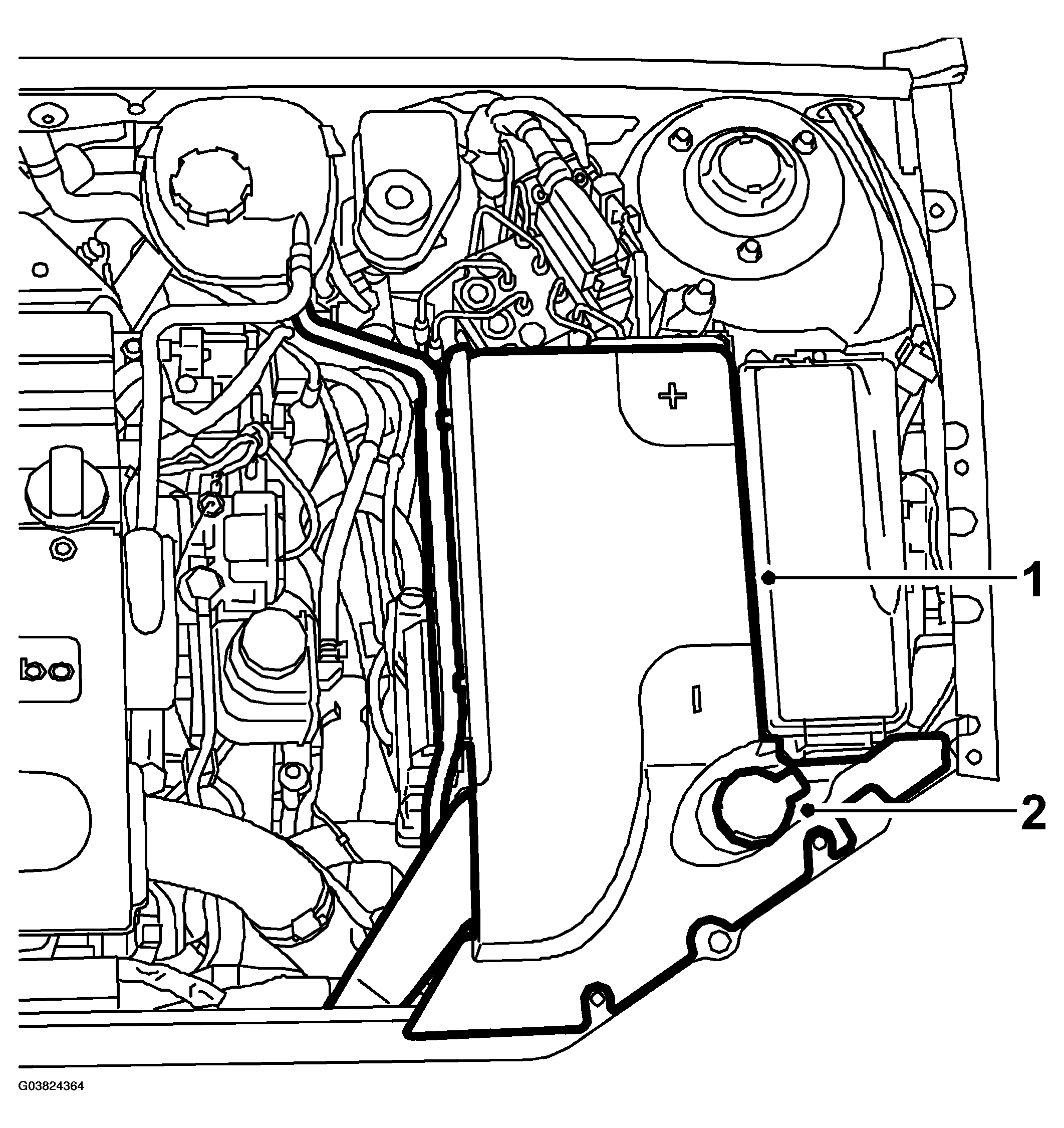

    Fig 1: Illustration For Step 1-2
    G03824364Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. LH:  Remove the filler pipe of the washer fluid reservoir.
  3. Remove the bulb socket by turning anticlockwise.

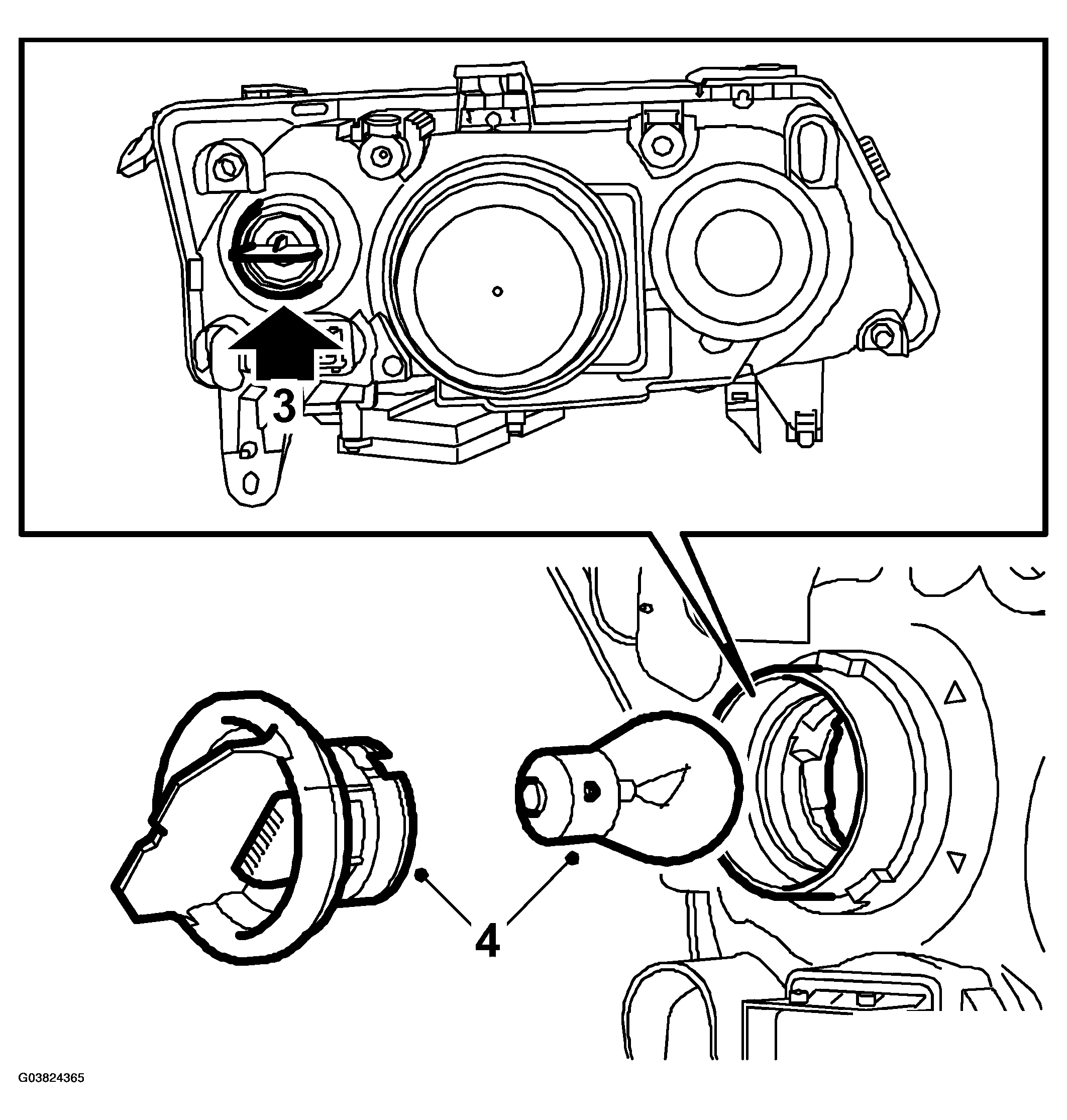

    Fig 2: Illustration For Step 3-4
    G03824365Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the bulb from the socket by pressing it in slightly and turning anticlockwise.
