Main components, Navigation

4D

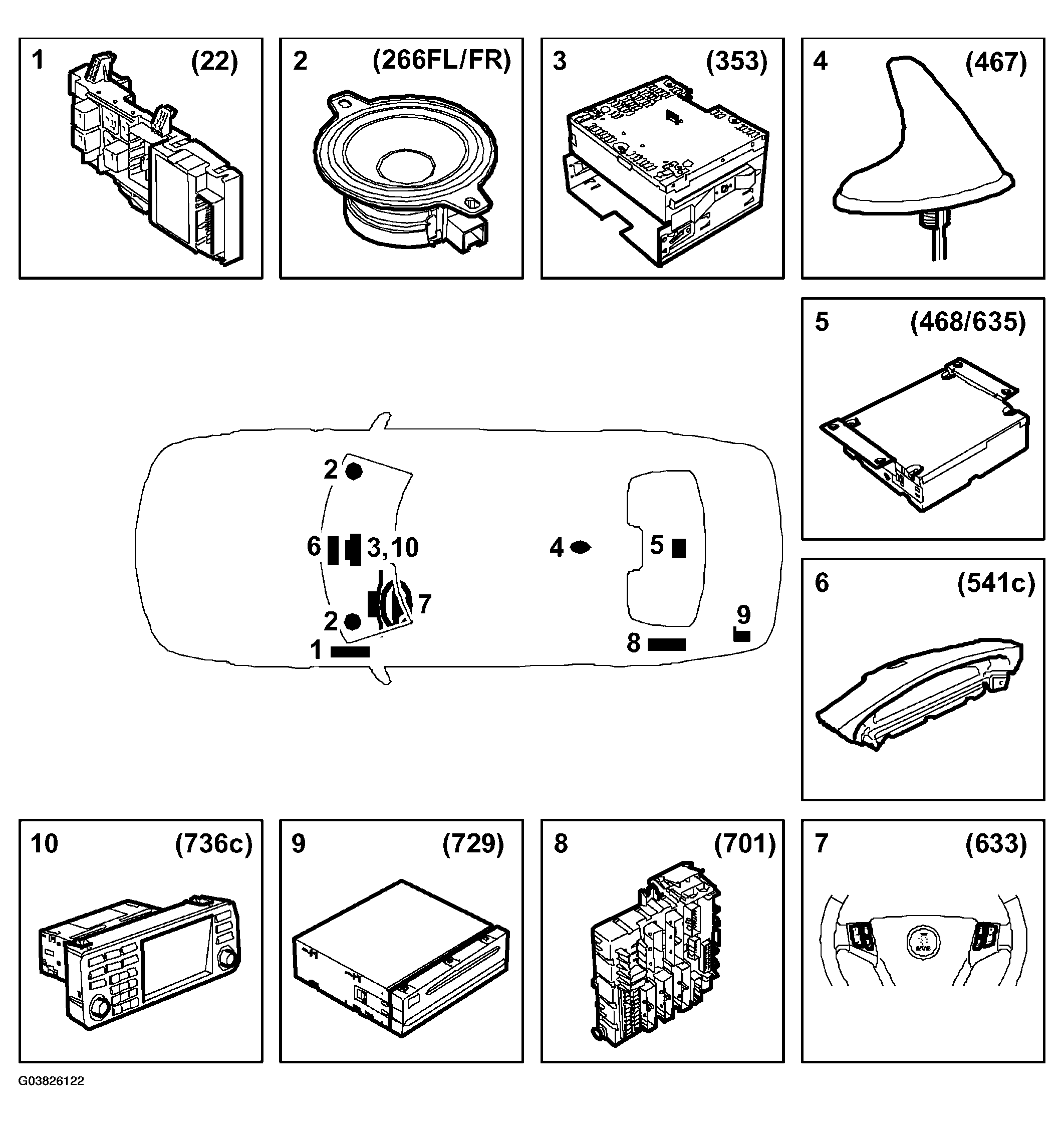

Fig 1: Identifying Navigation Main Components (4D)

G03826122

Courtesy of SAAB-SCANIA OF AMERICA, INC.

CV

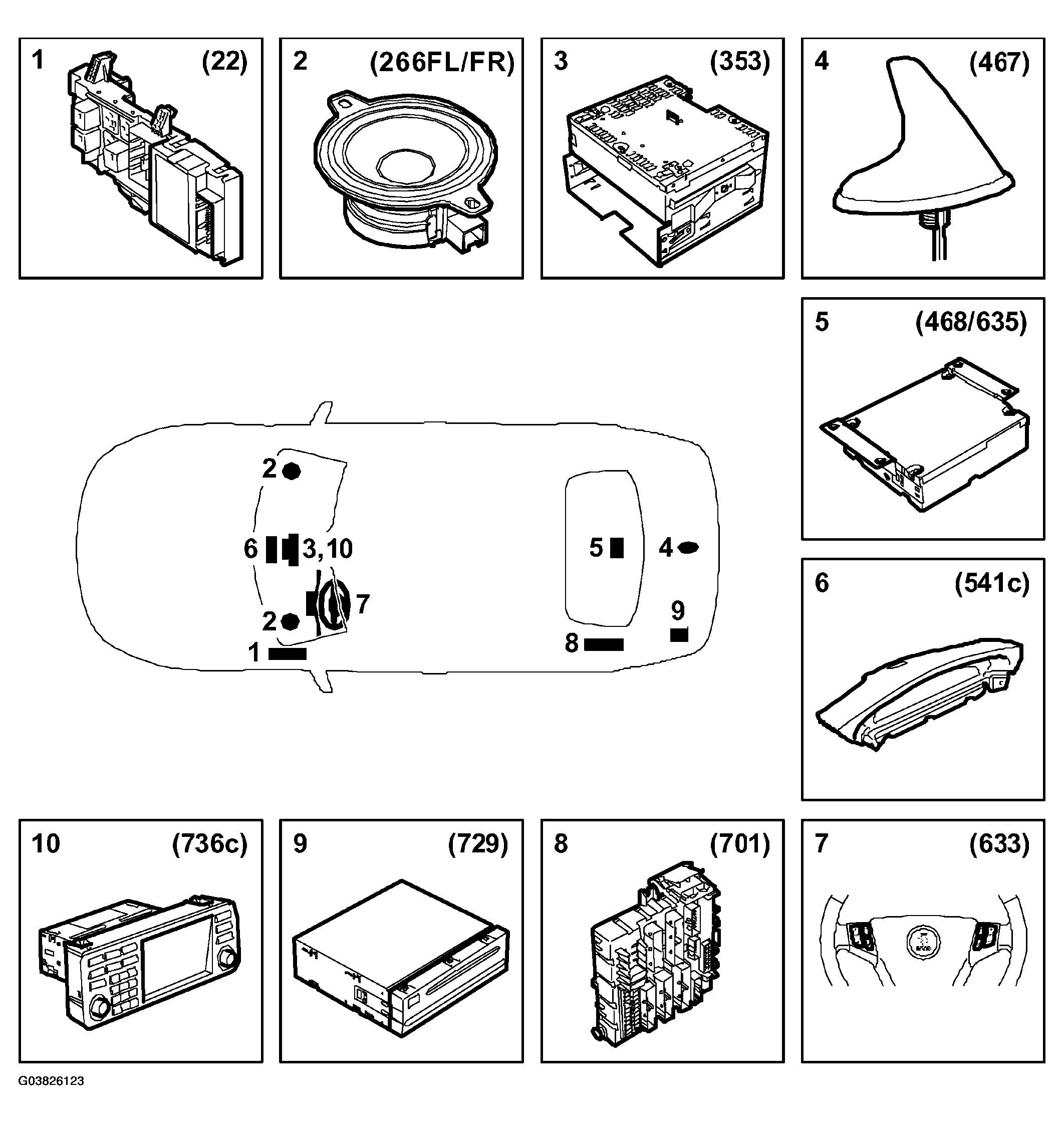

Fig 2: Identifying Navigation Main Components (CV)

G03826123

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Electrical centre, dashboard (22)
Speaker (266 FR, FL)
Entertainment Head Unit, EHU (353)
Antenna, GPS/GSM (467)
Navigation unit, CU/PU (468/635)
SID (541c)
Steering wheel controls (633)
Rear Electrical Centre, REC (701)
DVD unit (729)
Control panel, Infotainment system 3, ICM3 (736c)
