Navigation unit

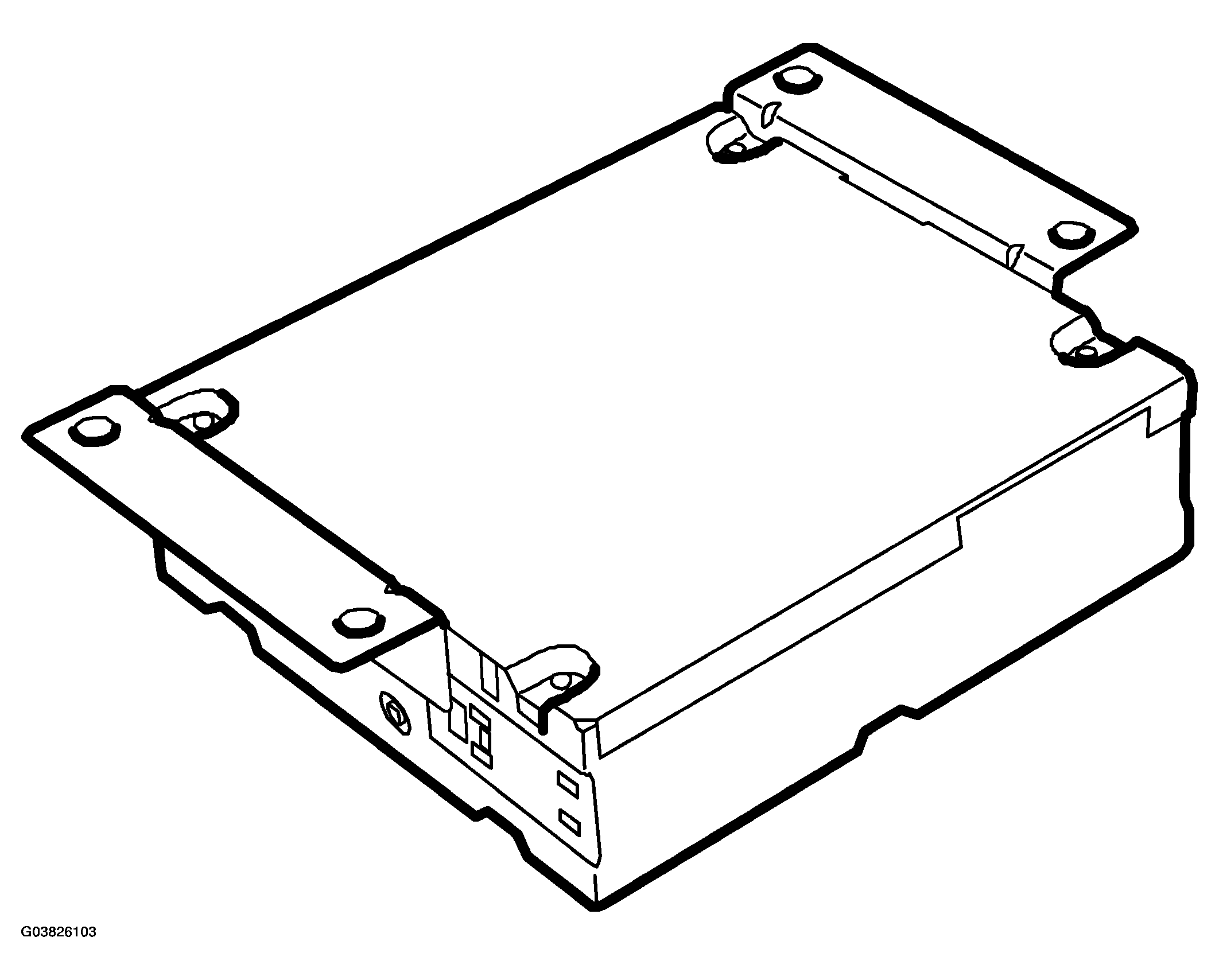

Fig 1: Identifying Navigation Unit
G03826103Courtesy of SAAB-SCANIA OF AMERICA, INC.
NAVIGATION UNIT TECHNICAL DATA

GPS/AMPS antenna Pin no. 1, 2
Microphone Pin no. 4, 5
+30 Pin no. 10
Ground Pin no. 20
O-bus (receiver) O-bus connection 1
O-bus (transmitter) O-bus connection 2
