ESP control module (671)

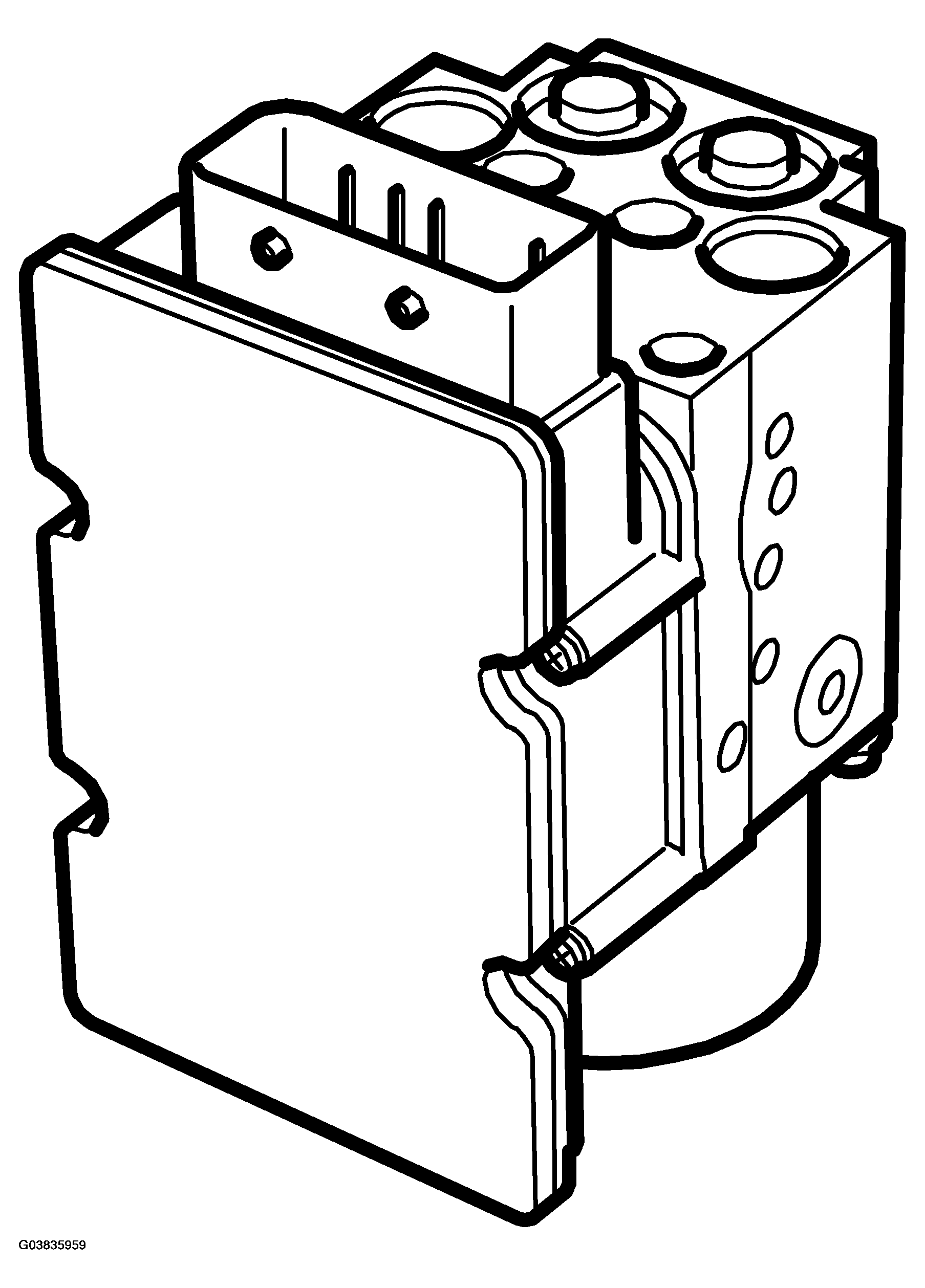

Fig 1: Identifying ESP Control Module
G03835959Courtesy of SAAB-SCANIA OF AMERICA, INC.
ESP CONTROL MODULE TECHNICAL DATA

Control valves inlet 4
  outlet 4
  pressure increase 2
  pressure relief 2
Brake pressure sensor   1
Pump Type Eccentric-plunger pump
  Max pressure 160 bar
