To remove

  1. Remove the floor console.

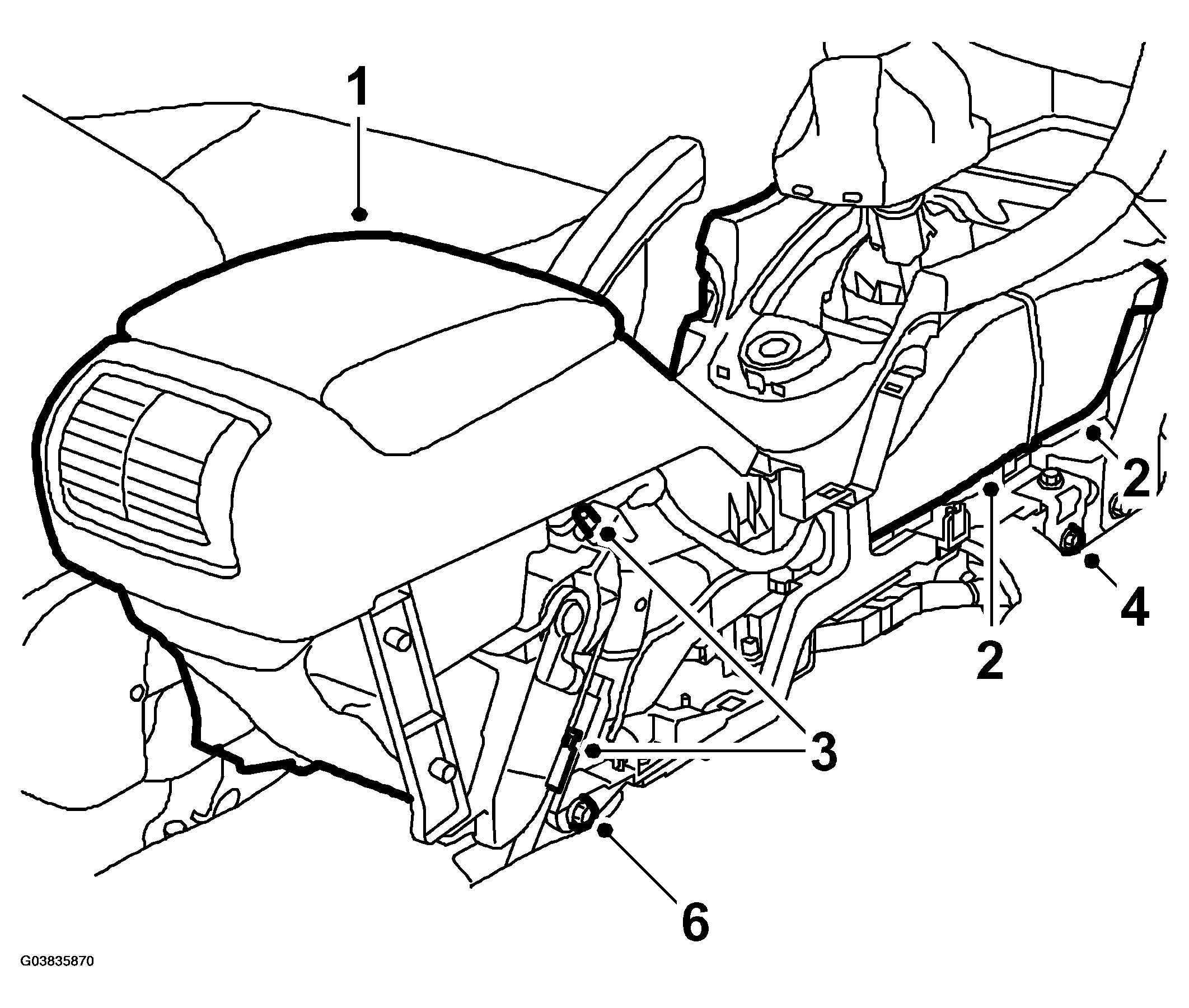

    Fig 1: Illustration For Steps 1, 2, 3, 4 And 6
    G03835870Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the air duct.
  3. Loosen the adjustment and unhook the cables. Remove the cable ferrules from the console.
  4. Move the front seats into their rearmost positions. Mark the position of the front center console bolts. Remove the front bolts.
  5. Move the seats into their forward most position. Remove the rear console bolts.
  6. Lift up the console and remove the gyro sensor and unplug the connector.

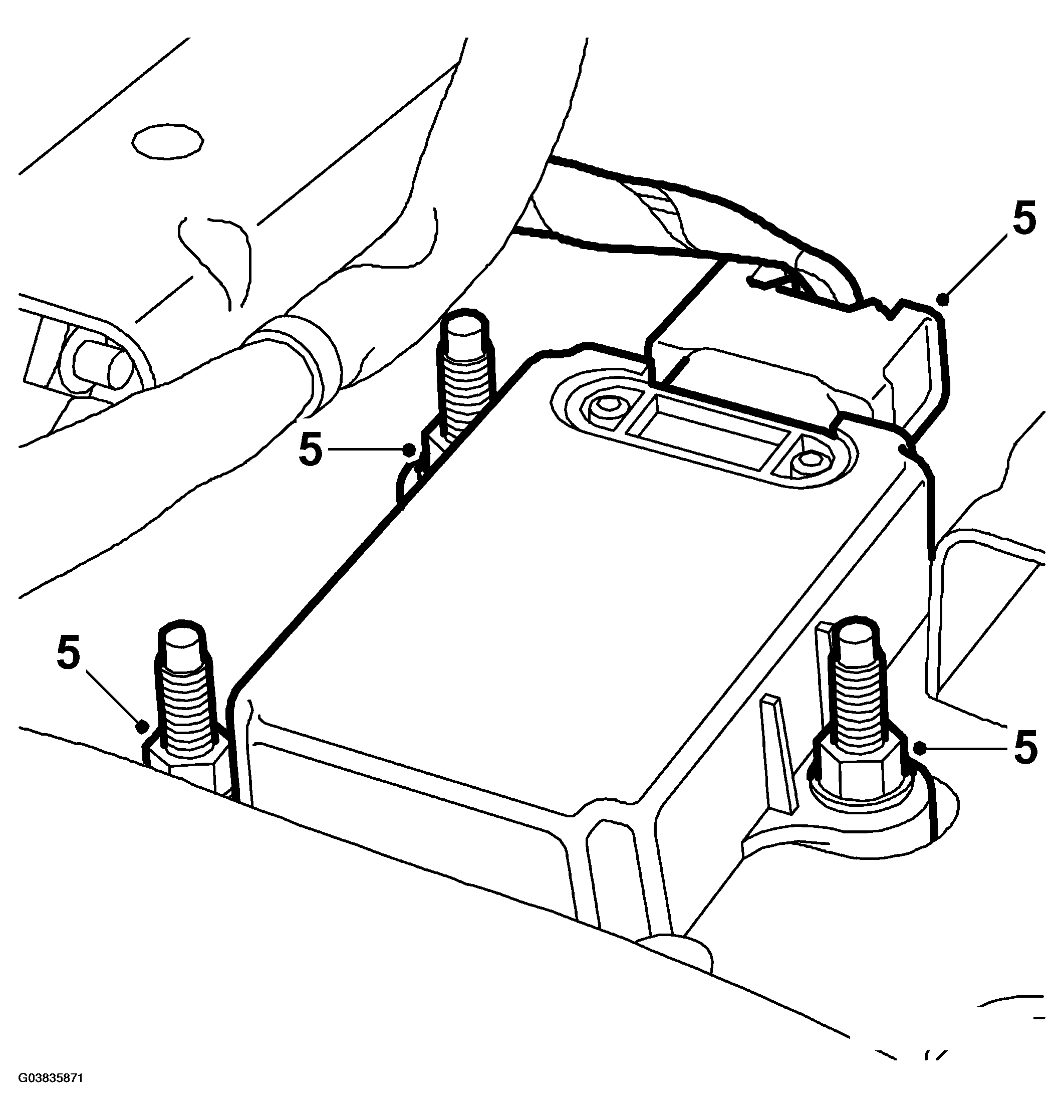

    Fig 2: Illustration For Step 5
    G03835871Courtesy of SAAB-SCANIA OF AMERICA, INC.
