To remove

  1. Fit 82 93 706 WING COVER  .
  2. Drain the brake system as described in BLEEDING THE BRAKE SYSTEM .
  3. Remove the battery and lower part of battery cover.
  4. Unplug the control module.
    IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .

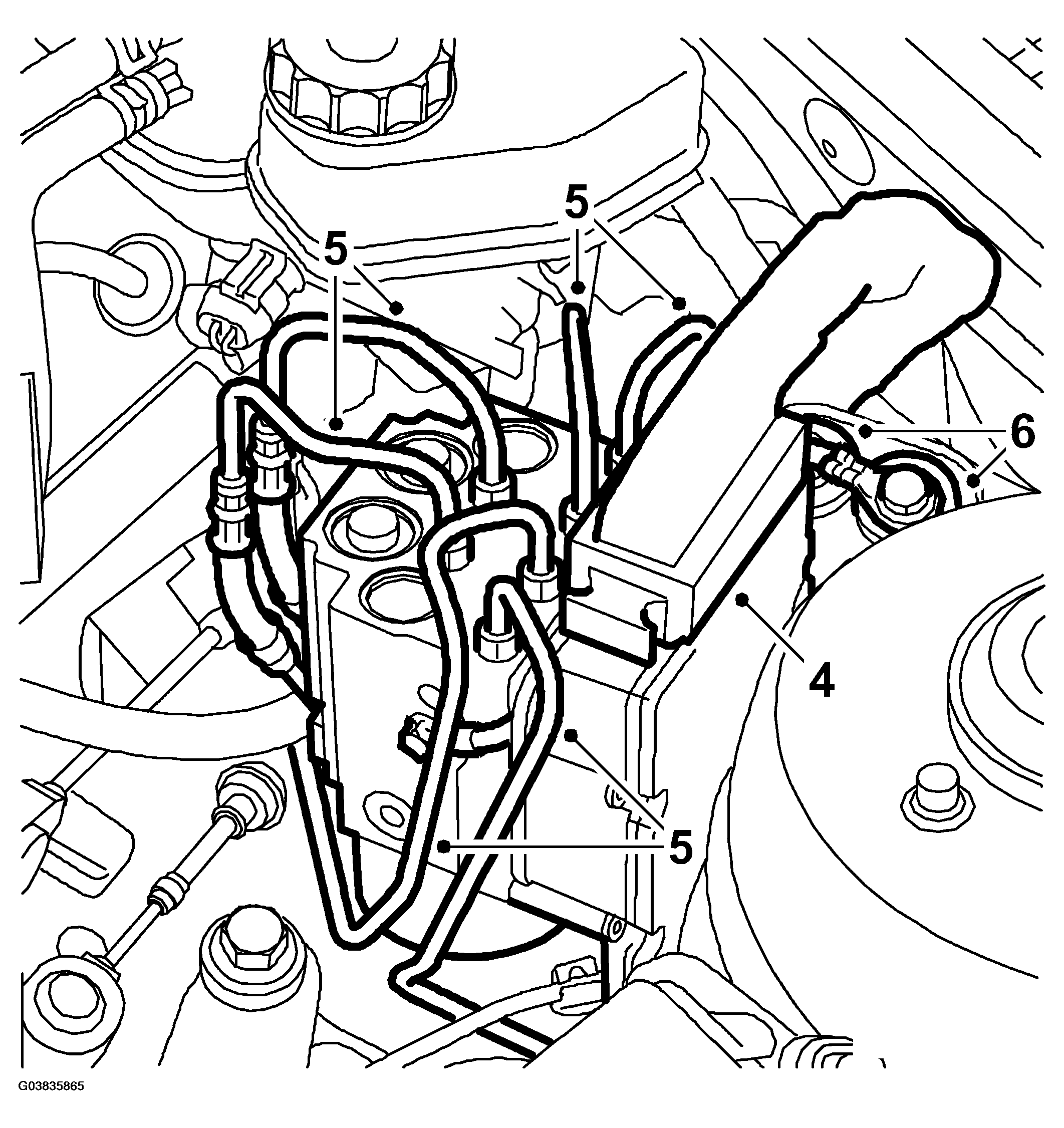

    Fig 1: Illustration For Steps 4-6
    G03835865Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Detach the brake pipes from the unit.
  6. Remove the bracket and the ground lead from the spring strut tower.

    The ground cable has been removed continuously during M05.

    NOTE: Remove the washer between the ground line and spacer.
  7. Lift up the unit.
  8. If changing the hydraulic unit:  Remove the bracket from the unit.

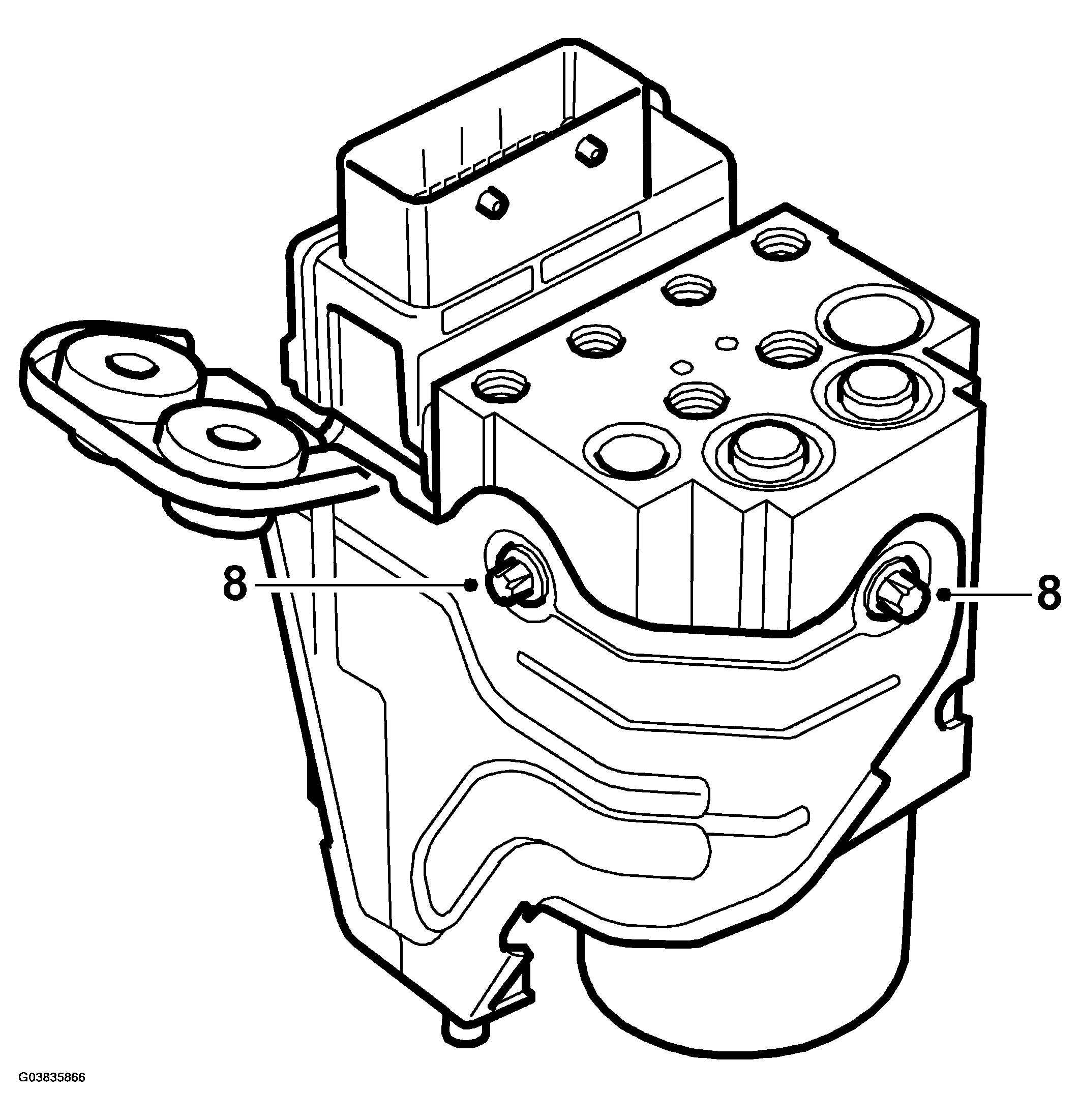

    Fig 2: Illustration For Step 8
    G03835866Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. If changing the hydraulic unit:  Remove the bolts holding the control module to the hydraulic unit.
  10. When changing the hydraulic unit/control module:  Carefully pull the control module away from the hydraulic unit.
